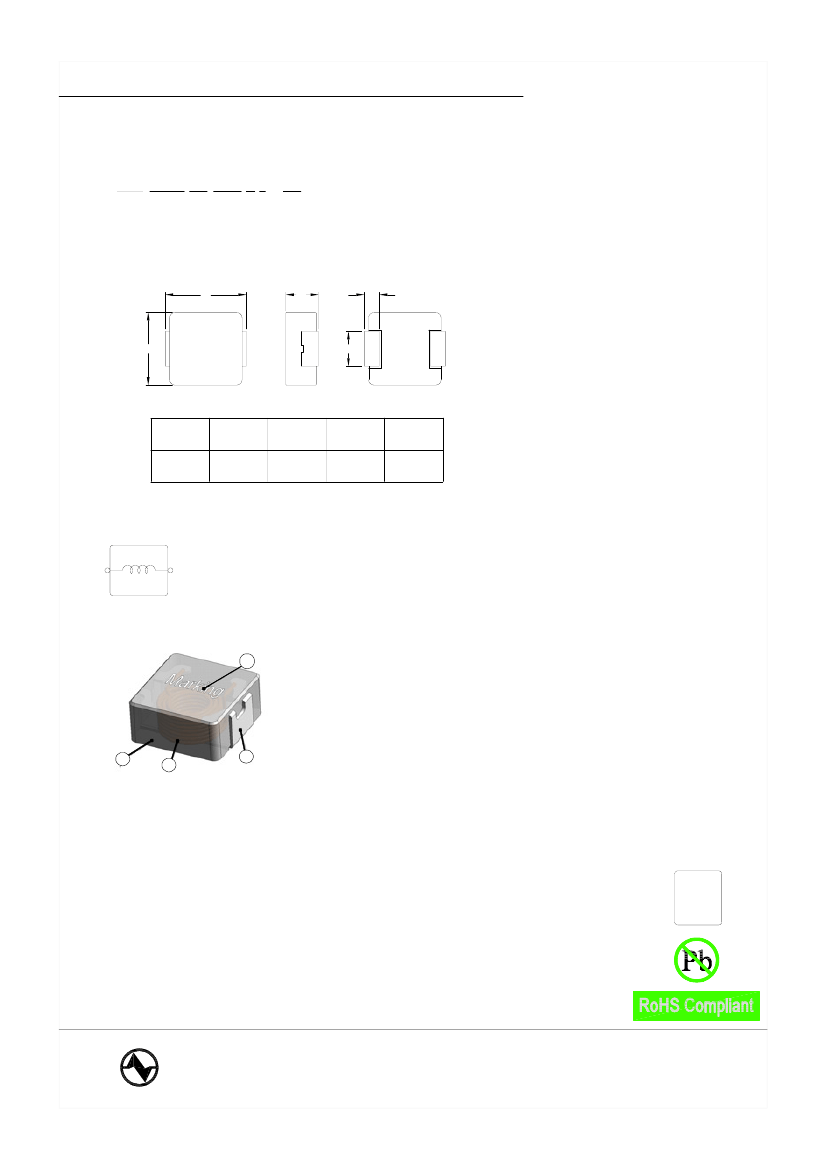

MOLDED POWER CHOKE COIL
1. PART NO. EXPRESSION :
PIC0602H SERIES
PIC0602 H 1R0MN-
(a)
(b)
(c)
(d)
(e)(f)
(g)
(a) Series code
(b) Dimension code
(c) Type code
(d) Inductance code : 1R0 = 1.0uH
(e) Tolerance code : M = ± 20%, Y = ± 30%
(f) No coating
(g) Internal control number : 11 ~ 99
2. CONFIGURATION & DIMENSIONS :
A
C
D
1R0
1104
B
E
Unit:m/m
A
7.0± 0.3
B
6.6± 0.3
C
1.8± 0.2
D
1.8± 0.3
E
3.0± 0.3
3. SCHEMATIC :
4. MATERIALS :
d
(a) Core : Magnetic metal powder or equivalent
(b) Wire : Polyester wire or equivalent
(c) Solder Plating : 100% Pb free solder
(d) Ink : Halogen-free ketone
a
c
b
5. GENERAL SPECIFICATION :
a) Test Freq. : L : 100KHz/1V
b) Ambient Temp. : 25° C
c) Operating Temp. : -40° C to +125° C
d) Storage Temp. : -10° C to +40° C
e) Humidity Range : 50 ~ 60% RH (Product without taping)
f) Heat Rated Current (Irms) : Will cause the coil temp. rise approximately t of 40°C (keep 1min.)
g) Saturation Current (Isat) : Will cause L0 to drop 20% typical (keep quickly)
h) Part Temperature (Ambient+Temp. Rise) : Should not exceed 125° C under worst case operating conditions.
NOTE : Specifications subject to change without notice. Please check our website for latest information.
Halogen
Free
HF
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
MOLDED POWER CHOKE COIL
6. ELECTRICAL CHARACTERISTICS :
Inductance L
0
( µH )
@ 0A
0.10 ± 30%
0.20 ± 30%
0.33 ± 20%
0.47 ± 20%
0.68 ± 20%
1.00 ± 20%
1.50 ± 20%
2.20 ± 20%
3.30 ± 20%
4.70 ± 20%
5.60 ± 20%
6.80± 20%
8.20 ± 20%
10.0 ± 20%
22.0 ± 20%
Irms
(A)
Typ.
21
18
14
11.7
10.5
8.0
7.0
6.0
5.0
4.5
4.0
4.0
3.2
2.8
1.5
Isat
(A)
Typ.
40
35
25
20
16
14
12
10
8.0
7.0
6.0
5.5
5.0
4.0
2.5
PIC0602H SERIES
Part No.
PIC0602HR10YN
PIC0602HR20YN
PIC0602HR33MN
PIC0602HR47MN
PIC0602HR68MN
PIC0602H1R0MN
PIC0602H1R5MN
PIC0602H2R2MN
PIC0602H3R3MN
PIC0602H4R7MN
PIC0602H5R6MN
PIC0602H6R8MN
PIC0602H8R2MN
PIC0602H100MN
PIC0602H220MN
DCR
(m )
Typ. @ 25° C
2.0
2.5
4.5
7.1
8.3
16.5
23
32
43
53
59
63
101
134
236
DCR
(m )
Max. @ 25° C
2.4
3.0
5.0
8.3
10
18
27
37
46
60
68
73
116
154
280

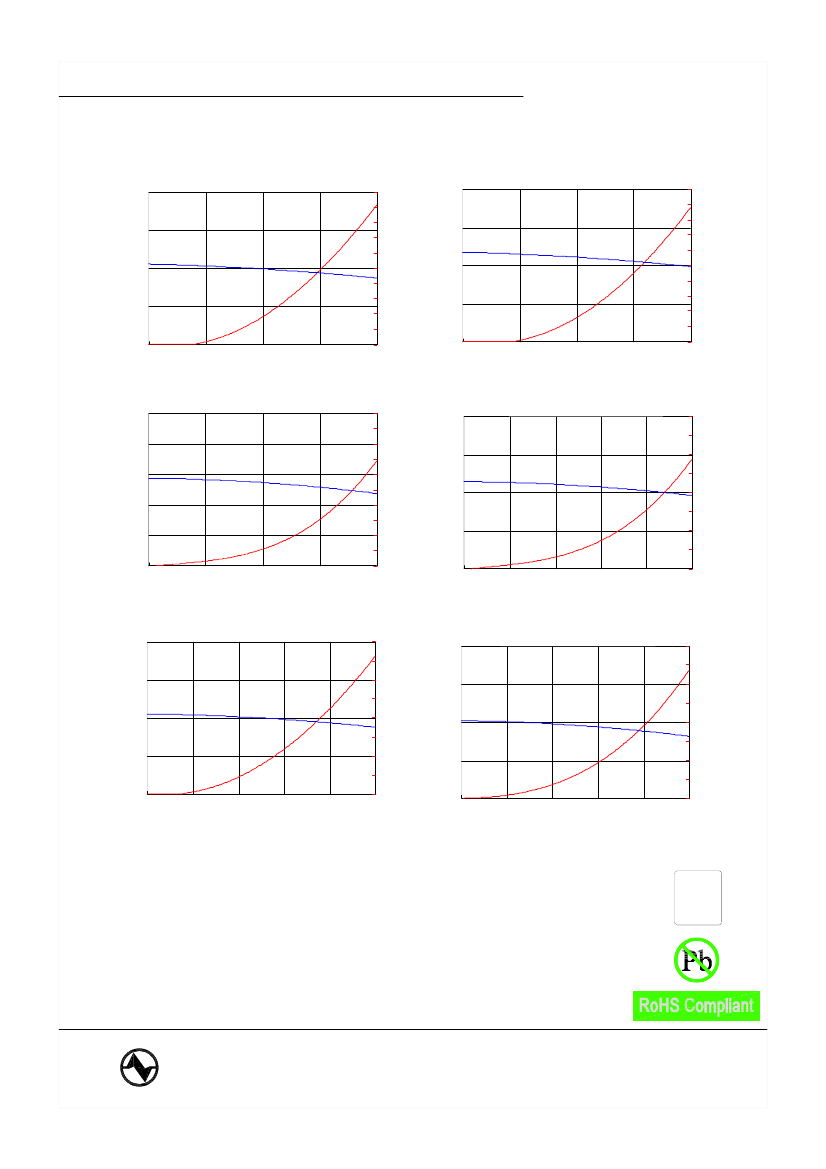

7. CHARACTERISTICS CURVES :
0.2
PIC0602HR10YN
TMPC0602H-R10
150
0.4
PIC0602HR20YN
TMPC0602H-R20
100
90
0.16
120
80
INDUCTANCE (uH)
INDUCTANCE (uH)
0.3
0.12
90
60
0.2
50
40
30
0.1
20
10
0.08
60
0.04
30
0
0
0
0
0
10
20
30
40
0
7
14
21
28
35
DC CURRENT(A)
DC CURRENT (A)
Halogen
Free
HF
NOTE : Specifications subject to change without notice. Please check our website for latest information.
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
70

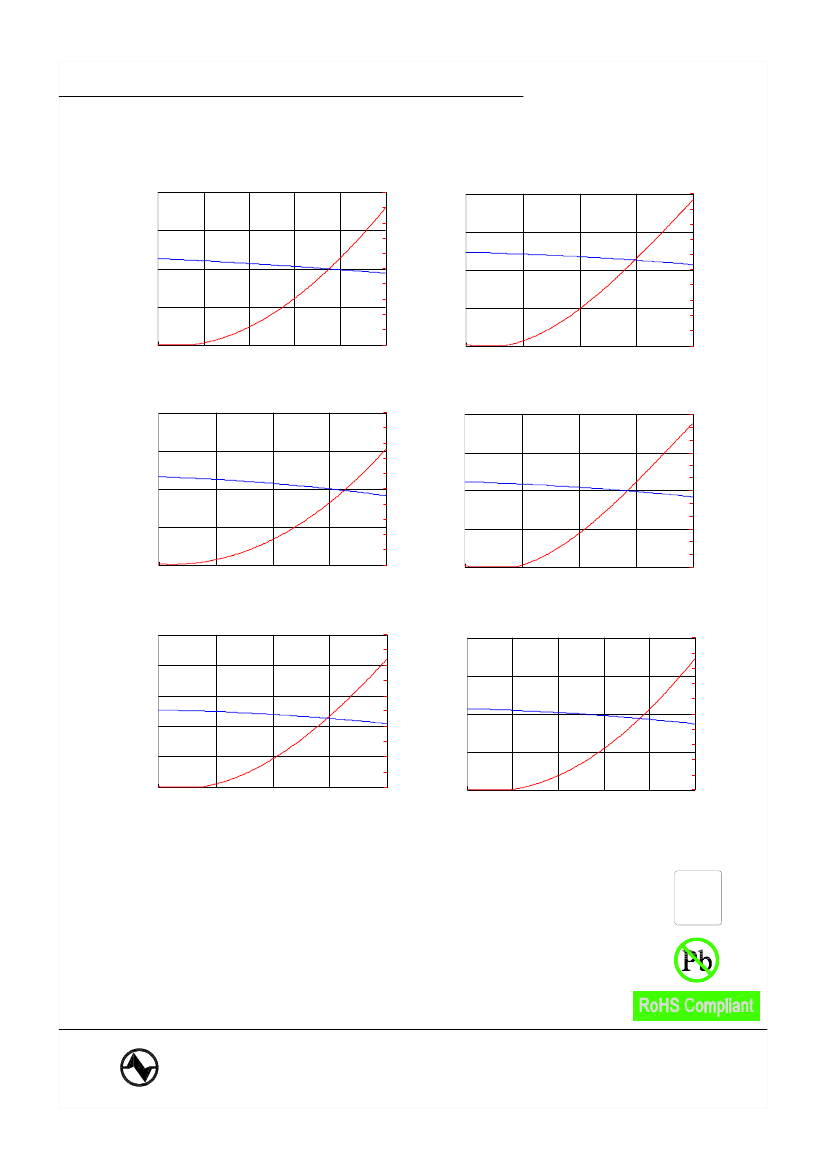

MOLDED POWER CHOKE COIL
7. CHARACTERISTICS CURVES :
PIC0602HR33MN
TMPC0602H-R33
PIC0602H SERIES
0.6
100
90
80
0.8
PIC0602HR47MN
TMPC0602H-R47
100
90
80
0.45
INDUCTANCE (uH)
TEMP. RISE(
o
C)
60
0.3
50
40
30
0.15
20
10
0
0
60
0.4
50
40
30
0.2
20
10
0
0
0
5
10
15
20
25
DC CURRENT(A)
0
5
10
15
20
DC CURRENT(A)
1.2
PIC0602HR68MN
TMPC0602H-R68
100
90
80
2
PIC0602H1R0MN
TMPC0602H-1R0
120
110
100
INDUCTANCE (uH)
0.9
INDUCTANCE (uH)
TEMP. RISE(
o
C)
80
70
1
60
50
40
0.5
30
20
60
0.6
50
40
30
0.3
20
10
0
0
10
0
0
0
4.5
9
13.5
18
DC CURRENT (A)
0
4
8
12
16
DC CURRENT (A)
3
PIC0602H1R5MN
TMPC0602H-1R5
100
90
4
PIC0602H2R2MN
TMPC0602H-2R2
100
90
80
2.4
80
INDUCTANCE (uH)
INDUCTANCE (uH)
TEMP. RISE(
o
C)
70
1.8
60
50
1.2
40
30
0.6
20
10
0
0
3
60
2
50
40
30
1
20
10
0
0
0
3
6
9
12
DC CURRENT(A)
0
2
4
6
8
10
DC CURRENT(A)
Halogen
Free
HF
NOTE : Specifications subject to change without notice. Please check our website for latest information.
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
TEMP. RISE(
o
C)
70
TEMP. RISE(
o
C)
70
1.5
90
TEMP. RISE(
o
C)
70
INDUCTANCE (uH)
0.6
70
MOLDED POWER CHOKE COIL
7. CHARACTERISTICS CURVES :
PIC0602H3R3MN
TMPC0602H-3R3
PIC0602H SERIES
6
100
90
80
8
PIC0602H4R7MN
TMPC0602H-4R7
100
90
80
INDUCTANCE (uH)
INDUCTANCE (uH)
4.5
6
TEMP. RISE(
o
C)
60
3
50
40
30
1.5
20
10
0
0
60
4
50
40
30
2
20
10
0
0
0
2
4
6
8
0
1.75
3.5
5.25
7
DC CURRENT (A)
DC CURRENT(A)
10
PIC0602H5R6MN
TMPC0602H-5R6
100
90
12
PIC0602H6R8MN
TMPC0602H-6R8
80
70
8
80
INDUCTANCE (uH)
INDUCTANCE (uH)
TEMP. RISE(
o
C)
70
6
60
50
4
40
30
2
20
10
0
0
9
60
50
6
40
30
3
20
10
0
1.5
3
4.5
6
0
0
DC CURRENT(A)
0
1.1
2.2
3.3
4.4
5.5
DC CURRENT(A)
16
PIC0602H3R3MN
TMPC0602H-8R2
80
70
20
PIC0602H100MN
TMPC0602H-100
80
70
INDUCTANCE (uH)
12
60
INDUCTANCE (uH)
15
60
50
TEMP. RISE(
o
C)
50
8
40
30
4
20
10
0
0
10
40
30
5
20
10
0
1
2
3
4
5
0
0
DC CURRENT (A)
0
0.9
1.8
2.7
3.6
4.5
DC CURRENT(A)
Halogen
Free
HF
NOTE : Specifications subject to change without notice. Please check our website for latest information.
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
70
70
MOLDED POWER CHOKE COIL
7. CHARACTERISTICS CURVES :
PIC0602H220MN
TMPC0602H-220
PIC0602H SERIES
40
60
50
INDUCTANCE (uH)
30
40
20
30
20
10
10
0
0
0
0.5
1
1 .5
2
2.5
DC CURRENT(A)
TEMP. RISE(
o
C)
Halogen
Free
HF
NOTE : Specifications subject to change without notice. Please check our website for latest information.
25.02.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
