KFS11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KFS11

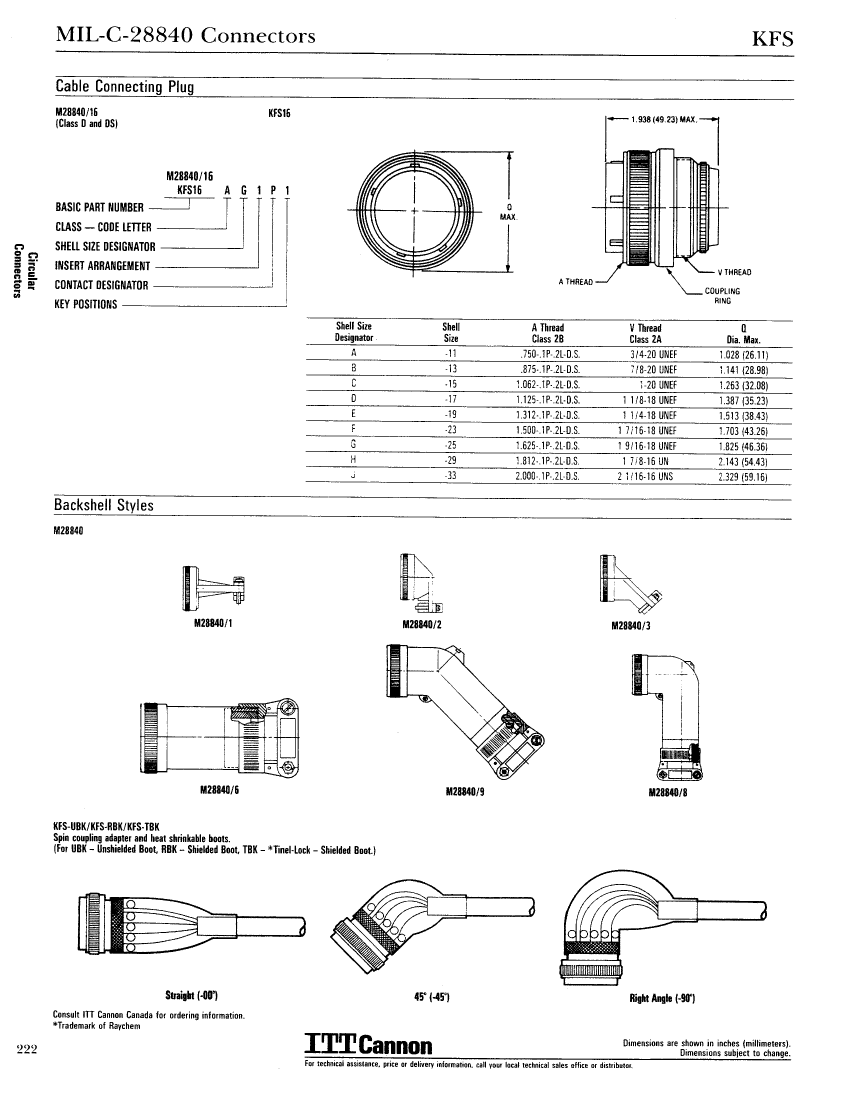

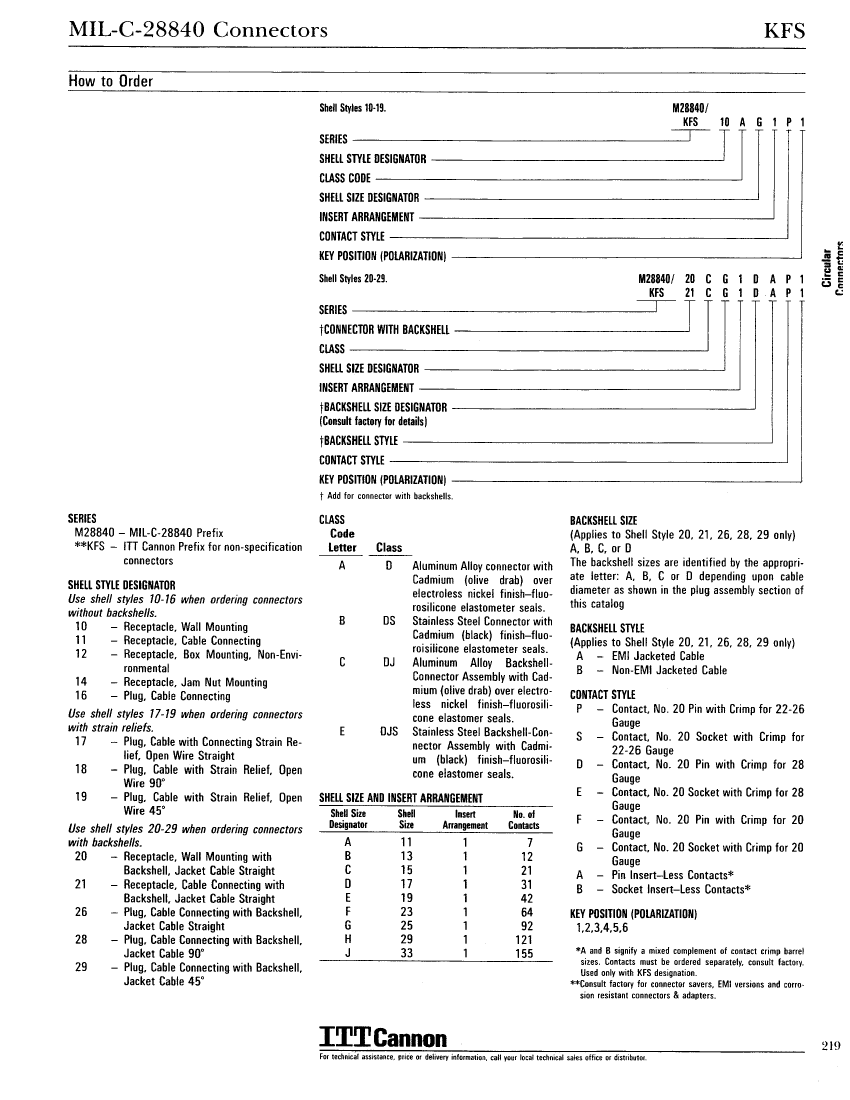

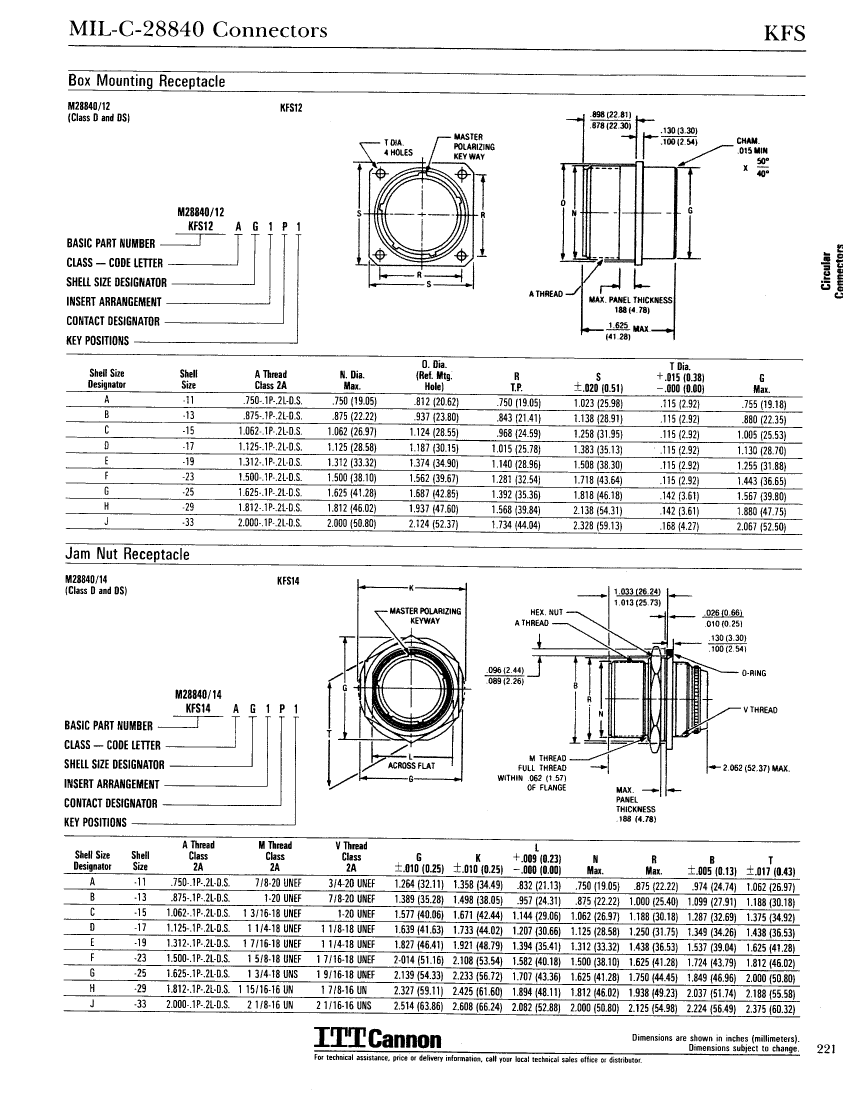

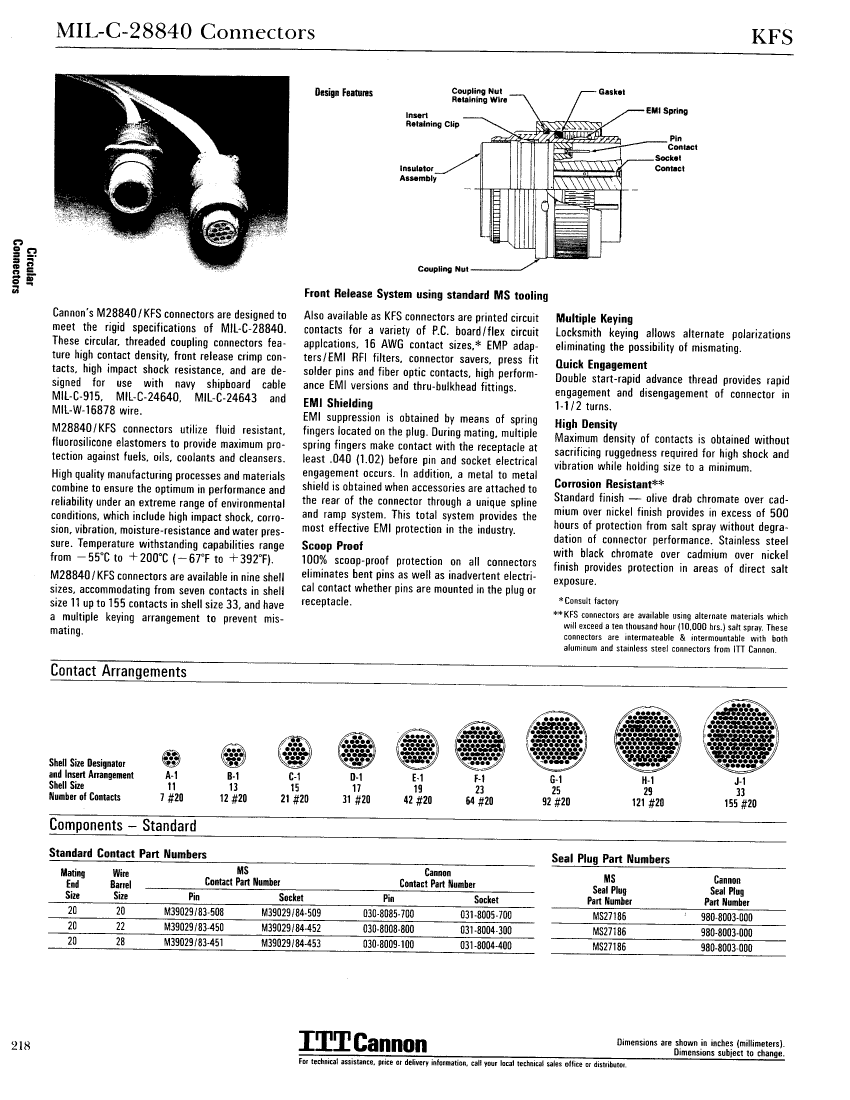

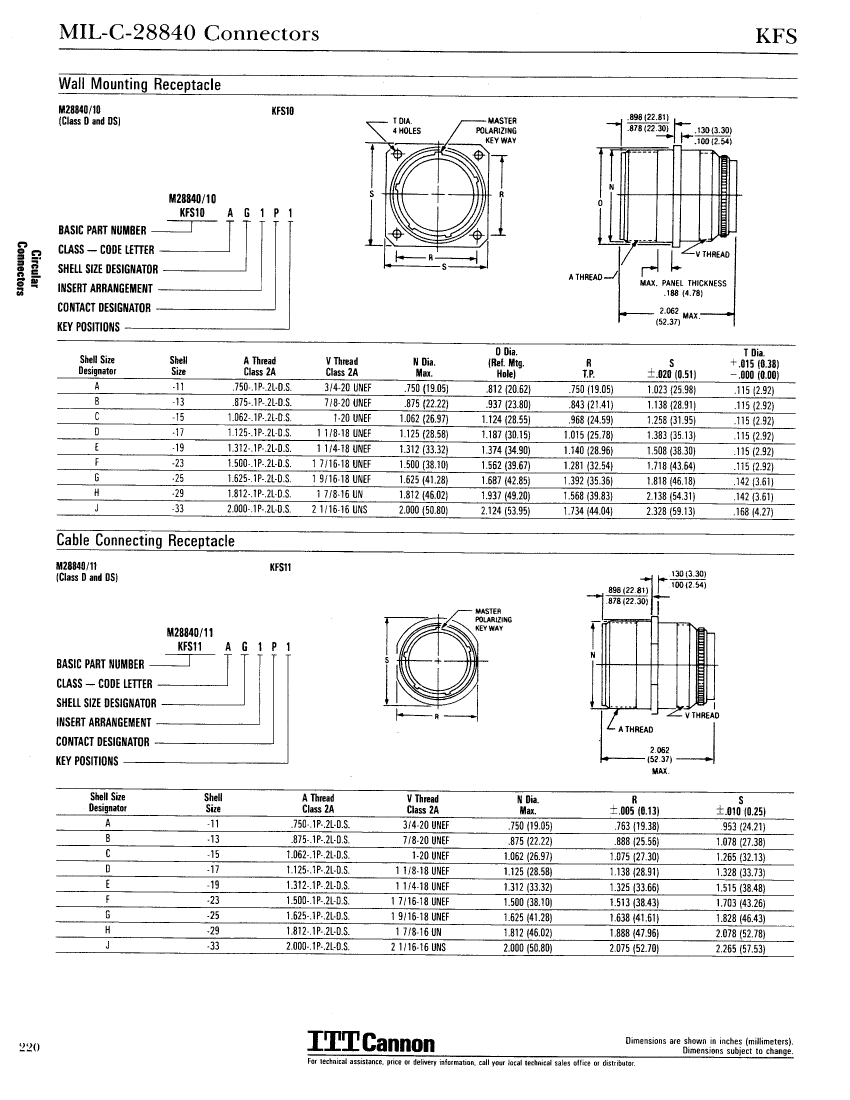

KFS11: DescriptionMIL Series Connector, Aluminum Alloy; Steel, Female; Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size433KB，6 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

KFS11 Overview

MIL Series Connector, Aluminum Alloy; Steel, Female; Male, Crimp Terminal, Receptacle

KFS11 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD:MIL-C-28840; EMI SHIELDED, MAX CONTACTS (SERIES)=155
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE; MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	KFS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM; OLIVE DRAB CADMIUM OVER ELECTROLESS NICKEL
Shell material	ALUMINUM; STEEL
Housing size	11; 13; 15; 17; 19; 23; 25; 29; 33
Termination type	CRIMP

KFS11 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KFS11 Related Products

	KFS11	M28840/28	KFS12	KFS14	KFS18	KFS21
Description	MIL Series Connector, Aluminum Alloy; Steel, Female; Male, Crimp Terminal, Receptacle	MIL Series Connector, Aluminum Alloy; Steel, Female; Male, Crimp Terminal, Plug	MIL Series Connector, Aluminum Alloy; Steel, Female; Male, Crimp Terminal, Receptacle	MIL Series Connector, Aluminum Alloy; Steel, Female; Male, Crimp Terminal, Receptacle	MIL Series Connector, Aluminum Alloy; Steel, Female; Male, Crimp Terminal, Plug	MIL Series Connector, Aluminum Alloy; Steel, Female; Male, Crimp Terminal, Receptacle
Maker	ITT	ITT	ITT	ITT	ITT	ITT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD:MIL-C-28840; EMI SHIELDED, MAX CONTACTS (SERIES)=155	STANDARD: MIL-C-28840, COMPATIBLE CONTACTS: M39029/83-508; M39029/83-450; M39029/83-451, MAX CONTACTS (SERIES)=155	STANDARD:MIL-C-28840; EMI SHIELDED, MAX CONTACTS (SERIES)=155	STANDARD:MIL-C-28840; EMI SHIELDED, MAX CONTACTS (SERIES)=155	STANDARD:MIL-C-28840; EMI SHIELDED, MAX CONTACTS (SERIES)=155	STANDARD:MIL-C-28840; EMI SHIELDED, MAX CONTACTS (SERIES)=155
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact point gender	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Environmental characteristics	ENVIRONMENT RESISTANT; CORROSION RESISTANT	CORROSION RESISTANT	ENVIRONMENT RESISTANT; CORROSION RESISTANT	ENVIRONMENT RESISTANT; CORROSION RESISTANT	ENVIRONMENT RESISTANT; CORROSION RESISTANT	ENVIRONMENT RESISTANT; CORROSION RESISTANT
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	KFS	M28840	KFS	KFS	KFS	KFS
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE AND PANEL	CABLE AND PANEL	CABLE	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM; OLIVE DRAB CADMIUM OVER ELECTROLESS NICKEL	CADMIUM OVER ELECTROLESS NICKEL; CADMIUM	CADMIUM; OLIVE DRAB CADMIUM OVER ELECTROLESS NICKEL	CADMIUM; OLIVE DRAB CADMIUM OVER ELECTROLESS NICKEL	CADMIUM; OLIVE DRAB CADMIUM OVER ELECTROLESS NICKEL	CADMIUM; OLIVE DRAB CADMIUM OVER ELECTROLESS NICKEL
Shell material	ALUMINUM; STEEL	ALUMINUM; STEEL	ALUMINUM; STEEL	ALUMINUM; STEEL	ALUMINUM; STEEL	ALUMINUM; STEEL
Housing size	11; 13; 15; 17; 19; 23; 25; 29; 33	11; 13; 15; 17; 19; 23; 25; 29; 33	11; 13; 15; 17; 19; 23; 25; 29; 33	11; 13; 15; 17; 19; 23; 25; 29; 33	11; 13; 15; 17; 19; 23; 25; 29; 33	11; 13; 15; 17; 19; 23; 25; 29; 33
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
