SMD POWER INDUCTORS
1. PART NO. EXPRESSION :
SPB0703 SERIES
(e) Z : Standard part
(f) F : RoHS Compliant
(g) 11 ~ 99 : Internal controlled number
SPB0703100MZF-
(a)
(b)
(c) (d)(e)(f)
(g)
(a) Series code
(b) Dimension code
(c) Inductance code : 100 = 10uH
(d) Tolerance code : M = ±20%, Y = ±30%

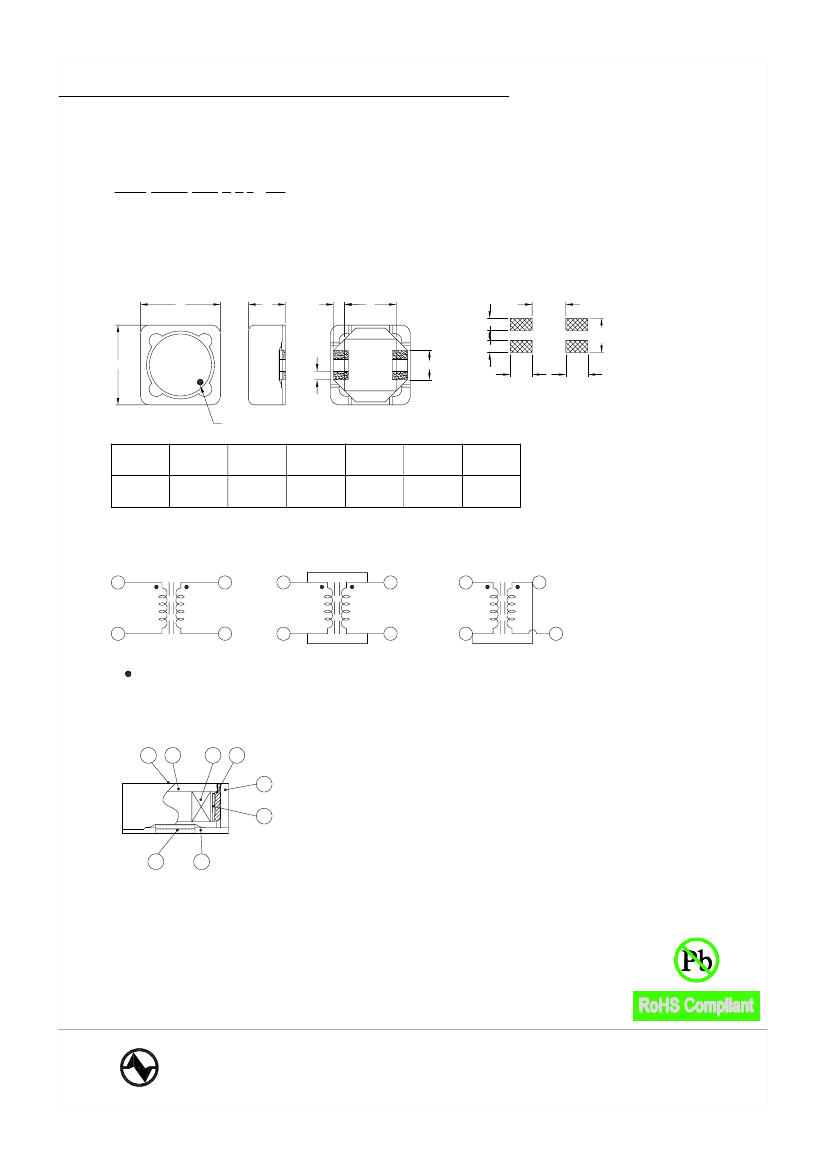

2. CONFIGURATION & DIMENSIONS :
A
C
0.90
E
F
4.30
D1
2
1
3
D
B
0.90
4
1.45
1.45
PCB Pattern
White dot on Pin 1 side
A
B
C
D
2.70 Ref.
D1
0.70 Ref.
E
1.25 Ref.
Unit:m/m
F
4.50 Ref.
7.30±0.20 7.30±0.20 3.50 Max.
3. SCHEMATIC :
1
N1
3
"
" Polarity
N2
4
3
( Parallel )
2
1
N1
N2
4
2
1
N1
3
( Series )
2
N2
4
4. MATERIALS :
(a) Core : DR Ferrite Core
h
a
d
g
b
e
(b) Core : RI Ferrite Core
(c) Base : LCP-E4008
(d) Wire : Enamelled Copper Wire
(e) Tape : #56
(f) Terminal : Tinned Copper Plate
f
c
(g) Adhesive : Epoxy Resin
(h) Ink : Bon Marque
NOTE : Specifications subject to change without notice. Please check our website for latest information.
2.9
100
20.07.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
SMD POWER INDUCTORS
5. GENERAL SPECIFICATION :
a) L/L0A : 30% Typ. at Isat
b) Temp. Rise : 40°C Typ. at Irms
c) Hi-Pot (N1-N2) : 200Vac / 3mA / 1sec
d) Operating temp. : -40°C to +125°C
e) Storage temp. : -40°C to +125°C
f) Resistance to solder heat : 260°C.10secs
SPB0703 SERIES
6. ELECTRICAL CHARACTERISTICS :
Inductance
( µH )
Ref.
1.00
1.50
2.20
3.30
4.70
6.80
8.20
10.0
15.0
22.0
33.0
47.0
68.0
82.0
100
150
220
330
470
680
820
1000
Test
Frequency
( Hz )
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
0.25V/100K
Inductance
( µH )
Ref.
0.992
1.482
2.070
3.540
4.422
6.480
8.930
10.30
15.01
22.65
34.41
48.62
69.91
80.37
101.4
150.9
223.3
325.5
465.8
676.5
821.7
995.0
Parallel
RDC
Isat
( )
(A)
Max.
0.0104
0.0130
0.0210
0.0283
0.0366
0.0558
0.0591
0.0800
0.1099
0.1620
0.2300
0.3156
0.4404
0.5772
0.8352
1.5360
1.6608
2.6952
3.3504
5.3967
6.0912
9.3492
7.97
6.52
5.52
4.22
3.78
3.12
2.66
2.47
2.05
1.67
1.35
1.14
0.96
0.89
0.79
0.65
0.53
0.44
0.37
0.31
0.28
0.25
Series
Irms
(A)
5.25
4.64
4.11
3.31
3.09
2.55
2.19
2.08
1.83
1.62
1.31
1.03
0.89
0.71
0.63
0.50
0.47
0.37
0.34
0.25
0.23
0.19
Inductance
( µH )
Ref.
3.968
5.928
8.280
14.16
17.69
25.92
35.72
41.20
60.04
90.60
137.6
194.5
275.6
321.5
405.6
603.6
893.2
1302
1863
2706
3287
3980
RDC
( )
Max.
0.0430
0.0494
0.0676
0.1148
0.1561
0.2292
0.2390
0.3276
0.4380
0.6528
0.9180
1.2552
1.7532
2.3418
3.3912
6.0516
6.7212
10.670
13.704
21.297
24.312
37.008
Isat
(A)
3.99
3.26
2.76
2.11
1.89
1.56
1.33
1.24
1.03
0.83
0.68
0.57
0.48
0.44
0.39
0.32
0.27
0.22
0.18
0.15
0.14
0.13
Irms
(A)
2.630
2.320
2.060
1.660
1.550
1.280
1.100
1.040
0.916
0.811
0.653
0.500
0.444
0.351
0.312
0.245
0.232
0.185
0.168
0.123
0.112
0.093
Part No.
SPB07031R0YZF-
SPB07031R5YZF-
SPB07032R2YZF-
SPB07033R3YZF-
SPB07034R7YZF-
SPB07036R8YZF-
SPB07038R2YZF-
SPB0703100MZF-
SPB0703150MZF-
SPB0703220MZF-
SPB0703330MZF-
SPB0703470MZF-
SPB0703680MZF-
SPB0703820MZF-
SPB0703101MZF-
SPB0703151MZF-
SPB0703221MZF-
SPB0703331MZF-
SPB0703471MZF-
SPB0703681MZF-
SPB0703821MZF-
SPB0703102MZF-
Tolerance code : M = ±20%
Y = ±30%
NOTE : Specifications subject to change without notice. Please check our website for latest information.
20.07.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
SMD POWER INDUCTORS

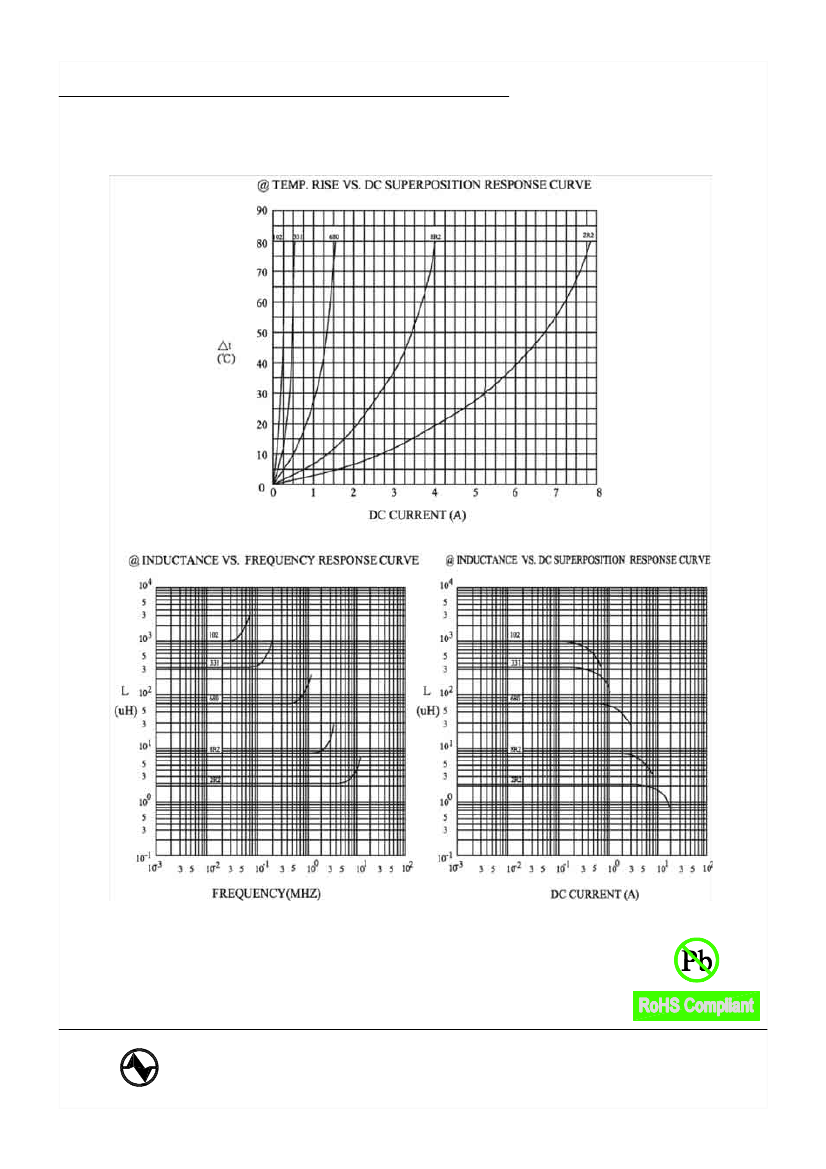

7. CHARACTERISTICS CURVES :
( PARALLEL )
SPB0703 SERIES
NOTE : Specifications subject to change without notice. Please check our website for latest information.
20.07.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
SMD POWER INDUCTORS

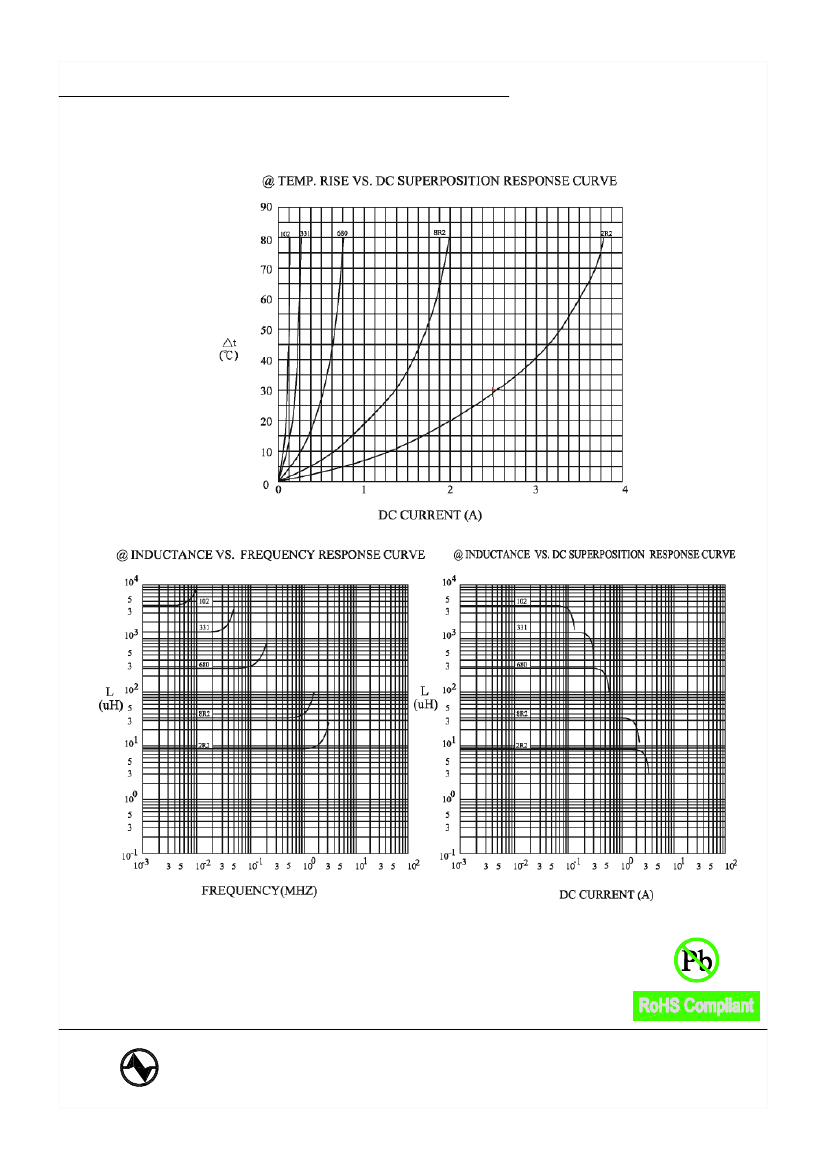

7. CHARACTERISTICS CURVES :
( SERIES )
SPB0703 SERIES
NOTE : Specifications subject to change without notice. Please check our website for latest information.
20.07.2011
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
SMD POWER INDUCTORS
SPB0703 SERIES
10s max.
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERINGS
255°C
230°C
180°C
150°C
Pre-heating
40s max.
Natural
cooling
90 to 120s

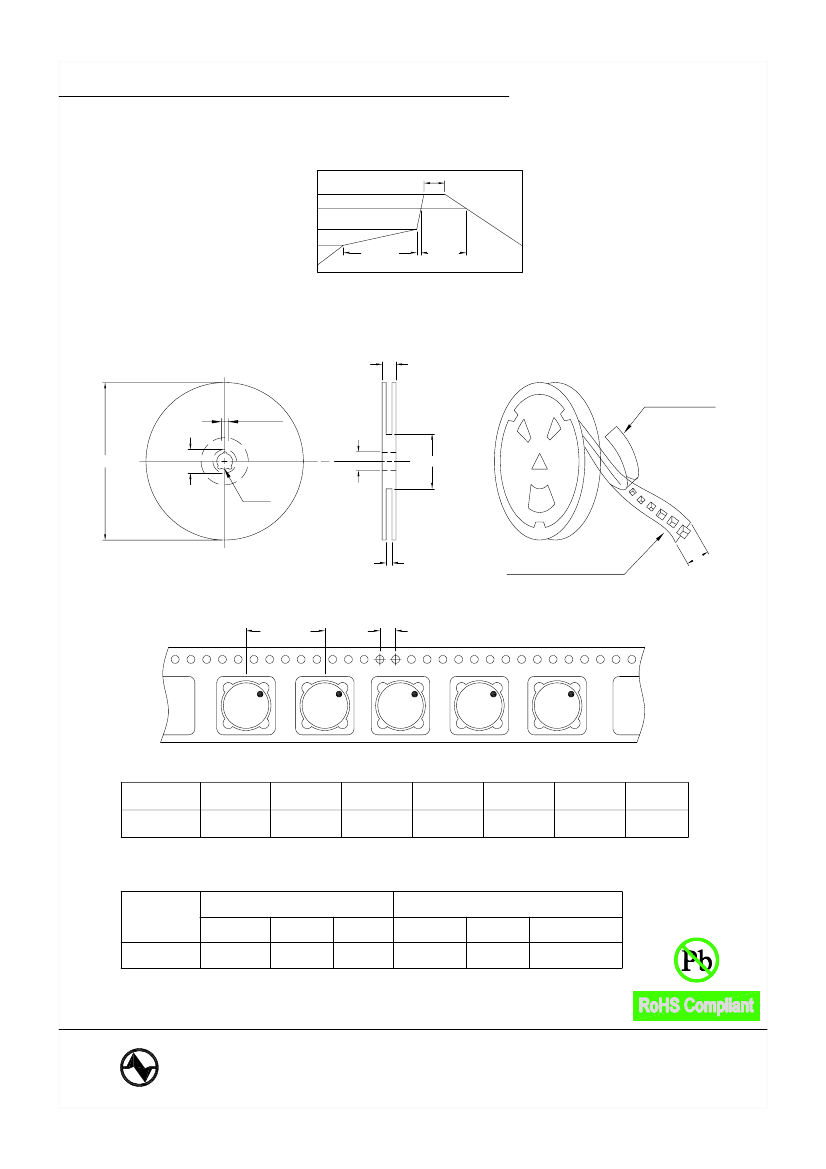

8. PACKAGING INFORMATION :
( 1 ) CONFIGURATION
T
COVER TAPE
2.0±0.5
ØC
ØC
N
A
B
D
G
EMBOSSED CARRIER
* CARRIER TAPE WIDTH : D
P:12 m/m
4 m/m
100
( 2 ) DIMENSIONS
STYLE
13-16
A
330
B
( 3 ) Q'TY & G.W. PER PACKAGE
SERIES
SPB0703
Q'TY (PCS)
1350
21±0.8
INNER : REEL
G.W. (Kg
1.115
STYLE
13-16
NOTE : Specifications subject to change without notice. Please check our website for latest information.
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
100
C
13
100
D
16
Q'TY (PCS)
8100
OUTER : CARTON
G.W. (Kg)
8.40
SIZE (cm)
38 x 36.5 x 21
100
G
18
+0
100
Unit:m/m
N
50
-0
T
22.4
20.07.2011
