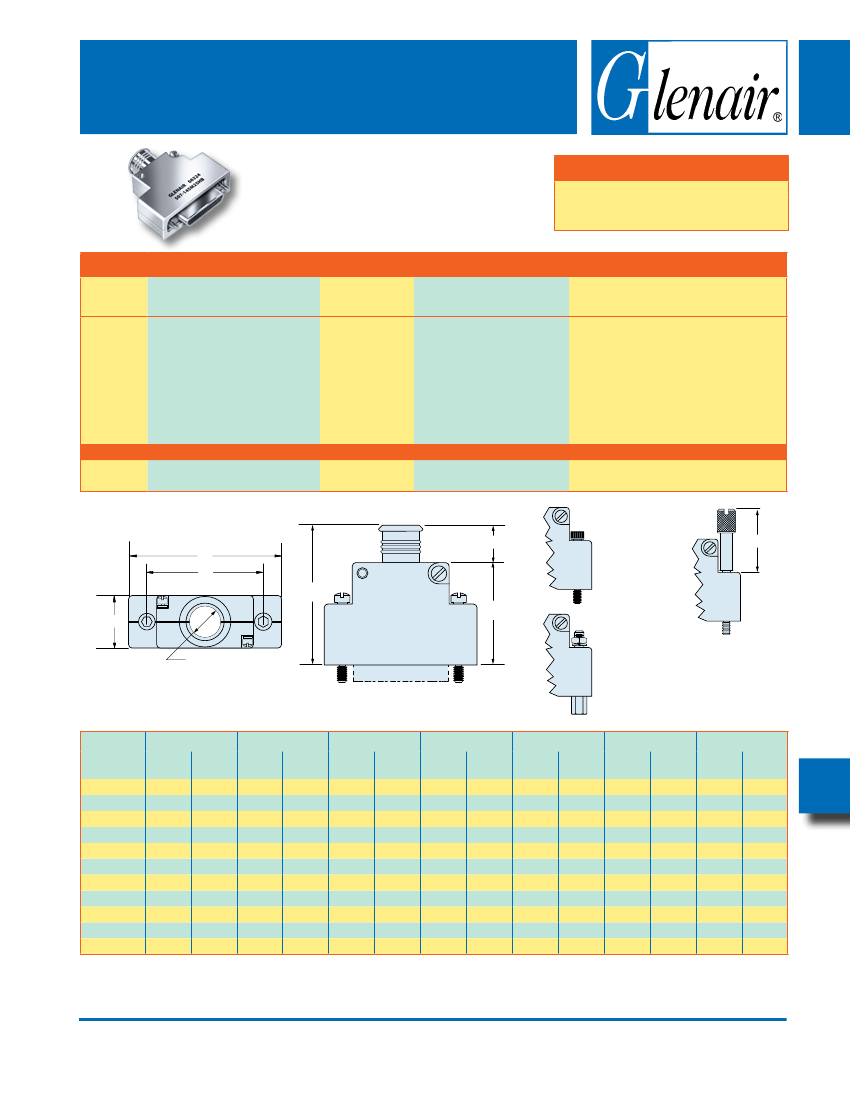

507-145NF100HB: DescriptionEMI/RFI Split Shell Banding Backshell; File Size167KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

507-145NF100HB Overview

EMI/RFI Split Shell Banding Backshell

Preview

Download Datasheet

View All

507-145

Split EMI Backshells

allow installation on

wired connector assemblies.

Captive Screwlocks

for fast connection. Plug in

the connector, then fasten the hardware.

MATERIALS

Shell

Clips

Hardware

Aluminum Alloy 6061 -T6

17-7PH Stainless Steel

300 Series Stainless Steel

HOW TO ORDER 507-145 SPLIT BACKSHELLS

Series

507-145

E

J

M

NF

Z2

Shell Finish

–

Chem Film

–

Cadmium, Yellow Chromate

–

Electroless Nickel

–

Cadmium, Olive Drab

–

Gold

Connector Size

09

15

21

25

31

37

51

51-2

67

69

100

Hardware Option

Omit

for Fillister Head

Screwlock

EMI Band Strap Option

Omit (Leave Blank)

Band Not Included

H

–

Hex Head Screwlock

E

–

Extended Screwlock

F

–

Jackpost, Female

B

– Micro Band Supplied

K

– Coiled Micro Band Supplied

Sample Part Number

507-145

M

25

H

.32 (8.1)

A

C

E

B

F

CODE H

HEX HEAD

SCREWLOCK

G

CODE B

FILLISTER HEAD

JACKSCREW

ØD

CODE F

FEMALE

JACKPOST

CODE E

EXTENDED

SCREWLOCK

A Max.

Size

09

15

21

25

31

37

51

51-2

67

69

100

B Max.

In.

.450

.495

.450

.495

.540

C

In.

.565

.715

.865

.965

1.115

1.265

1.215

1.615

2.015

1.515

1.800

In.

.915

1.065

1.215

1.315

1.465

1.615

1.565

1.965

2.365

1.865

2.305

mm.

23.24

27.05

30.86

33.40

37.21

41.02

39.75

48.91

60.07

47.37

58.55

mm.

11.43

12.57

11.43

12.57

13.72

mm.

14.35

18.16

21.97

24.51

28.32

32.13

30.86

41.02

51.18

38.48

45.72

In.

± .010

.160

.190

.220

.260

.275

.285

.350

.285

.350

.490

D

mm.

± 0.25

4.06

4.83

5.59

6.60

6.99

7.24

8.89

7.24

8.89

12.45

E Max.

In.

1.033

1.096

1.127

1.190

1.221

1.283

1.346

1.408

F Max.

In.

.721

.783

.815

.877

.908

.971

1.033

1.096

G Max.

In.

.554

.617

.649

.711

.722

.785

.867

.930

mm.

26.24

27.84

28.63

30.23

31.01

32.59

34.19

35.76

mm.

18.31

19.89

20.70

22.28

23.06

24.66

26.24

27.83

mm.

14.07

15.67

16.48

18.06

18.34

19.94

22.02

23.62

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

M-17

Micro-D

Backshells

EMI/RFI Split Shell Banding Backshell
