507-146NF31HC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 507-146NF31HC

Preview

507-146NF31HC: DescriptionStrain Relief Backshell; File Size175KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

507-146NF31HC Overview

Strain Relief Backshell

Preview

Download Datasheet

View All

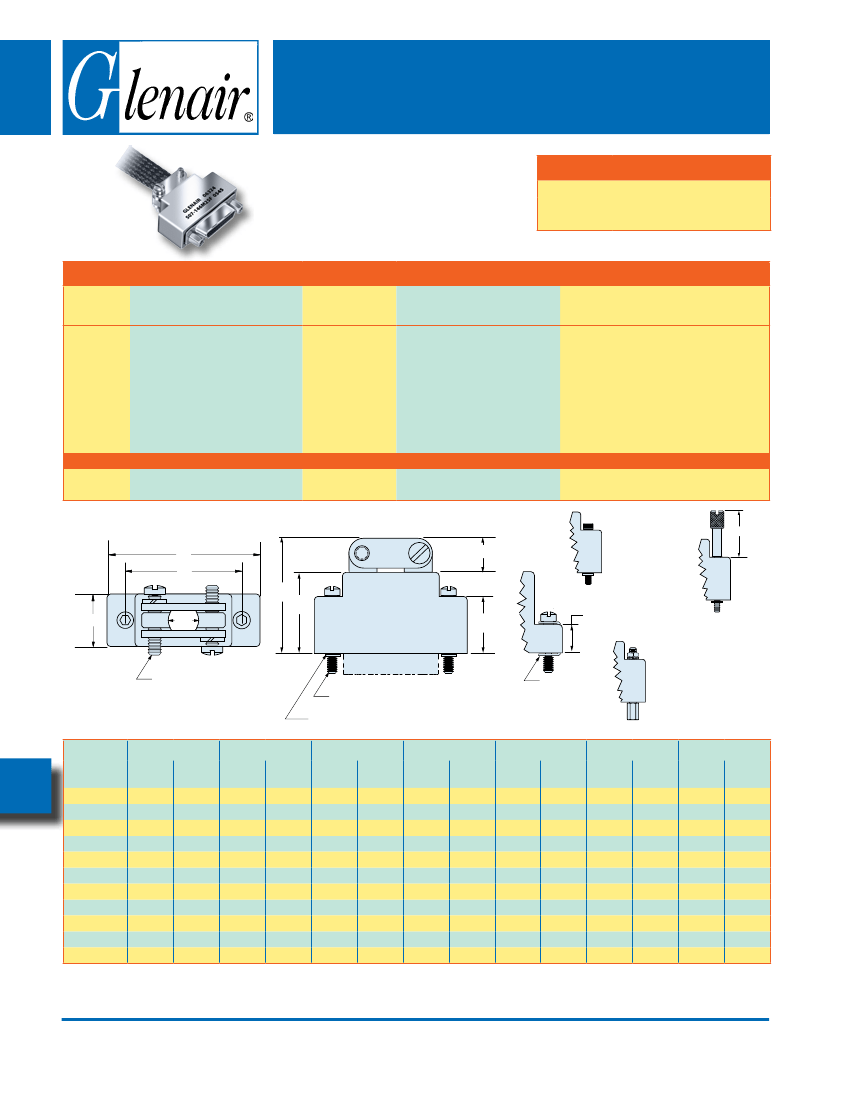

Strain Relief Backshell

Round Cable Entry

507-146

Micro-D

Backshells

Series

507-146

Shell Finish

–

Chem Film

–

Cadmium, Yellow Chromate

–

Electroless Nickel

–

Cadmium, Olive Drab

–

Gold

507-146 Strain Relief Backshells

feature

saddle bar clamps for easy installation.

Shell

E-Rings

attach the backshell to the

Clips

Micro-D connector.

MATERIALS

Aluminum Alloy 6061 -T6

17-7PH Stainless Steel

300 Series Stainless Steel

Hardware

HOW TO ORDER 507-146 STRAIN RELIEF BACKSHELLS

Connector Size

51-2

100

Hardware Option

Omit

for Fillister Head

Jackscrews

Jackscrew Attachment Option

Omit (Leave Blank)

Jackscrews Attach With E-Ring. This

Option Applies to Size 09 -69. Size 100 is

Not Available With E-Ring.

–

Hex Head Jackscrews

–

Extended Jackscrews

–

Jackpost, Female

–

"C" Clip

Sample Part Number

507-146

CODE H

HEX HEAD

JACKSCREW

ØD

.28 (7.1)

CODE B

FILLISTER HEAD

JACKSCREW

.50 (12.7)

.26 (6.6)

CODE E

EXTENDED

JACKSCREW

#4-40 THDS

#2-56 THDS SIZE 09-69

# 4-40 THDS SIZE 100

E-RING

ALTERNATE

CONFIGURATION

C CLIP

CODE F

FEMALE

JACKPOST

A Max.

B Max.

In.

.450

.495

.450

.495

.540

In.

.565

.715

.865

.965

1.115

1.265

1.215

1.615

2.015

1.515

1.800

Size

51-2

100

In.

.915

1.065

1.215

1.315

1.465

1.615

1.565

1.965

2.365

2.265

2.305

mm.

23.24

27.05

30.86

33.40

37.21

41.02

39.75

49.81

60.07

57.53

58.55

mm.

11.43

12.57

11.43

12.57

13.72

mm.

14.35

18.16

21.97

24.51

28.32

32.13

30.86

41.02

51.18

38.48

45.72

In.

± .010

.160

.190

.220

.260

.275

.285

.350

.285

.350

.490

mm.

± 0.25

4.06

4.83

5.59

6.60

6.99

7.24

8.89

7.24

8.89

12.45

E Max.

In.

.780

.830

.940

.990

1.030

1.070

1.150

1.210

F Max.

In.

.550

.600

.650

.700

.740

.780

.860

.930

G Max.

In.

.540

.590

.700

.740

.790

.830

.910

.970

mm.

19.81

21.08

23.88

25.15

26.16

27.18

29.21

30.73

mm.

13.97

15.24

16.51

17.78

18.80

19.81

21.84

23.62

mm.

13.72

14.99

17.78

18.80

20.07

21.08

23.11

24.63

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

M-18
