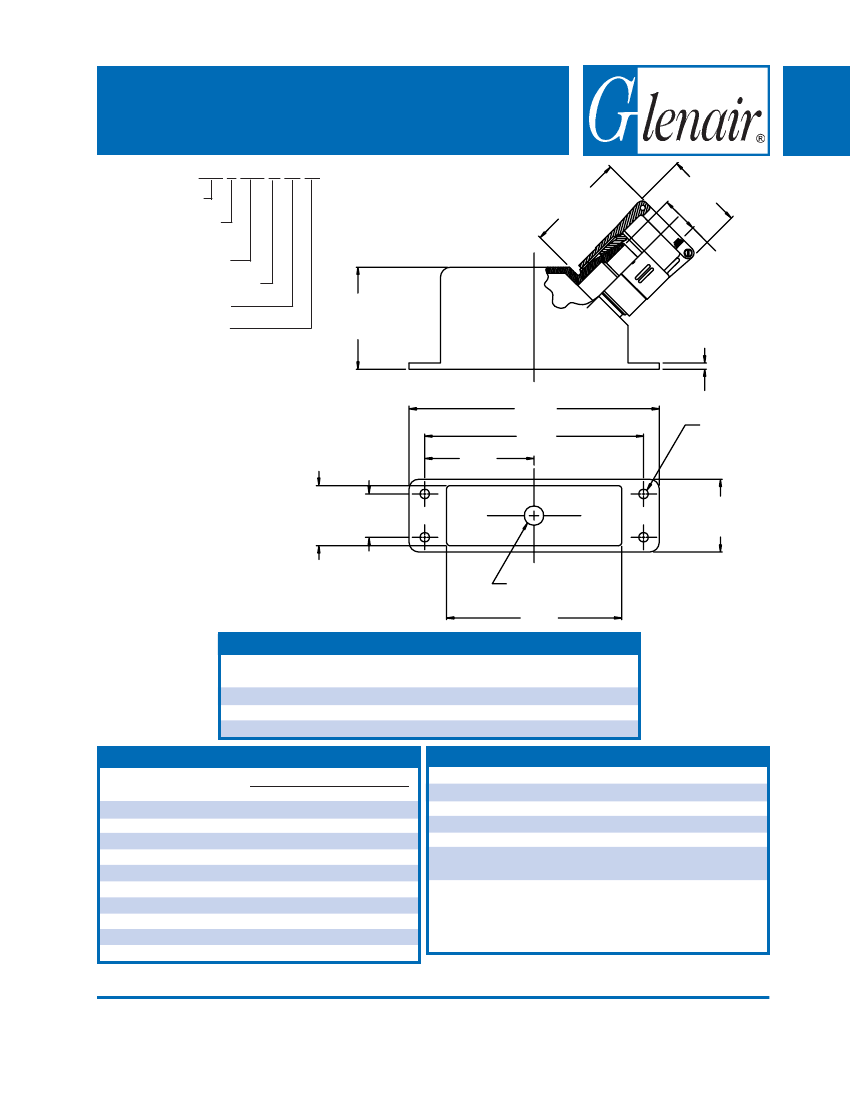

527-109
Solid EMI/RFI Strain-Relief Backshell for
Hypertronics NPBY Connectors
527 E 109 M 35 09
Basic Part No.
Cable Entry Style
E = 45° Entry
Basic Part Number
Finish Symbol (Table III)
Shell Size (Table I)
Dash No. (Table II)
3.00
(76.2)
.06 (1.5)
1.55 (39.4)
Max
E Max
Cable
Entry
1. Metric dimensions (mm) are indicated in
parentheses.
2. Material/Finish:
Backshell = Al Alloy/See Table III
Hardware = SST/Passivate
A
B
D
.125 (3.2)
Dia 4
Places
1.250 .800 (20.3)
(31.8)
Typ
1.40 (35.6)
Max
.312 (7.9) Dia
C
TABLE I: SHELL SIZE & CONNECTOR INTERFACE
A
Shell
Dim
Size
31 3.77 (95.8)
35 4.17 (105.9)
45 5.17 (131.3)
B
Dim
3.400 (86.4)
3.800 (96.5)
4.800 (121.9)
C
Dim
3.120 (79.2)
3.520 (89.4)
4.520 (114.8)
D
Dim
1.700 (43.2)
1.900 (48.3)
2.400 (61.0)
TABLE II: CABLE ENTRY
Dash
No.
01
02
03
04
05
06
07
08
09
10
E
Max
.781 (19.8)
.968 (24.6)
1.406 (35.7)
1.156 (29.4)
1.218 (30.9)
1.343 (34.1)
1.468 (37.3)
1.593 (40.5)
1.718 (43.6)
1.843 (46.8)
Cable Range
Min
Max
.062 (1.6)
.125 (3.2)
.125 (3.2)
.250 (6.4)
.250 (6.4)
.375 (9.5)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.750 (19.1)
.875 (22.2)
.875 (22.2) 1.000 (25.4)
1.000 (25.4) 1.125 (28.6)
1.125 (28.6) 1.250 (31.8)
Symbol
B
J
M
N
NF
T
TABLE III - FINISH OPTIONS
Finish
Cadmium Plate, Olive Drab
Iridite, Gold Over Cadmium Plate over Nickel
Electroless Nickel
Cadmium Plate, Olive Drab, Over Nickel
Cadmium Plate, Olive Drab, Over Electroless
Nickel (1000 Hour Salt Spray)
Cadmium Plate, Bright Dip Over Nickel
(500 Hour Salt Spray)
CONSULT FACTORY FOR
OTHER AVAILABLE FINISHES
Printed in U.S.A.
© 2004 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
H-3
