C333C103J5G5CA7301 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C333C103J5G5CA7301

C333C103J5G5CA7301: DescriptionCAPACITOR, CERAMIC, 50V, C0G, 0.01uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size208KB，11 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric Compare View All

C333C103J5G5CA7301 Overview

CAPACITOR, CERAMIC, 50V, C0G, 0.01uF, THROUGH HOLE MOUNT, RADIAL LEADED

C333C103J5G5CA7301 Parametric

Parameter Name	Attribute value
Maker	KEMET
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.01 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	C333
Installation features	THROUGH HOLE MOUNT
multi-layer	No
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	MATTE TIN
Terminal shape	WIRE

Preview

Download Datasheet

View All

MULTILAYER CERAMIC CAPACITORS/AXIAL & RADIAL LEADED

Multilayer ceramic capacitors are available in a

variety of physical sizes and configurations, including

leaded devices and surface mounted chips. Leaded

styles include molded and conformally coated parts

with axial and radial leads. However, the basic

capacitor element is similar for all styles. It is called a

chip and consists of formulated dielectric materials

which have been cast into thin layers, interspersed

with metal electrodes alternately exposed on opposite

edges of the laminated structure. The entire structure is

fired at high temperature to produce a monolithic

block which provides high capacitance values in a

small physical volume. After firing, conductive

terminations are applied to opposite ends of the chip to

make contact with the exposed electrodes.

Termination materials and methods vary depending on

the intended use.

TEMPERATURE CHARACTERISTICS

Ceramic dielectric materials can be formulated with

Class III:

General purpose capacitors, suitable

a wide range of characteristics. The EIA standard for

for by-pass coupling or other applications in which

ceramic dielectric capacitors (RS-198) divides ceramic

dielectric losses, high insulation resistance and

dielectrics into the following classes:

stability of capacitance characteristics are of little or

no importance. Class III capacitors are similar to Class

II capacitors except for temperature characteristics,

Class I:

Temperature compensating capacitors,

which are greater than ± 15%. Class III capacitors

suitable for resonant circuit application or other appli-

have the highest volumetric efficiency and poorest

cations where high Q and stability of capacitance char-

stability of any type.

acteristics are required. Class I capacitors have

predictable temperature coefficients and are not

effected by voltage, frequency or time. They are made

KEMET leaded ceramic capacitors are offered in

from materials which are not ferro-electric, yielding

the three most popular temperature characteristics:

superior stability but low volumetric efficiency. Class I

C0G:

Class I, with a temperature coefficient of 0 ±

capacitors are the most stable type available, but have

30 ppm per degree C over an operating

the lowest volumetric efficiency.

temperature range of - 55°C to + 125°C (Also

known as “NP0”).

X7R:

Class II, with a maximum capacitance

Class II:

Stable capacitors, suitable for bypass

change of ± 15% over an operating temperature

or coupling applications or frequency discriminating

range of - 55°C to + 125°C.

circuits where Q and stability of capacitance char-

Z5U:

Class III, with a maximum capacitance

acteristics are not of major importance. Class II

change of + 22% - 56% over an operating tem-

capacitors have temperature characteristics of ± 15%

perature range of + 10°C to + 85°C.

or less. They are made from materials which are

ferro-electric, yielding higher volumetric efficiency but

Specified electrical limits for these three temperature

less stability. Class II capacitors are affected by

temperature, voltage, frequency and time.

characteristics are shown in Table 1.

SPECIFIED ELECTRICAL LIMITS

PARAMETER

Dissipation Factor: Measured at following conditions:

C0G — 1 kHz and 1 vrms if capacitance > 1000 pF

1 MHz and 1 vrms if capacitance

≤

1000 pF

X7R — 1 kHz and 1 vrms* or if extended cap range 0.5 vrms

Z5U — 1 kHz and 0.5 vrms

Dielectric Strength: 2.5 times rated DC voltage.

Insulation Resistance (IR): At rated DC voltage,

whichever of the two is smaller

Temperature Characteristics: Range, °C

Capacitance Change without

DC voltage

* 1 MHz and 1 vrms if capacitance

≤

100 pF on military product.

TEMPERATURE CHARACTERISTICS

C0G

X7R

Z5U

0.15%

2.5%

4.0%

Pass Subsequent IR Test

1,000 MΩ-µF

or 100 GΩ

-55 to +125

0 ± 30 ppm/°C

1,000 MΩ-µF

or 100 GΩ

-55 to +125

±15%

1,000 MΩ-µF

or 10 GΩ

+10 to +85

+22%, -56%

Table I

Multlayer Ceramic

Capacitors

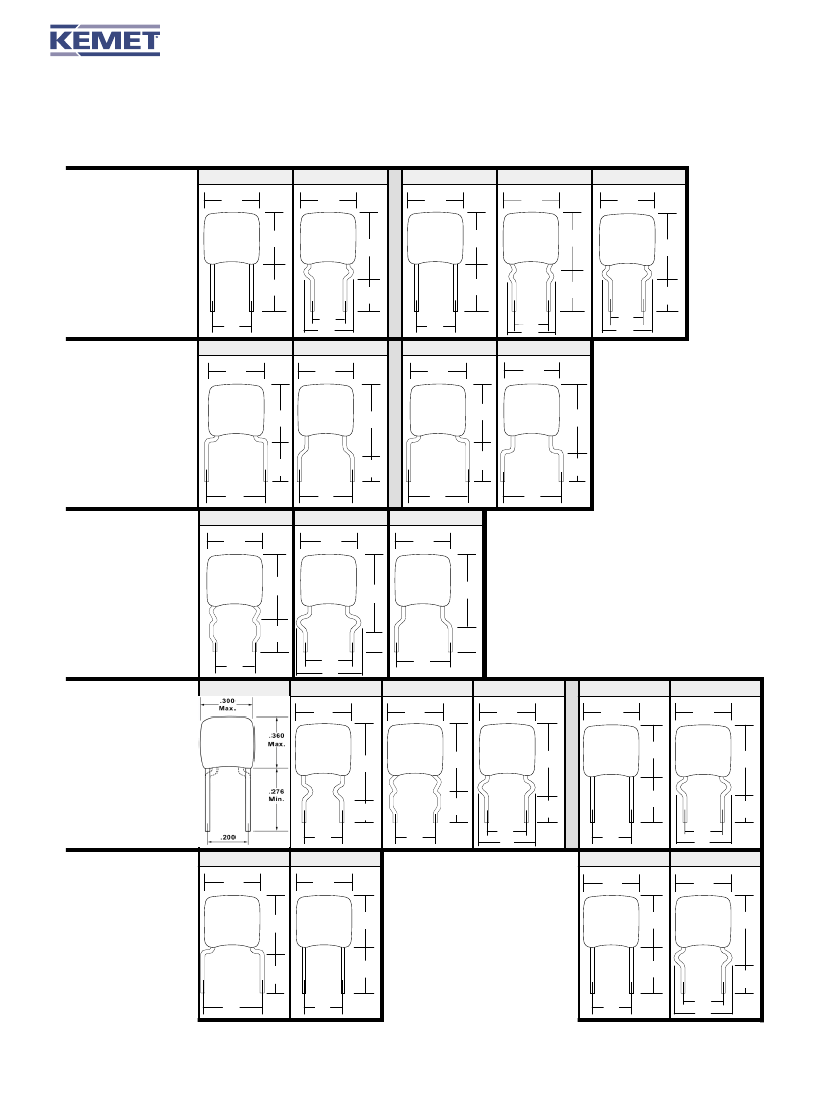

C333C103J5G5CA7301 Related Products

	C333C103J5G5CA7301	C325C101J2G5CA	C325C103K1R5CA	C323C101J1G5CA7301
Description	CAPACITOR, CERAMIC, 50V, C0G, 0.01uF, THROUGH HOLE MOUNT, RADIAL LEADED	Ceramic Capacitor, Multilayer, Ceramic, 200V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.0001uF, Through Hole Mount, 2012, RADIAL LEADED	Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Through Hole Mount, 2012, RADIAL LEADED	CAPACITOR, CERAMIC, 100V, C0G, 0.0001uF, THROUGH HOLE MOUNT, RADIAL LEADED
Maker	KEMET	KEMET	KEMET	KEMET
Reach Compliance Code	unknown	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
capacitance	0.01 µF	0.0001 µF	0.01 µF	0.0001 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e3	e3	e3	e3
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
multi-layer	No	Yes	Yes	No
negative tolerance	5%	5%	10%	5%
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	BULK	BULK	BULK
positive tolerance	5%	5%	10%	5%
Rated (DC) voltage (URdc)	50 V	200 V	100 V	100 V
surface mount	NO	NO	NO	NO
Temperature characteristic code	C0G	C0G	X7R	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	15% ppm/°C	-/+30ppm/Cel ppm/°C
Terminal surface	MATTE TIN	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	MATTE TIN
Terminal shape	WIRE	WIRE	WIRE	WIRE
