X7R1206CTTD105K datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> X7R1206CTTD105K

X7R1206CTTD105K: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size137KB，7 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

X7R1206CTTD105K Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT

X7R1206CTTD105K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Contact MFR For Special Tolerances
dielectric materials	CERAMIC
high	1.5 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	1206
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.6 mm

Preview

Download Datasheet

View All

NPO

X5R

X7R

Y5V

Z5U

ceramic chip capacitors

features

•

High Q factor

Low T.C.C.

Available in high capacitance values (up to 100 µF)

Products with lead-free terminations meet

RoHS requirements

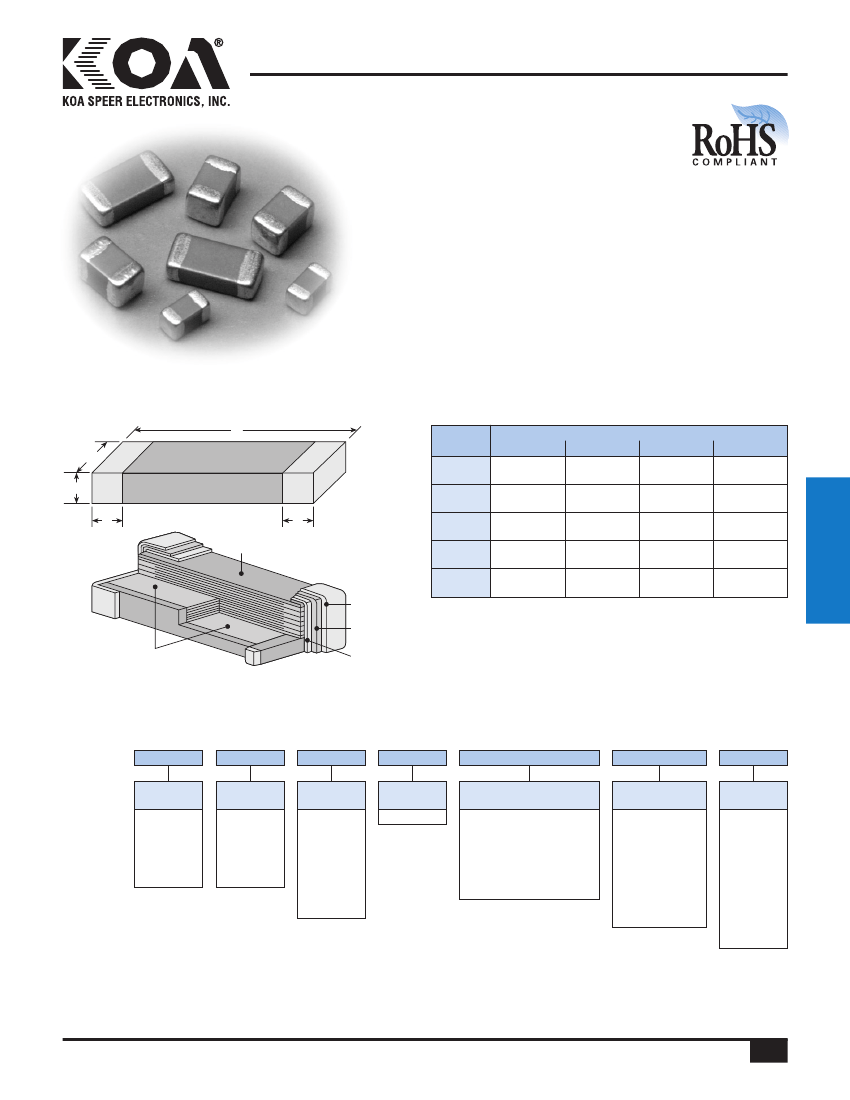

dimensions and construction

0402

0603

Ceramic

Body

0805

1206

1210

Solder

Plating (Sn)

Plating

Electrodes

Silver

Metallization

Case

Size

.039±.004

(1.0±0.1)

.063±.006

(1.6±0.15)

.079±.008

(2.01±0.2)

.126±.008

(3.2±0.2)

.126±.008

(3.2±0.2)

Dimensions

inches

(mm)

t (Max.)

.02±.004

(0.5±0.1)

.032±.006

(0.81±0.15)

.049±.008

(1.25±0.2)

.063±.008

(1.6±0.2)

.098±.008

(2.5±0.2)

.021

(0.55)

.035

(0.9)

.051

(1.3)

.059

(1.5)

.067

(1.7)

.01±.006

(0.25±0.15)

.014±.006

(0.35±0.15)

.02±.01

(0.50±0.25)

.02±.01

(0.5±0.25)

.02±.01

(0.5±0.25)

capacitors

ordering information

New Part #

NPO

Dielectric

NPO

X5R

X7R

Y5V

Z5U

0805

Size

0402

0603

0805

1206

1210

Voltage

10V

16V

25V

50V

100V

200V

6.3V

Termination

Material

T: Sn

Packaging

TP: 7" 2mm pitch

(0402 only)

TD: 7" paper tape

TE: 7" embossed plastic

TDB: 13" paper tape

TEB: 13" embossed plastic

101

Capacitance

NPO, X5R,

X7R,Y5V:

2 significant digits

+ no. of zeros.

“R” indicates

decimal point

Z5U:

2 significant digits

+ no. of zeros

Tolerance

B: ±0.1pF

C: ±0.25pF

D: ±0.5pF

F: ±1%

G: ±2%

J: ±5%

K: ±10%

M: ±20%

Z: +80, -20%

For further information on packaging,

please refer to Appendix B.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

1/11/06

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.

249

X7R1206CTTD105K Related Products

	X7R1206CTTD105K	X7R1206CTTD334K	X7R1206CTTDB105K
Description	Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.33uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	KOA Speer	KOA Speer	KOA Speer
package instruction	, 1206	, 1206	, 1206
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
capacitance	1 µF	0.33 µF	1 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC
high	1.5 mm	1.5 mm	1.5 mm
JESD-609 code	e3	e3	e3
length	3.2 mm	3.2 mm	3.2 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes
negative tolerance	10%	10%	10%
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT
method of packing	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 13 INCH
positive tolerance	10%	10%	10%
Rated (DC) voltage (URdc)	16 V	16 V	16 V
size code	1206	1206	1206
surface mount	YES	YES	YES
Temperature characteristic code	X7R	X7R	X7R
Temperature Coefficient	15% ppm/°C	15% ppm/°C	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
width	1.6 mm	1.6 mm	1.6 mm
Custom functions	Contact MFR For Special Tolerances	-	Contact MFR For Special Tolerances
