CX5032GA25000D0QTWZ1 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX5032GA25000D0QTWZ1

CX5032GA25000D0QTWZ1: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 25 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size75KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

CX5032GA25000D0QTWZ1 Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 25 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2

CX5032GA25000D0QTWZ1 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.02%
frequency tolerance	100 ppm
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series resistance	70 Ω
surface mount	YES

Preview

Download Datasheet

View All

Crystal Units

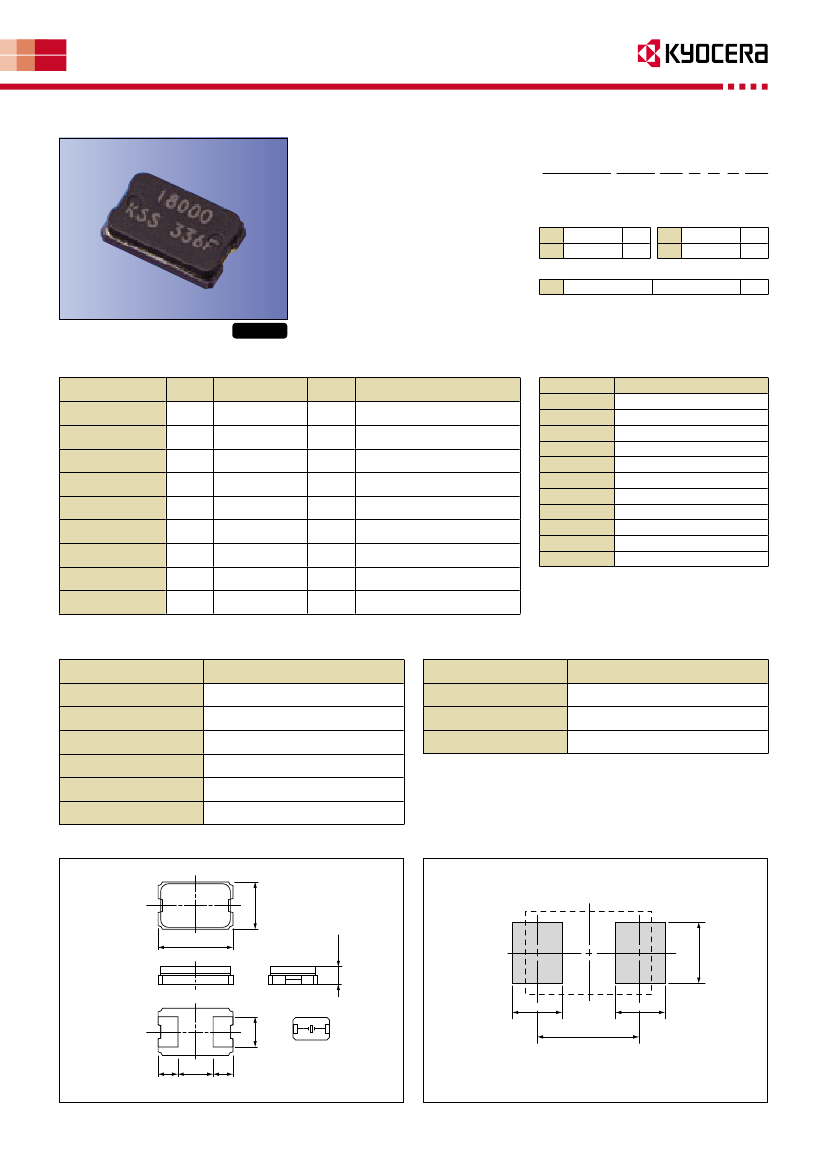

Surface Mount Type CX5032GA (CX-53G)

5.0×3.2mm for Automotive

Features

• Crystal unit for automotive electronics

• Small and low profile (5.0×3.2×1.3mm)

• Ceramic package

• Reflow compatible

• AEC-Q200 qualitied

How to Order

CX5032GA 08000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

①

Series

③

Load Capacitance

8 pF

12 pF

—

Std.

②

Frequency

④

Frequency Stability

±50×10

—

±100×10

Std.

Applications

• ECU

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

-40

+150°C

±200×10

⑦

Individual Specification

RoHS Compliant

Packaging (Tape & Reel 3000/ 1000 pcs./ reel)

Typical Frequencies and Part Numbers

Specifications

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

_nom

_tol

_use

_stg

_tem

Specification

8000 to 40000

Fundamental

±100

Table 1

Table 2

-40

+150

-40

+150

±200

Units

kHz

―

×10

ohm

μW

°C

×10

Freq. deviation from the value at 25°C

25°C±3°C

Remarks

Frequency (kHz)

8000.000

9843.750

10000.000

12000.000

13560.000

15000.000

16000.000

18000.000

20000.000

24000.000

25000.000

Part Number

CX5032GA08000H0QTWZ1

CX5032GA09843H0QTWZ1

CX5032GA10000H0QTWZ1

CX5032GA12000H0QTWZ1

CX5032GA13560H0QTWZ1

CX5032GA15000H0QTWZ1

CX5032GA16000H0QTWZ1

CX5032GA18000H0QTWZ1

CX5032GA20000H0QTWZ1

CX5032GA24000H0QTWZ1

CX5032GA25000H0QTWZ1

• Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

8000 to 9499kHz

9500 to 9999kHz

10000 to 13999kHz

14000 to 19999kHz

20000 to 29999kHz

30000 to 40000kHz

Motional Series Resistance

300Ω max.

200Ω max.

150Ω max.

100Ω max.

70Ω max.

50Ω max.

(Unit: mm)

Table2 Level of Drive

Frequency Range

8000 to 15999kHz

16000 to 24999kHz

25000 to 40000kHz

Level of Drive

10μW (500μW max.)

10μW (300μW max.)

10μW (100μW max.)

Dimensions

Recommended Land Pattern

(Unit: mm)

1.3±0.2

5.0±0.2

3.2±0.2

1.9

2.0

4.1

CONNECTION

1.3

2.4

1.3

1.9

2.4

CX5032GA25000D0QTWZ1 Related Products

	CX5032GA25000D0QTWZ1	CX5032GA13560D0QTWZ1	CX5032GA12000D0QTWZ1	CX5032GA09843D0QTWZ1	CX5032GA16000D0QTWZ1	CX5032GA24000D0QTWZ1	CX5032GA18000D0QTWZ1	CX5032GA15000D0QTWZ1
Description	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 25 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 13.56 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 12 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 9.84375 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 16 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 24 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 18 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Parallel - Fundamental Quartz Crystal, 15MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%
frequency tolerance	100 ppm	100 ppm	100 ppm	100 ppm	100 ppm	100 ppm	100 ppm	100 ppm
load capacitance	8 pF	8 pF	8 pF	8 pF	8 pF	8 pF	8 pF	8 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	25 MHz	13.56 MHz	12 MHz	9.84375 MHz	16 MHz	24 MHz	18 MHz	15 MHz
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series resistance	70 Ω	150 Ω	150 Ω	200 Ω	100 Ω	70 Ω	100 Ω	100 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Base Number Matches	-	1	1	1	1	1	-	-
