VC-FXO-35FL-FREQ-OUT24-DEVN3 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VC-FXO-35FL-FREQ-OUT24-DEVN3

VC-FXO-35FL-FREQ-OUT24-DEVN3: DescriptionVCXO, Clock, VCXO, CLOCK, 8 MHz - 35 MHz, CMOS/LSTTL OUTPUT; CategoryPassive components oscillator; File Size171KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

VC-FXO-35FL-FREQ-OUT24-DEVN3 Overview

VCXO, Clock, VCXO, CLOCK, 8 MHz - 35 MHz, CMOS/LSTTL OUTPUT

VC-FXO-35FL-FREQ-OUT24-DEVN3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	15 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	30%
linearity	15%
Installation features	SURFACE MOUNT
Maximum operating frequency	35 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL, 15 pF
physical size	7mm x 5mm x 1.8mm
longest rise time	15 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

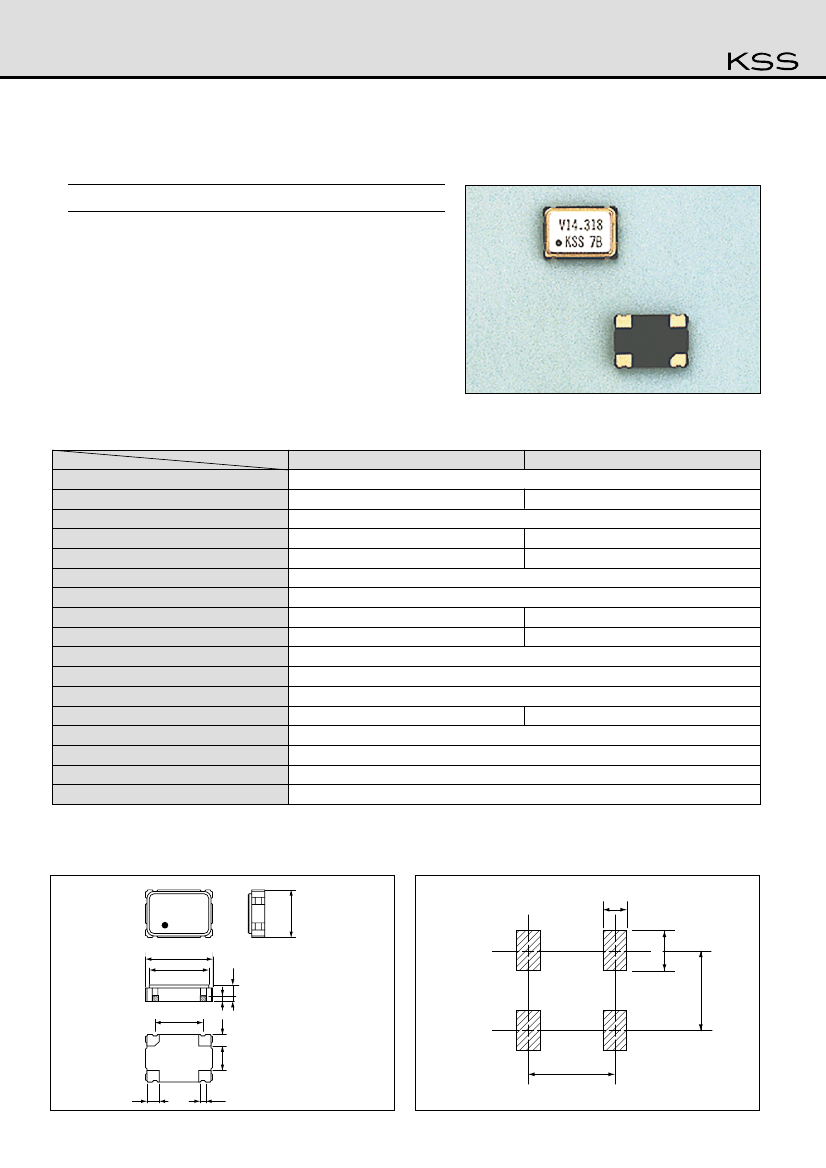

VC-FXO-35F

Voltage Controlled SMD Crystal Oscillator

Features

¡It

is a compact and thin ceramic package with a metalized lead

for surface mounting that is able to be automatically loaded.

¡Reflow

soldering is possible.

Specifications

Item

Application

Frequency Range

Frequency Stability

Frequency Tuning Range

Frequency Linearity

Operating Temperature Range

Storage Temperature Range

Supply Voltage

Current

Load

Output Level

Output Symmetry

Rise Time/Fall Time

Start-up Time

Vibration

Shock

Weight

*1 Please contact us for standard frequency.

*2 Please contact us for Frequency Tuning Range

±75×10

–6

±100×10

–6

10ns MAX.

10ms MAX.

10~55Hz Amplitude 1.5mm, cycle 2 minute, 3 direction. 2 hour each

1000G

0.3g

5.0V±5%

25mA MAX.

15pF (LS10 TTL)

: 0.9×V

MIN.

: 0.5V MAX.

40~60% (VT=1/2V

)

15nsMAX.

±50×10

–6

MIN. (VC=2.5±2.0V) *2

±10%

-10~+70:

-30~+85:

3.3V±5%

20mA MAX.

8.0~40.0MHz *1

±30×10

–6

±50×10

–6

MIN. (VC=1.65±1.65V) *2

±15%

Type

VC-FXO-35F

C-MOS Output Type

8.0~35MHz *1

VC-FXO-35FL

Outline

VC-FXO-35F

14.318

KSS 4G

7.0±0.2

6.2±0.2

1.8±0.2

5.0±0.2

Land Pattern(reference)

1.8

2.0

CONNECTION

1:VC

2:GND

3:OUTPUT

4:V

5.08±0.2

2.6

1.2 0.6

5.08

1.4

0.6

Dimensions(mm)

4.2

VC-FXO-35FL-FREQ-OUT24-DEVN3 Related Products

	VC-FXO-35FL-FREQ-OUT24-DEVN3	VC-FXO-35FL	VC-FXO-35F-8.0MHZ	VC-FXO-35F-FREQ-OUT24-DEVN1	VC-FXO-35F-FREQ-OUT24-DEVN2	VC-FXO-35F-FREQ-OUT24-DEVN3	VC-FXO-35FL-FREQ-OUT24-DEVN1	VC-FXO-35FL-FREQ-OUT24-DEVN2
Description	VCXO, Clock, VCXO, CLOCK, 8 MHz - 35 MHz, CMOS/LSTTL OUTPUT	voltage controlled smd crystal oscillator	Oscillator,	VCXO, Clock, VCXO, CLOCK, 8 MHz - 40 MHz, CMOS/LSTTL OUTPUT	VCXO, Clock, VCXO, CLOCK, 8 MHz - 40 MHz, CMOS/LSTTL OUTPUT	CMOS/LSTTL Output Clock Oscillator, 8MHz Min, 40MHz Max,	CMOS/LSTTL Output Clock Oscillator, 8MHz Min, 35MHz Max,	CMOS/LSTTL Output Clock Oscillator, 8MHz Min, 35MHz Max,
Maker	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	compliant	compliant
Is it lead-free?	Lead free	-	-	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	incompatible	-	conform to	conform to	conform to	conform to	conform to
Maximum control voltage	3.3 V	-	-	4.5 V	4.5 V	4.5 V	3.3 V	3.3 V
maximum descent time	15 ns	-	-	10 ns	10 ns	10 ns	15 ns	15 ns
Frequency Adjustment - Mechanical	NO	-	-	NO	NO	NO	NO	NO
Frequency offset/pull rate	100 ppm	-	-	50 ppm	75 ppm	100 ppm	50 ppm	75 ppm
frequency stability	30%	-	-	30%	30%	30%	30%	30%
linearity	15%	-	-	10%	10%	10%	15%	15%
Installation features	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	35 MHz	35 MHz	-	40 MHz	40 MHz	40 MHz	35 MHz	35 MHz
Minimum operating frequency	8 MHz	8 MHz	-	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum operating temperature	70 °C	70 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Oscillator type	CMOS/LSTTL	-	-	CMOS/LSTTL	CMOS/LSTTL	CMOS/LSTTL	CMOS/LSTTL	CMOS/LSTTL
Output load	10 LS TTL, 15 pF	-	-	10 LS TTL, 15 pF	10 LS TTL, 15 pF	10 LS TTL, 15 pF	10 LS TTL, 15 pF	10 LS TTL, 15 pF
physical size	7mm x 5mm x 1.8mm	-	-	7mm x 5mm x 1.8mm	7mm x 5mm x 1.8mm	7mm x 5mm x 1.8mm	7mm x 5mm x 1.8mm	7mm x 5mm x 1.8mm
longest rise time	15 ns	-	-	10 ns	10 ns	10 ns	15 ns	15 ns
Nominal supply voltage	3.3 V	3.3 V	-	5 V	5 V	5 V	3.3 V	3.3 V
surface mount	YES	YES	-	YES	YES	YES	YES	YES
maximum symmetry	60/40 %	-	-	60/40 %	60/40 %	60/40 %	60/40 %	60/40 %
