Datasheet> All Categories > Analog mixed-signal IC> converter> AM6072DM

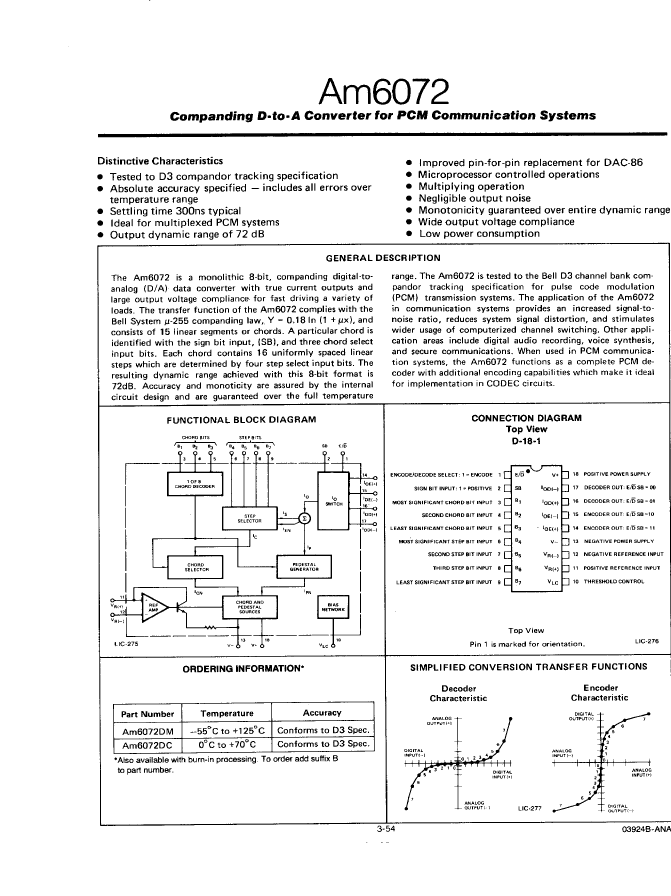

Preview

AM6072DM: DescriptionD/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.3us Settling Time, CDIP18, HERMETIC SEALED, DIP-18; CategoryAnalog mixed-signal IC converter; File Size549KB，12 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM6072DM Overview

D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.3us Settling Time, CDIP18, HERMETIC SEALED, DIP-18

AM6072DM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog output voltage	18 V
Minimum analog output voltage	-5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T18
JESD-609 code	e0
length	22.733 mm
Nominal negative supply voltage	-15 V
Number of digits	8
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
Maximum seat height	6.604 mm
Maximum stabilization time	1 µs
Nominal settling time (tstl)	0.3 µs
Maximum slew rate	8.8 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

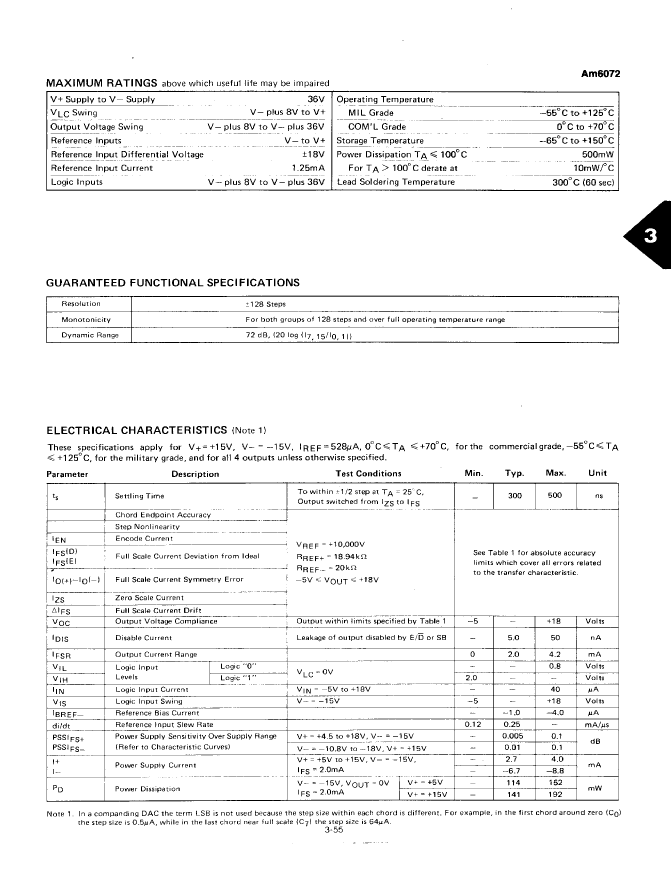

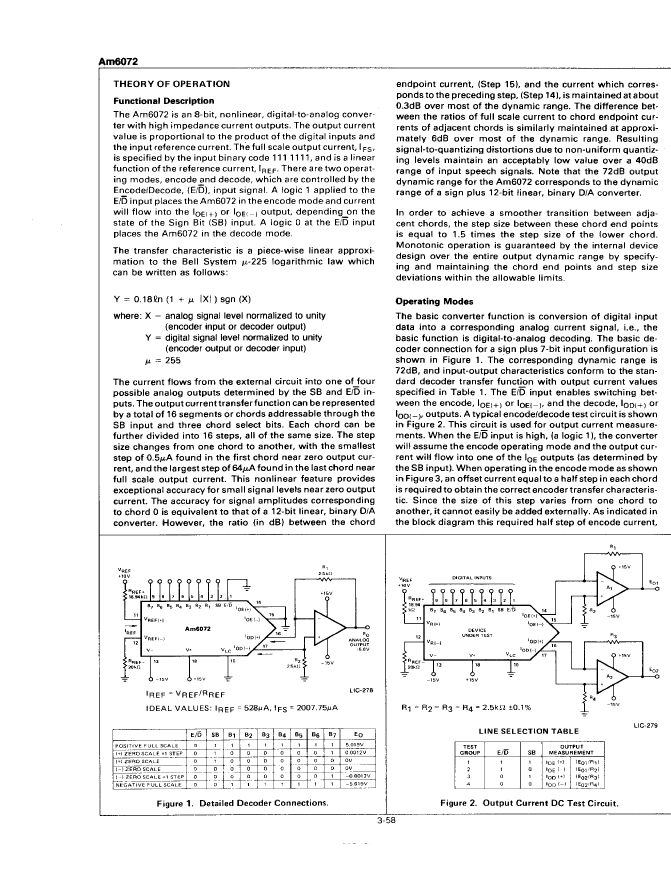

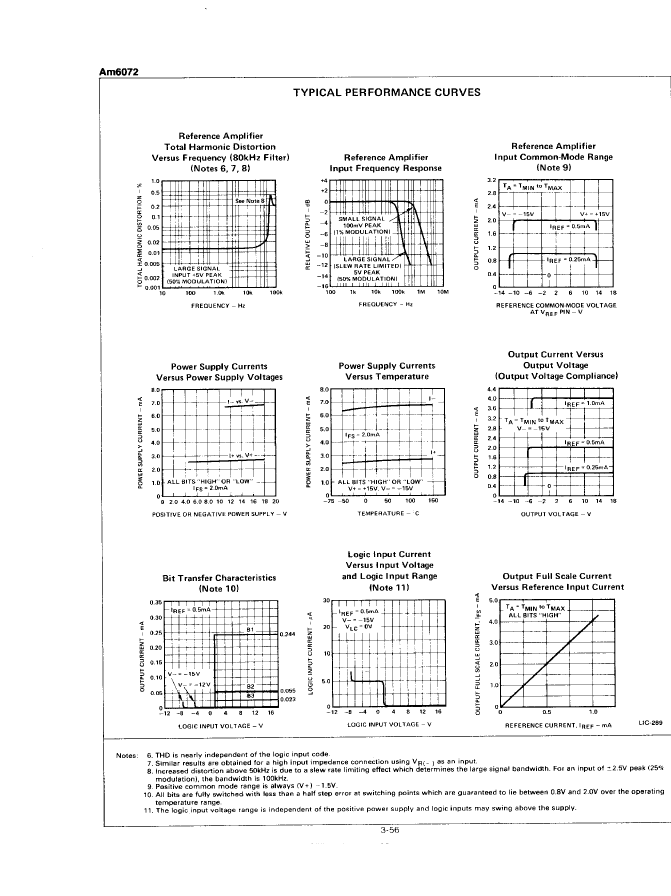

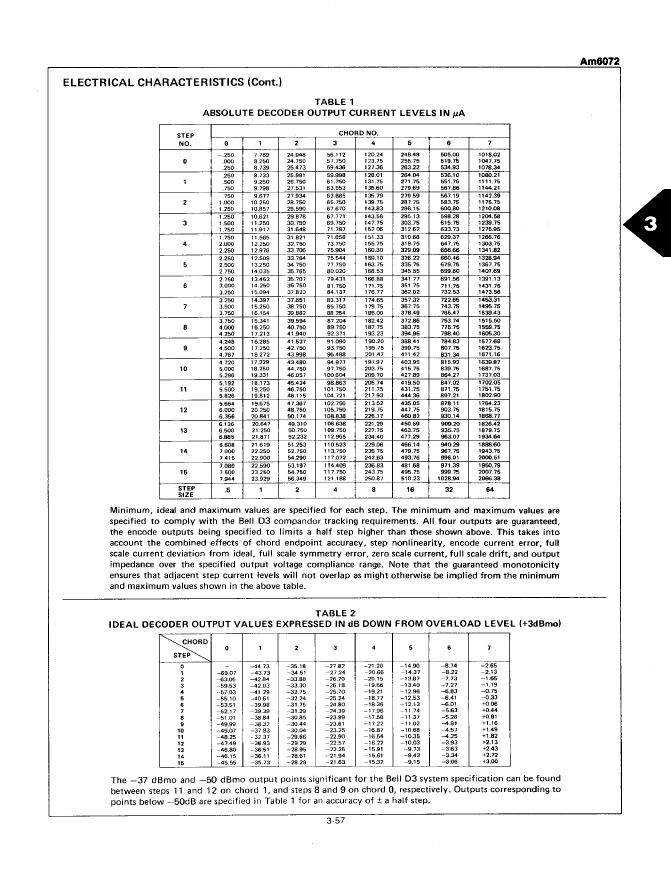

Preview

Download Datasheet

View All

AM6072DM Related Products

	AM6072DM	AM6072DC
Description	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.3us Settling Time, CDIP18, HERMETIC SEALED, DIP-18	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.3us Settling Time, CDIP18, HERMETIC SEALED, DIP-18
Is it Rohs certified?	incompatible	incompatible
Maker	AMD	AMD
Parts packaging code	DIP	DIP
package instruction	DIP, DIP18,.3	DIP, DIP18,.3
Contacts	18	18
Reach Compliance Code	unknown	unknown
Maximum analog output voltage	18 V	18 V
Minimum analog output voltage	-5 V	-5 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T18	R-CDIP-T18
JESD-609 code	e0	e0
length	22.733 mm	22.733 mm
Nominal negative supply voltage	-15 V	-15 V
Number of digits	8	8
Number of functions	1	1
Number of terminals	18	18
Maximum operating temperature	125 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	6.604 mm	6.604 mm
Maximum stabilization time	1 µs	1 µs
Nominal settling time (tstl)	0.3 µs	0.3 µs
Maximum slew rate	8.8 mA	8.8 mA
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm
