AM79C02AJC/TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> AM79C02AJC/TR

AM79C02AJC/TR: DescriptionPCM Codec, A/MU-Law, 1-Func, PQCC44, PLASTIC, LCC-44; CategoryWireless rf/communication Telecom circuit; File Size1MB，47 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM79C02AJC/TR Overview

PCM Codec, A/MU-Law, 1-Func, PQCC44, PLASTIC, LCC-44

AM79C02AJC/TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	unknown
Law of compression and extension	A/MU-LAW
filter	NO
JESD-30 code	S-PQCC-J44
length	16.5862 mm
Negative supply voltage rating	-5 V
Number of functions	1
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.445 mm
Nominal supply voltage	5 V
surface mount	YES
Telecom integrated circuit types	PCM CODEC
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm

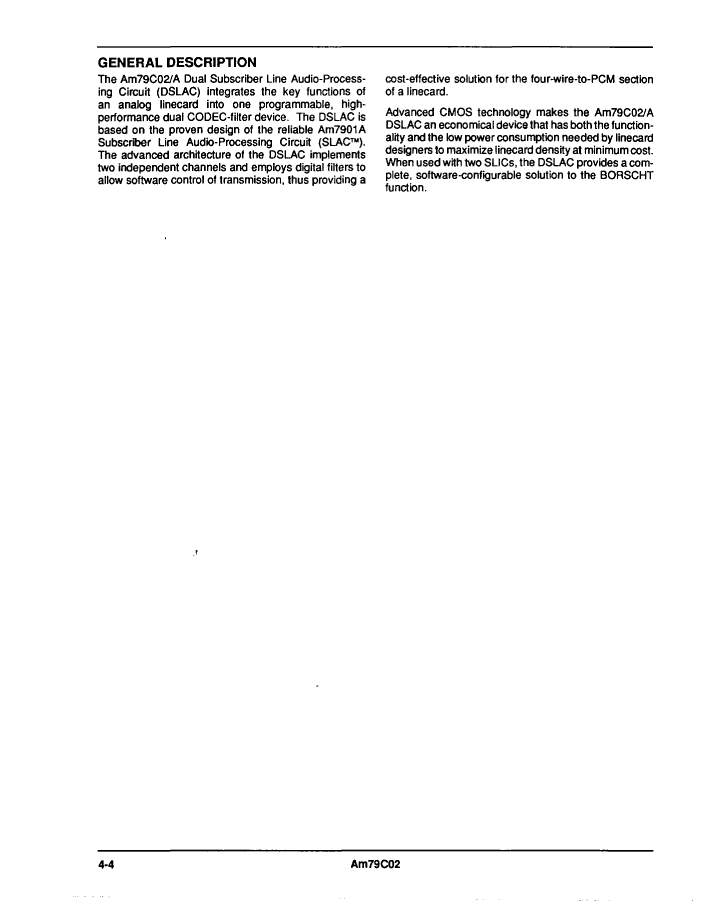

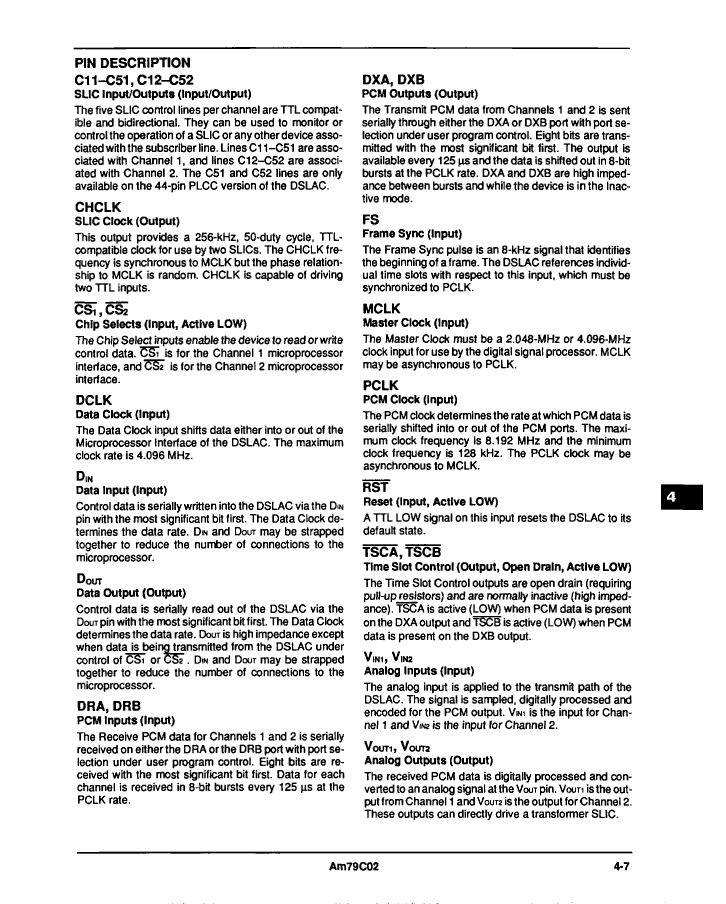

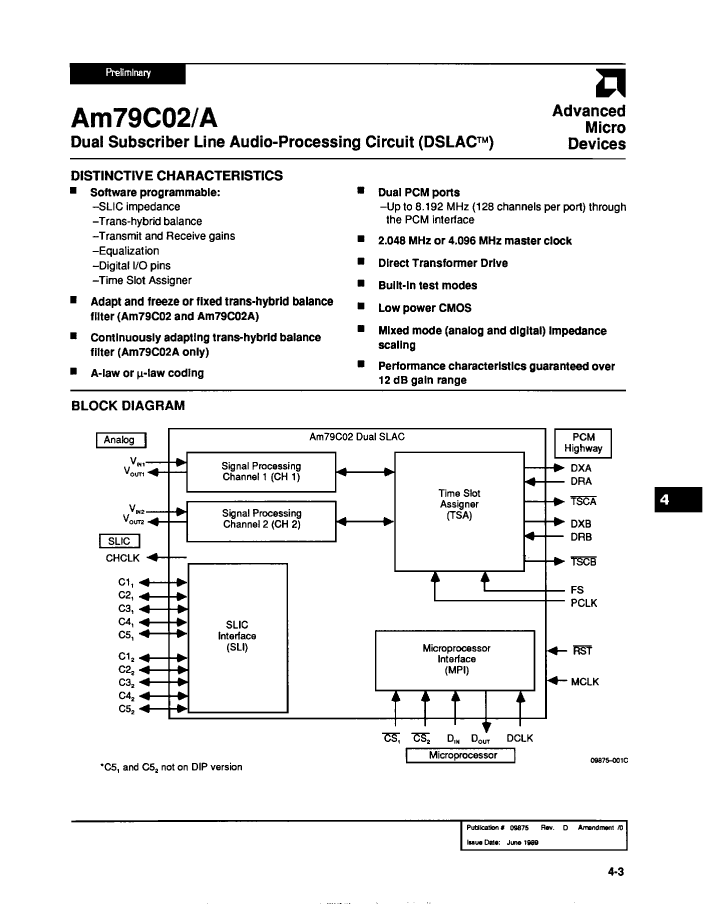

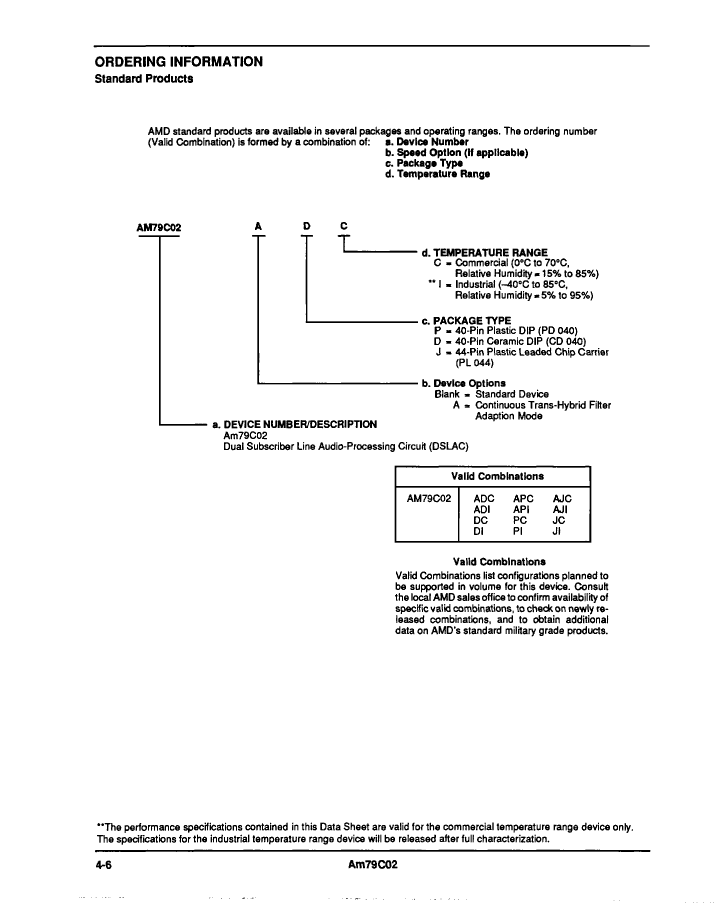

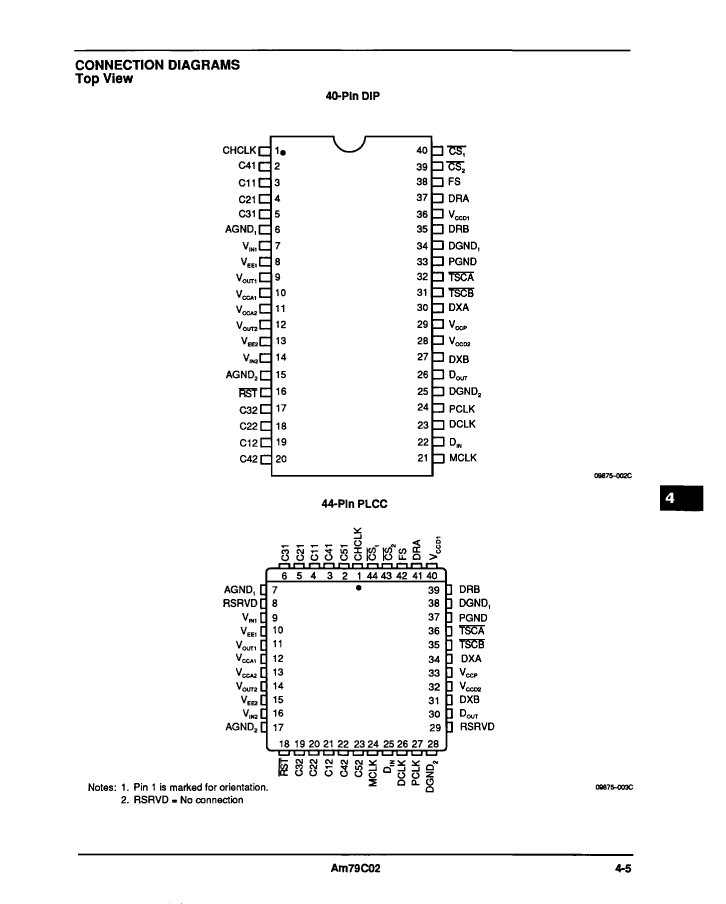

Preview

Download Datasheet

View All

AM79C02AJC/TR Related Products

	AM79C02AJC/TR	AM79C02ADI	AM79C02API	AM79C02AJI	AM79C02PI	AM79C02JI
Description	PCM Codec, A/MU-Law, 1-Func, PQCC44, PLASTIC, LCC-44	PCM Codec, 1-Func, CDIP40, CERAMIC, DIP-40	PCM Codec, 1-Func, PDIP40, PLASTIC, DIP-40	PCM Codec, 1-Func, PQCC44, PLASTIC, LCC-44	PCM Codec, A/MU-Law, 1-Func, CMOS, PDIP40, PLASTIC, DIP-40	PCM Codec, A/MU-Law, 1-Func, CMOS, PQCC44, PLASTIC, LCC-44
Parts packaging code	LCC	DIP	DIP	LCC	DIP	LCC
package instruction	QCCJ,	DIP,	DIP,	QCCJ,	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ
Contacts	44	40	40	44	40	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
JESD-30 code	S-PQCC-J44	R-GDIP-T40	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44
length	16.5862 mm	52.2605 mm	52.324 mm	16.5862 mm	52.324 mm	16.5862 mm
Number of functions	1	1	1	1	1	1
Number of terminals	44	40	40	44	40	44
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	DIP	QCCJ	DIP	QCCJ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.445 mm	5.588 mm	5.715 mm	4.57 mm	5.715 mm	4.57 mm
surface mount	YES	NO	NO	YES	NO	YES
Telecom integrated circuit types	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD
width	16.5862 mm	15.24 mm	15.24 mm	16.5862 mm	15.24 mm	16.5862 mm
