Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8036ADC
PDF

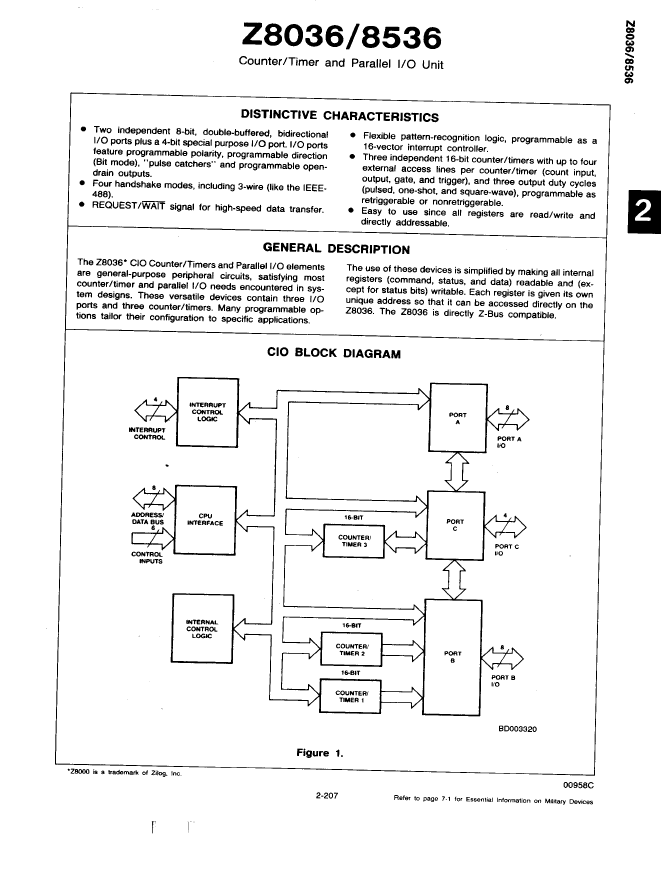

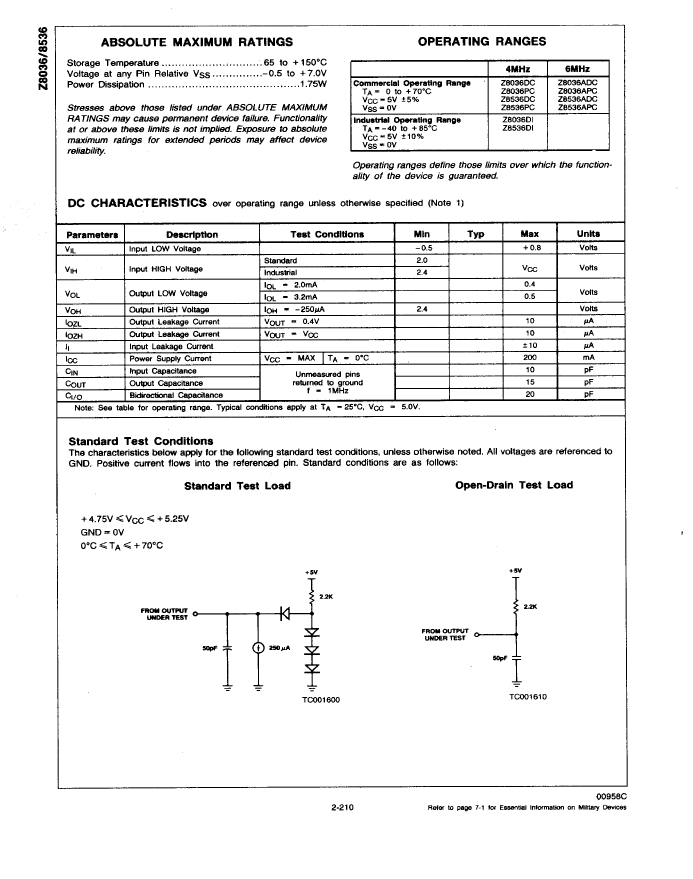

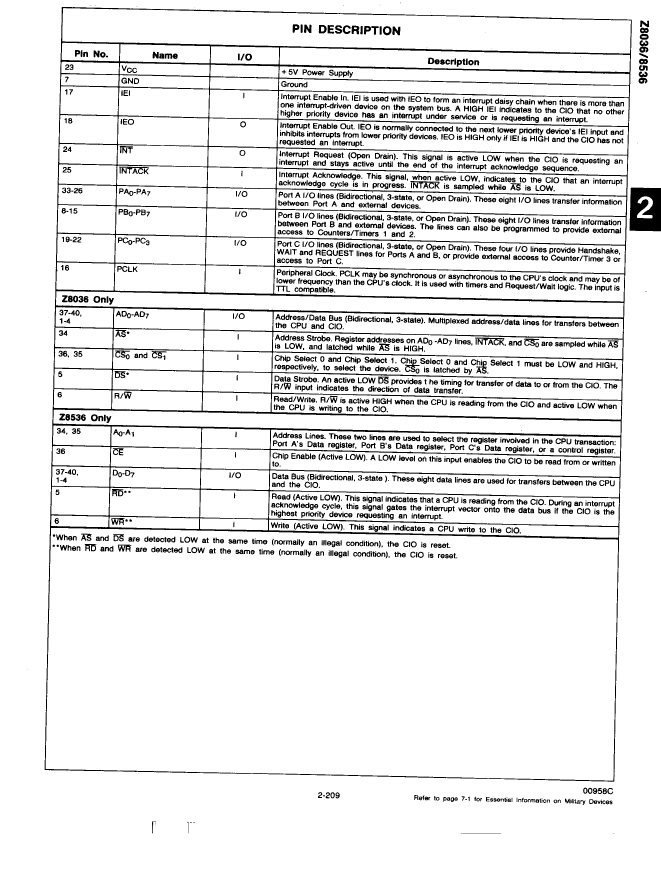

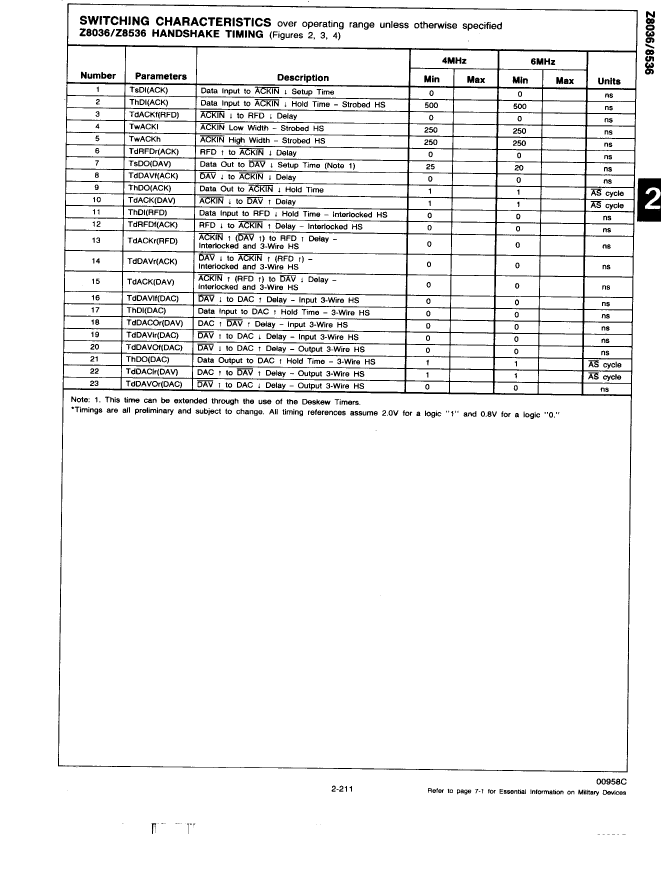

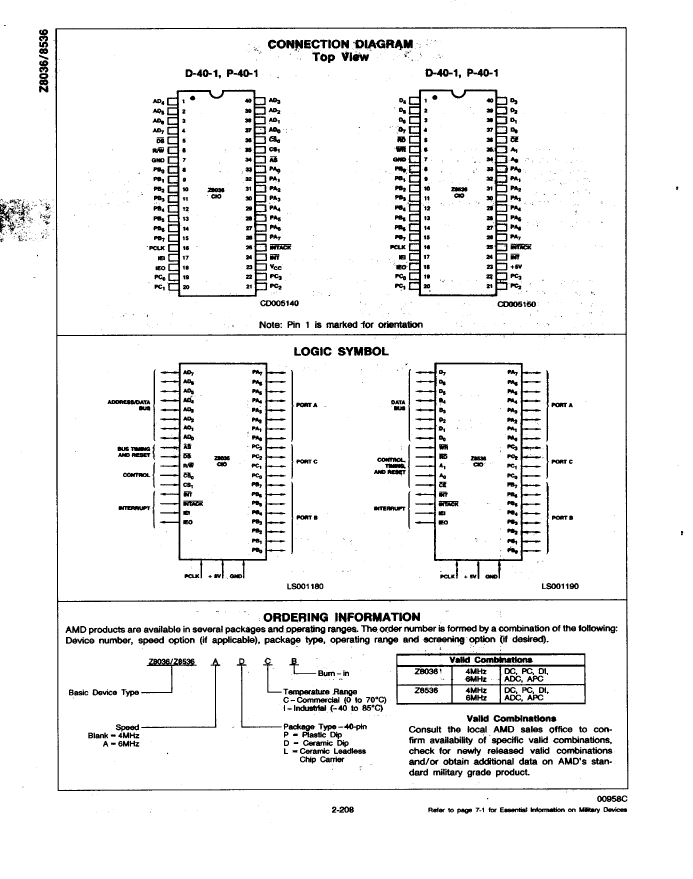

Preview

Z8036ADC

Description
Parallel I/O Port, 20 I/O, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size477KB，17 Pages
ManufacturerAMD
Websitehttp://www.amd.com
Download Datasheet Parametric Compare View All

Z8036ADC Overview

Parallel I/O Port, 20 I/O, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40

Z8036ADC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAMD
Parts packaging codeDIP
package instructionHERMETIC SEALED, CERAMIC, DIP-40
Contacts40
Reach Compliance Codecompliant
ECCN codeEAR99
maximum clock frequency6.06 MHz
External data bus width8
JESD-30 codeR-CDIP-T40
JESD-609 codee0
length52.324 mm
Number of I/O lines20
Number of ports3
Number of terminals40
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP40,.6
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height5.715 mm
Maximum slew rate200 mA
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
technologyMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width15.24 mm
uPs/uCs/peripheral integrated circuit typePARALLEL IO PORT, GENERAL PURPOSE

Preview

Download Datasheet
This Material Copyrighted By Its Respective Manufacturer

Z8036ADC Related Products

Z8036ADC Z8536ADC Z8036APC Z8036DC Z8536PC Z8036DI Z8536DI Z8036PC Z8536DC Z8536APC
Description Parallel I/O Port, 20 I/O, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, PDIP40, PLASTIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, PDIP40, PLASTIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, PDIP40, PLASTIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 Parallel I/O Port, 20 I/O, MOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Parts packaging code DIP DIP DIP DIP DIP DIP DIP DIP DIP DIP
package instruction HERMETIC SEALED, CERAMIC, DIP-40 HERMETIC SEALED, CERAMIC, DIP-40 PLASTIC, DIP-40 HERMETIC SEALED, CERAMIC, DIP-40 PLASTIC, DIP-40 HERMETIC SEALED, CERAMIC, DIP-40 HERMETIC SEALED, CERAMIC, DIP-40 PLASTIC, DIP-40 HERMETIC SEALED, CERAMIC, DIP-40 PLASTIC, DIP-40
Contacts 40 40 40 40 40 40 40 40 40 40
Reach Compliance Code compliant unknown compliant compliant unknown compliant unknown compliant unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
maximum clock frequency 6.06 MHz 6.06 MHz 6.06 MHz 4 MHz 4 MHz 4 MHz 4 MHz 4 MHz 4 MHz 6.06 MHz
External data bus width 8 8 8 8 8 8 8 8 8 8
JESD-30 code R-CDIP-T40 R-CDIP-T40 R-PDIP-T40 R-CDIP-T40 R-PDIP-T40 R-CDIP-T40 R-CDIP-T40 R-PDIP-T40 R-CDIP-T40 R-PDIP-T40
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0 e0
length 52.324 mm 52.324 mm 52.2605 mm 52.324 mm 52.2605 mm 52.324 mm 52.324 mm 52.2605 mm 52.324 mm 52.2605 mm
Number of I/O lines 20 20 20 20 20 20 20 20 20 20
Number of ports 3 3 3 3 3 3 3 3 3 3
Number of terminals 40 40 40 40 40 40 40 40 40 40
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C 85 °C 85 °C 70 °C 70 °C 70 °C
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED PLASTIC/EPOXY CERAMIC, METAL-SEALED COFIRED PLASTIC/EPOXY CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED PLASTIC/EPOXY CERAMIC, METAL-SEALED COFIRED PLASTIC/EPOXY
encapsulated code DIP DIP DIP DIP DIP DIP DIP DIP DIP DIP
Encapsulate equivalent code DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 5.715 mm 5.715 mm 5.461 mm 5.715 mm 5.461 mm 5.715 mm 5.715 mm 5.461 mm 5.715 mm 5.461 mm
Maximum slew rate 200 mA 200 mA 200 mA 200 mA 200 mA 200 mA 200 mA 200 mA 200 mA 200 mA
Maximum supply voltage 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V 5.5 V 5.5 V 5.25 V 5.25 V 5.25 V
Minimum supply voltage 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.5 V 4.5 V 4.75 V 4.75 V 4.75 V
Nominal supply voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount NO NO NO NO NO NO NO NO NO NO
technology MOS MOS MOS MOS MOS MOS MOS MOS MOS MOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL INDUSTRIAL INDUSTRIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm
uPs/uCs/peripheral integrated circuit type PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE PARALLEL IO PORT, GENERAL PURPOSE
Maker AMD - - AMD AMD AMD AMD AMD AMD AMD
