PE-0603FB102ST Overview

Ferrite Chip,

PE-0603FB102ST Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	16 weeks
Maximum DC resistance	0.5 Ω
filter type	FERRITE CHIP
high	0.8 mm
length	1.6 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Output impedance	1000 OHM Ω
method of packing	TR, 7 INCH
physical size	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)
Rated current	0.4 A
width	0.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Table of Contents

The 01005 to 1806 series ranger of Miniature Ferrite beads contains the very latest in multi layer ferrite beads

technology, thus providing the ultimate in performance demanded by today's high Speed EMI noise filtering

products . The ferrite beads are in an industry standard size and footprint .

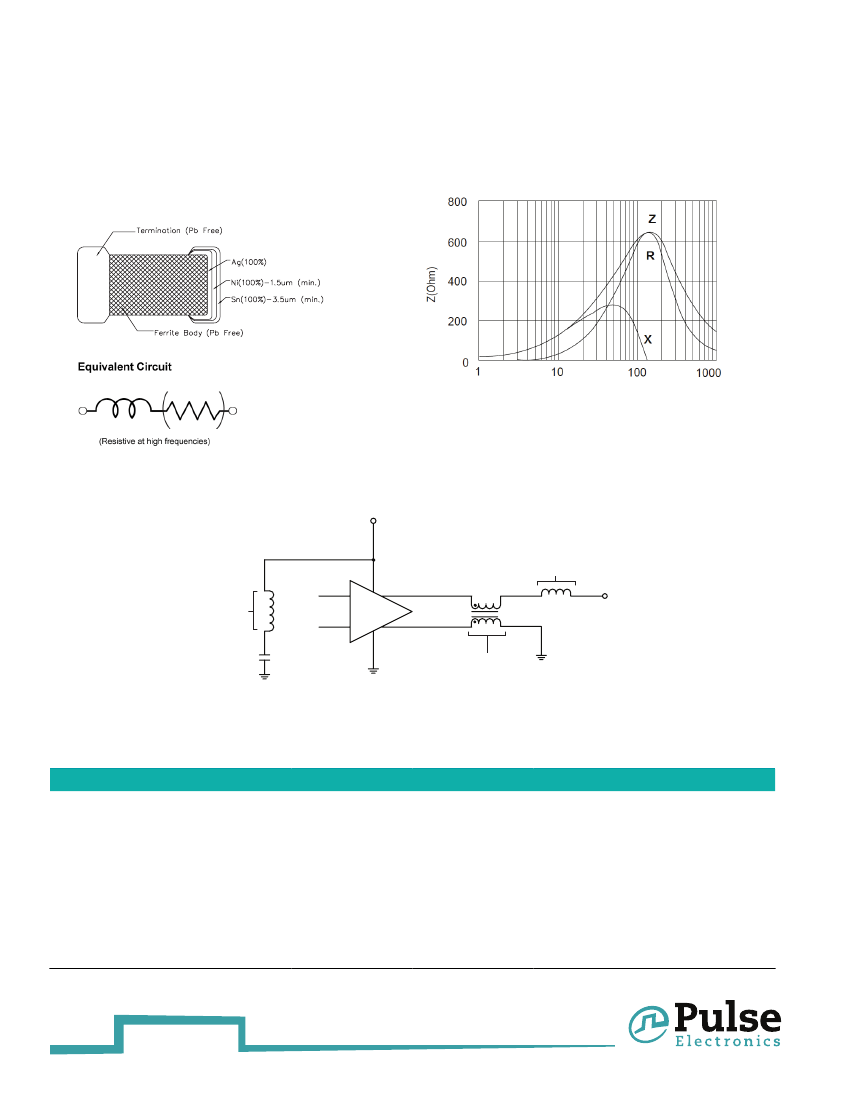

Ferrite beads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Parts number Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Competitor Cross . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

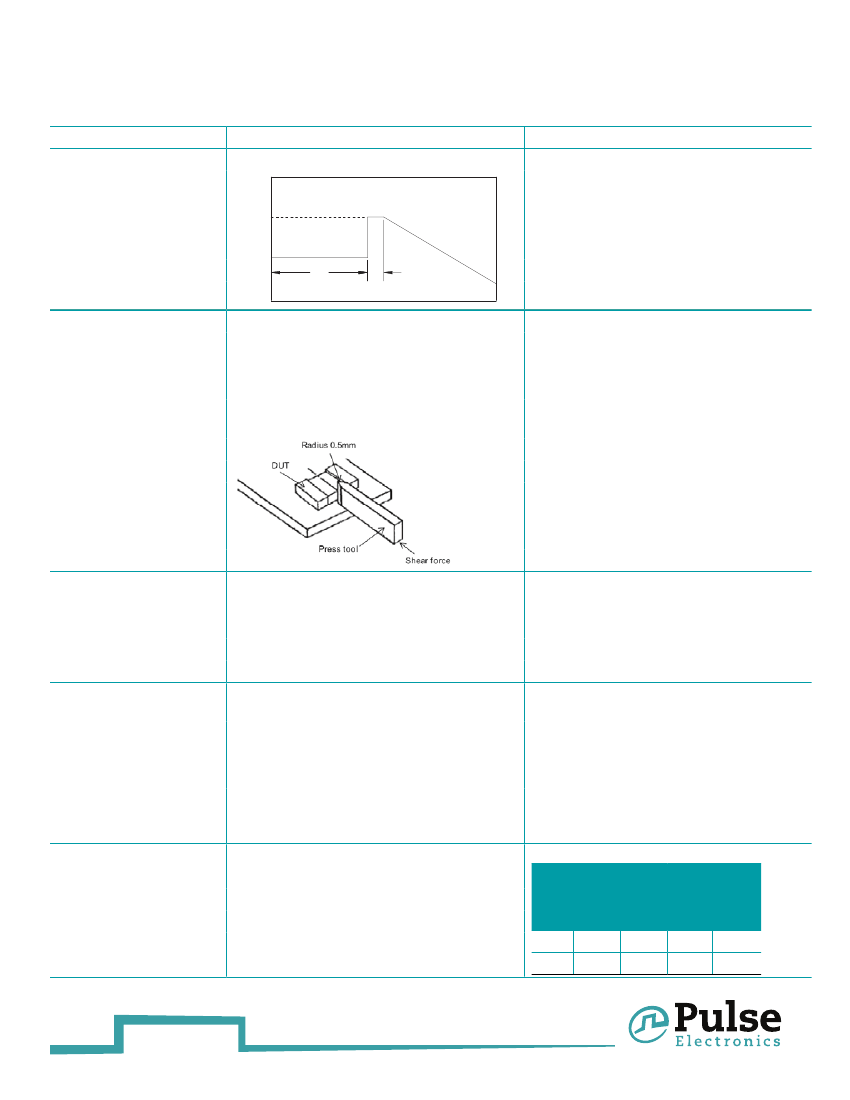

Reliability and Test Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

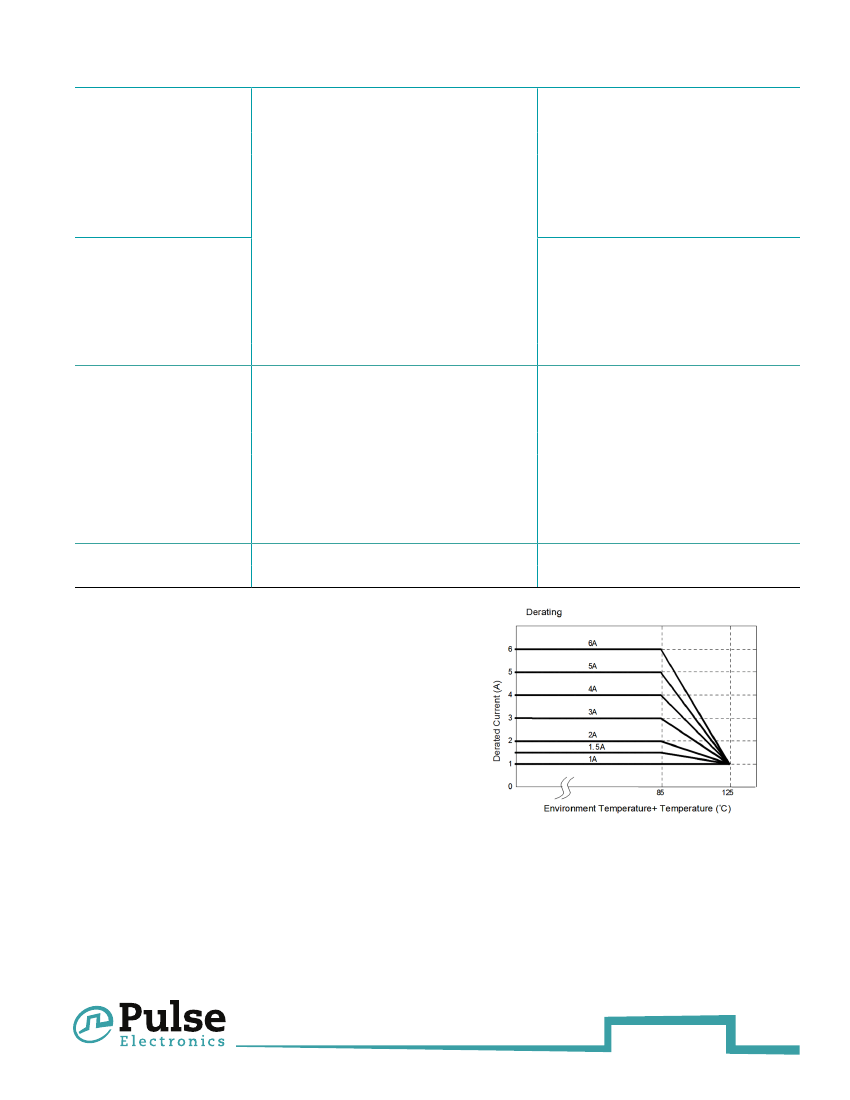

Derating Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Specifications

Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Lead Free Solder re-flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Solder Iron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Solder Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Reel Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Qty/reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Tearing Off Force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Ferrite Bead EMI Suppressor

Single Type - 01005FB, 0201FE, 0402FB, 0603FB & 0805FB Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11

Single GHz Type - 00402HFB & 0603HFB Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13

Array Type - 1206FBA Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

Power Type - 0603PFB, 0805PFB, 1206PFB, & 1806PFB Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

Pulse Jack

WC706.F (12/17)

www.pulseelectronics.com
