10093055-834LF datasheet, PDF - EEWORLD Datasheet

10093055-834LF: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size263KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10093055-834LF Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.157 inch
subject depth	0.177 inch
body length	1.336 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
JESD-609 code	e3
Manufacturer's serial number	10093055
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	34

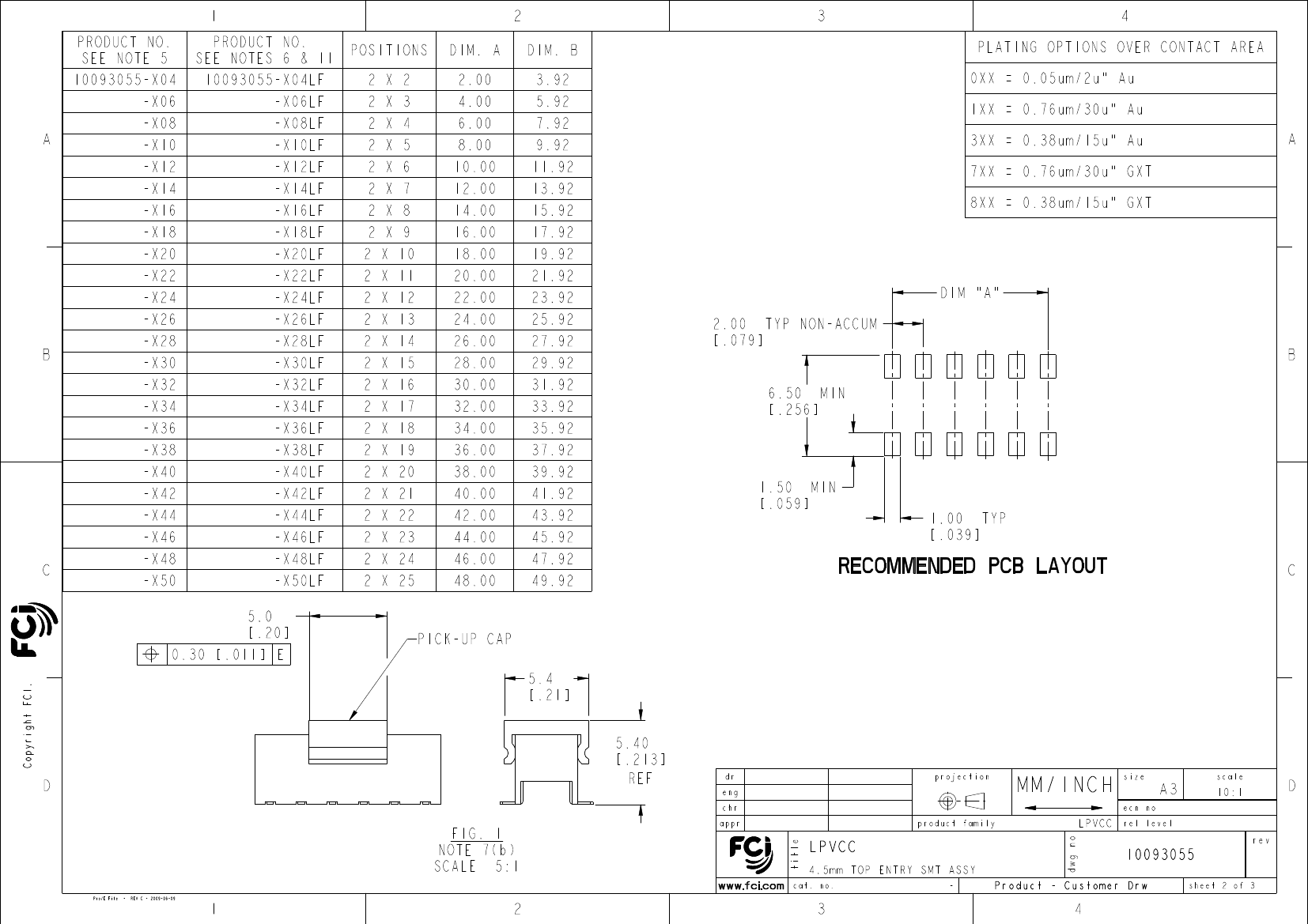

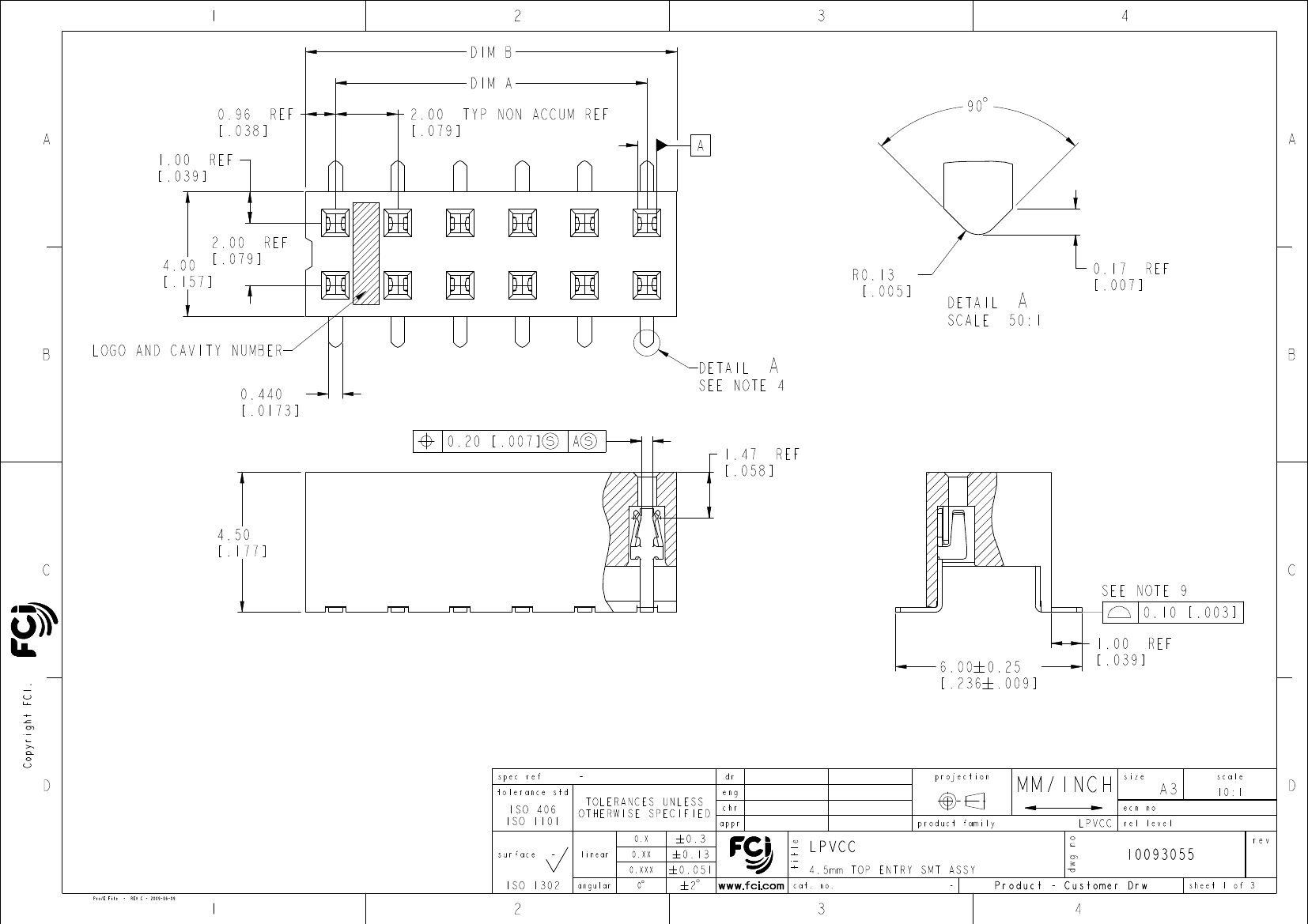

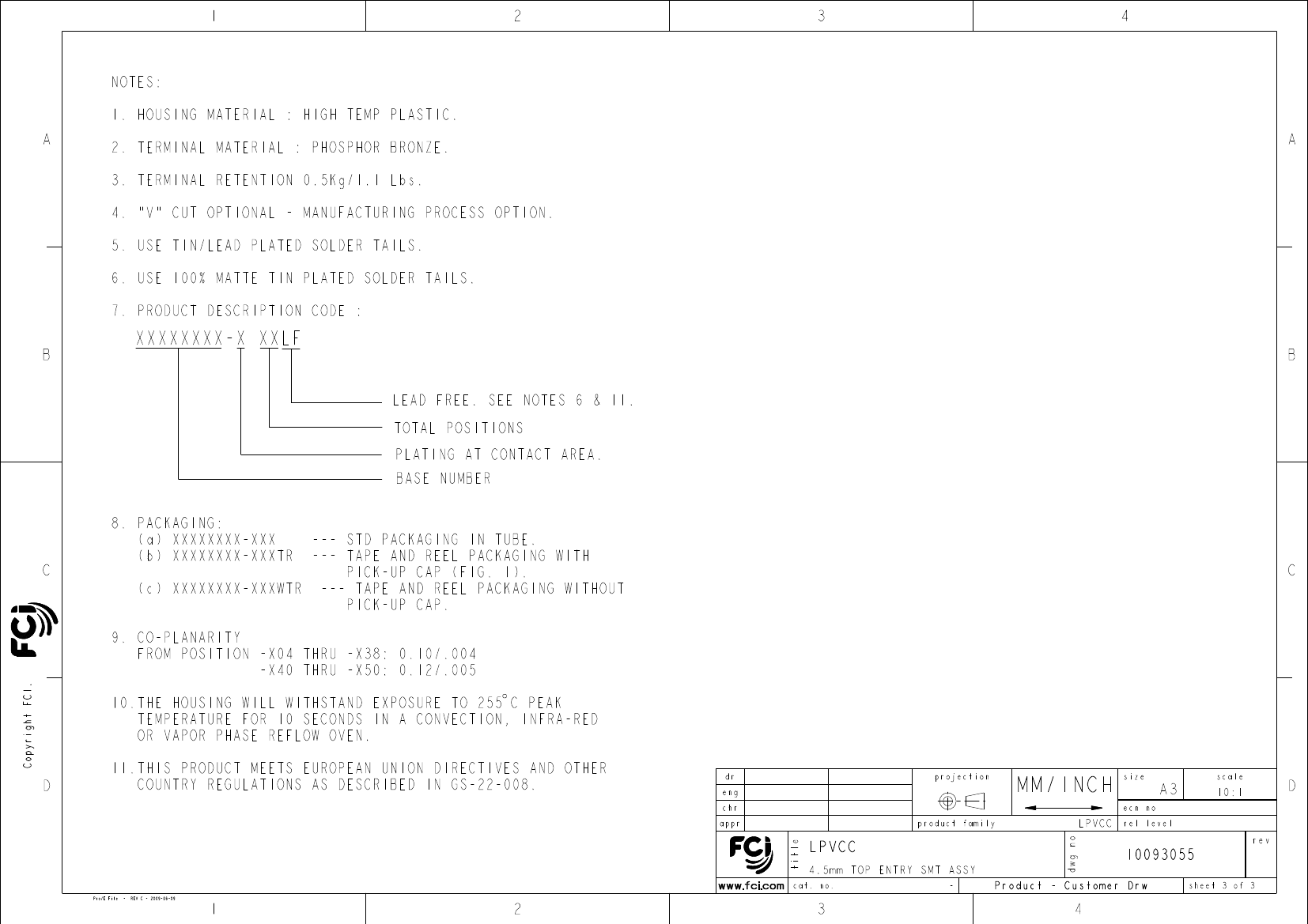

Andrew Yong

Guo-Min Sun

Rick Bian

2010/10/21

2013/04/25

2013/04/28

ELX-N-14629-1

Released

PDS: Rev :E

STATUS:Released

Printed: Apr 29, 2013
