14-56-3096 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 14-56-3096

14-56-3096: Description9 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size165KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

14-56-3096 Overview

9 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

14-56-3096 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SL
body width	0.139 inch
subject depth	0.6 inch
body length	0.899 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)/TIN (75) OVER NICKEL
Contact completed and terminated	GOLD (15)/TIN (75) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4/e3
MIL compliance	NO
Manufacturer's serial number	70400
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	9
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	26 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0014563096

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,

Single Row, Version C, Front Ribs, Wire Size 26, 0.38µm (15µ") Gold (Au), 9 Circuits

Documents:

3D Model

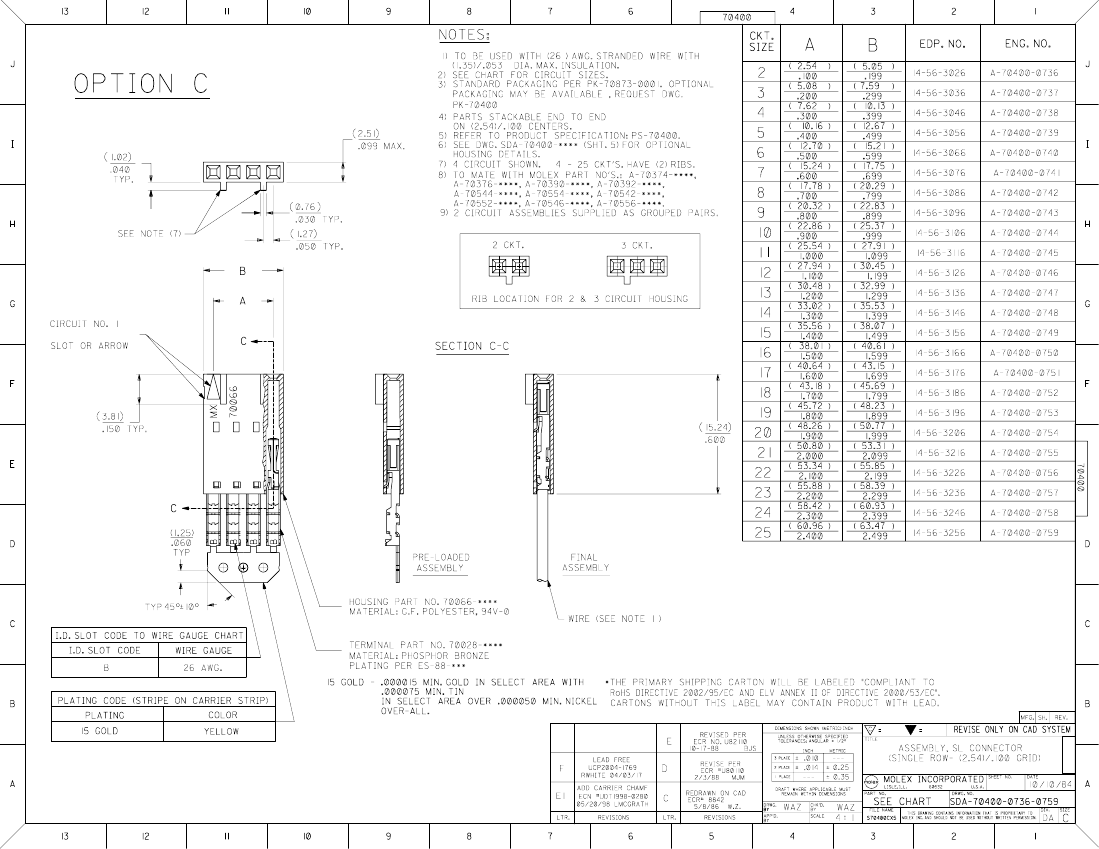

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70400

Terminals Preloaded

Housing

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Black

Vertical

94V-0

None

Phosphor Bronze

Gold

Tin

Polyester Alloy

None

Tube

0.100 In

2.54 mm

0.375

1.875

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Search Parts in this Series

70400Series

Mates With

70544, 70546, 70554 , 70556

Use With

7307 Tinned 28AWG, 7767 Topcoat

28AWG, 24241 Tinned 26AWG, 8996

Topcoat 26AWG, 24226 Tinned 24AWG,

8997 Topcoat 24AWG, 24369 High Flex

26AWG, 24389 High Flex 24AWG

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hawk Semi-

0011201337

Automatice Discrete

Wire Terminator for

SL - Rebuilt US*

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

14-56-3096 Related Products
