A-70475-0251: Description7 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC; Categorysemiconductor Other integrated circuit (IC); File Size147KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-70475-0251 Overview

7 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0014450607

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Male, Single

Row, Version D, Back Ribs, for Wire Size 26, 3.81µm (150µ") Tin (Sn), 7 Circuits

Documents:

3D Model

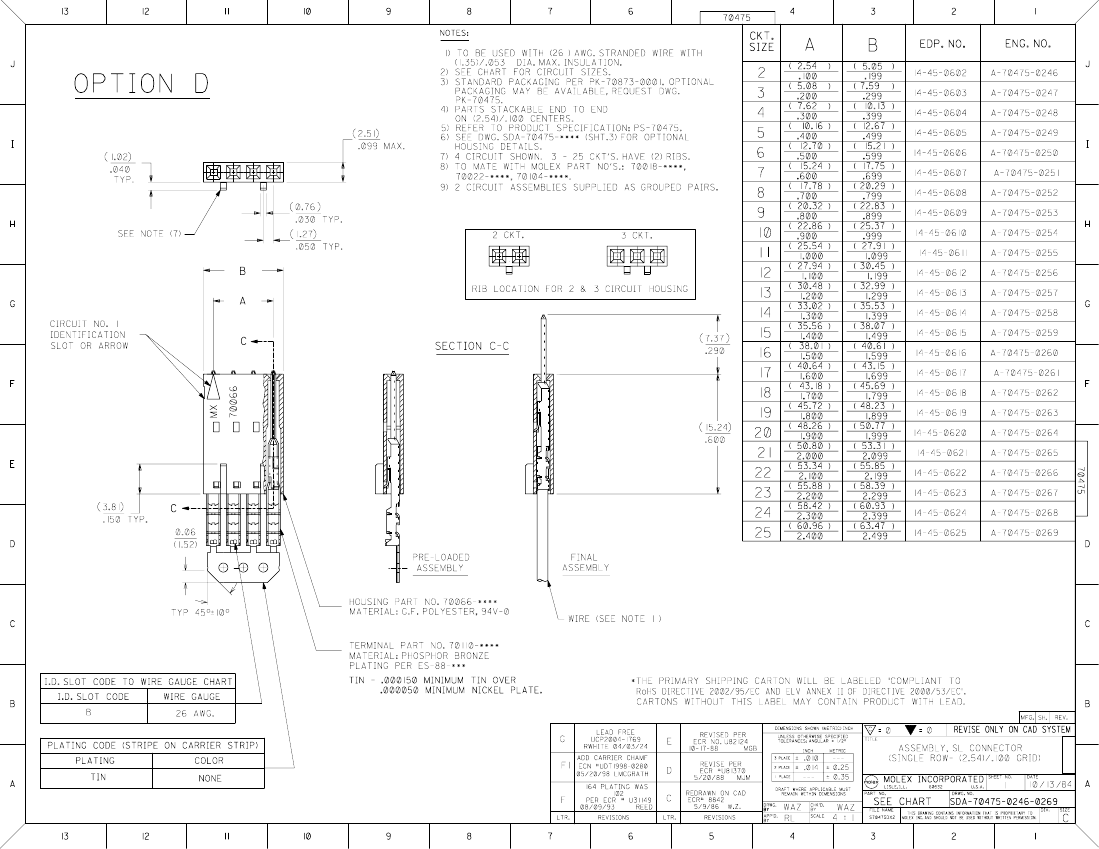

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70475

Terminals Preloaded

Housing

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Vertical

94V-0

None

Tube

0.100 In

2.54 mm

Yes

N/A

-40°C to +105°C

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

70475Series

Mates With

70004 Interim Clip (Single Row), 70013

Interim Clip (Dual Row)

Use With

7307 Tinned 28AWG, 7767 Topcoat

28AWG, 24241 Tinned 26AWG, 8996

Topcoat 26AWG, 24226 Tinned 24AWG,

8997 Topcoat 24AWG, 24369 High Flex

26AWG, 24389 High Flex 24AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.8A

250V

Material Info

Reference - Drawing Numbers

Product Specification

PS-70400

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

A-70475-0251 Related Products

	A-70475-0251	14-45-0607	LHL08G333J	0014450621	0014450618	0014450623	0014450622	0014450625	0014450624
Description	7 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC	7 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC	RADIAL LEADED INDUCTORS	2.54mm (.100") pitch SL? insulation displacement connector assembly, male, single row, version D, back ribs, for wire size 26, 3.81??m (150??") tin (Sn), 21 circuits	2.54mm (.100") pitch SL? insulation displacement connector assembly, male, single row, version D, back ribs, for wire size 26, 3.81??m (150??") tin (Sn), 18 circuits	2.54mm (.100") pitch SL? insulation displacement connector assembly, male, single row, version D, back ribs, for wire size 26, 3.81??m (150??") tin (Sn), 23 circuits	2.54mm (.100") pitch SL? insulation displacement connector assembly, male, single row, version D, back ribs, for wire size 26, 3.81??m (150??") tin (Sn), 22 circuits	2.54mm (.100") pitch SL? insulation displacement connector assembly, male, single row, version D, back ribs, for wire size 26, 3.81??m (150??") tin (Sn), 25 circuits	2.54mm (.100") pitch SL? insulation displacement connector assembly, male, single row, version D, back ribs, for wire size 26, 3.81??m (150??") tin (Sn), 24 circuits
Reach Compliance Code	-	unknow	-	unknow	compliant	unknown	unknown	unknown	unknown
ECCN code	-	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	-	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	-	MALE	-	-	MALE	MALE	MALE	MALE	MALE
DIN compliance	-	NO	-	-	NO	NO	NO	NO	NO
Filter function	-	NO	-	-	NO	NO	NO	NO	NO
IEC compliance	-	NO	-	-	NO	NO	NO	NO	NO
MIL compliance	-	NO	-	-	NO	NO	NO	NO	NO
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	-	NO	-	-	NO	NO	NO	NO	NO
Installation type	-	CABLE	-	-	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	-	1	-	-	1	1	1	1	1
Options	-	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	-	IDC	-	-	IDC	IDC	IDC	IDC	IDC
Total number of contacts	-	7	-	-	18	23	22	25	24
UL Flammability Code	-	94V-0	-	-	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	-	-	1	1	1	1	1
Maker	-	-	-	Molex	Molex	Molex	Molex	Molex	Molex
Is Samacsys	-	-	-	-	N	N	N	N	N
Contact to complete cooperation	-	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
