This document was generated on 05/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0878083001
Active
extreme_powerplus_ssi
5.08mm (.200") Pitch Power, 2.54mm (.100") Pitch Signal, EXTreme PowerPlus™
S-P(B) Receptacle, Through Hole, Right Angle, Beveled Metal Pins, 0.76µm (30µ")
Gold(Au) Plating, 22 Circuits, Power Beta 6, Signal 16, No Recessed Power Circuit,
Lead-free
Documents:
3D Model

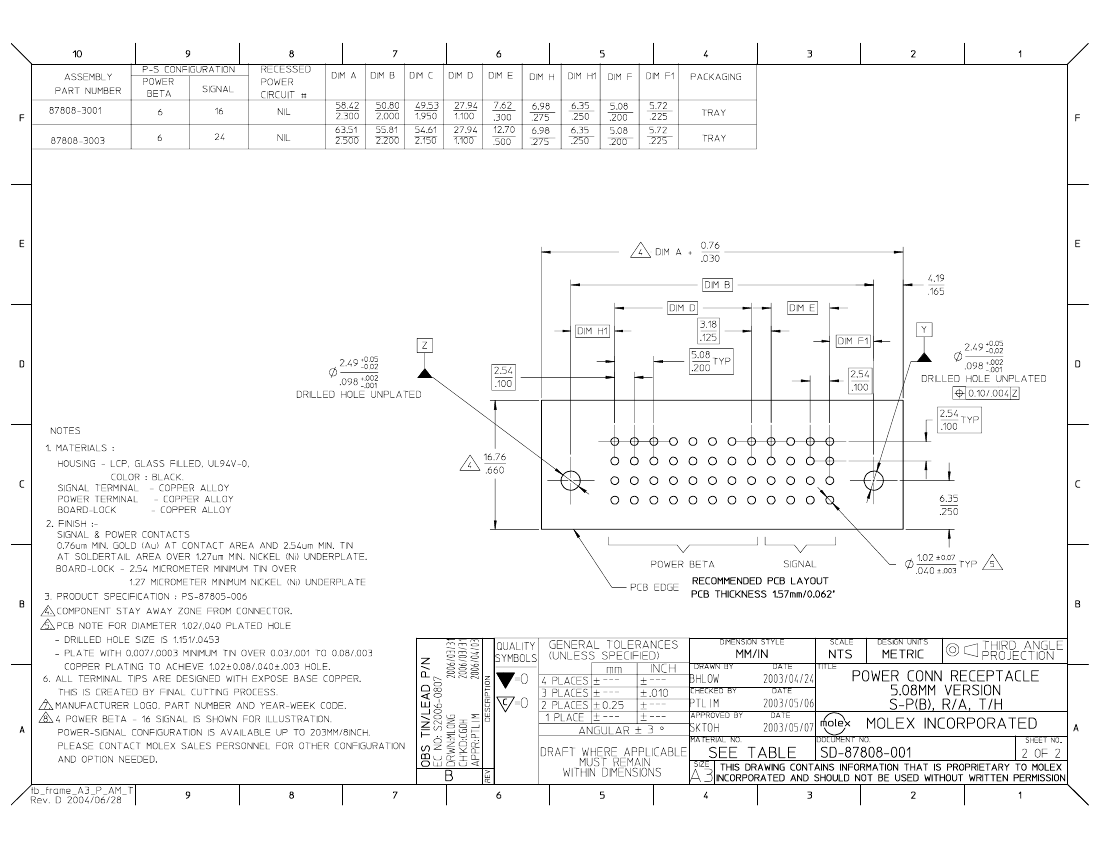

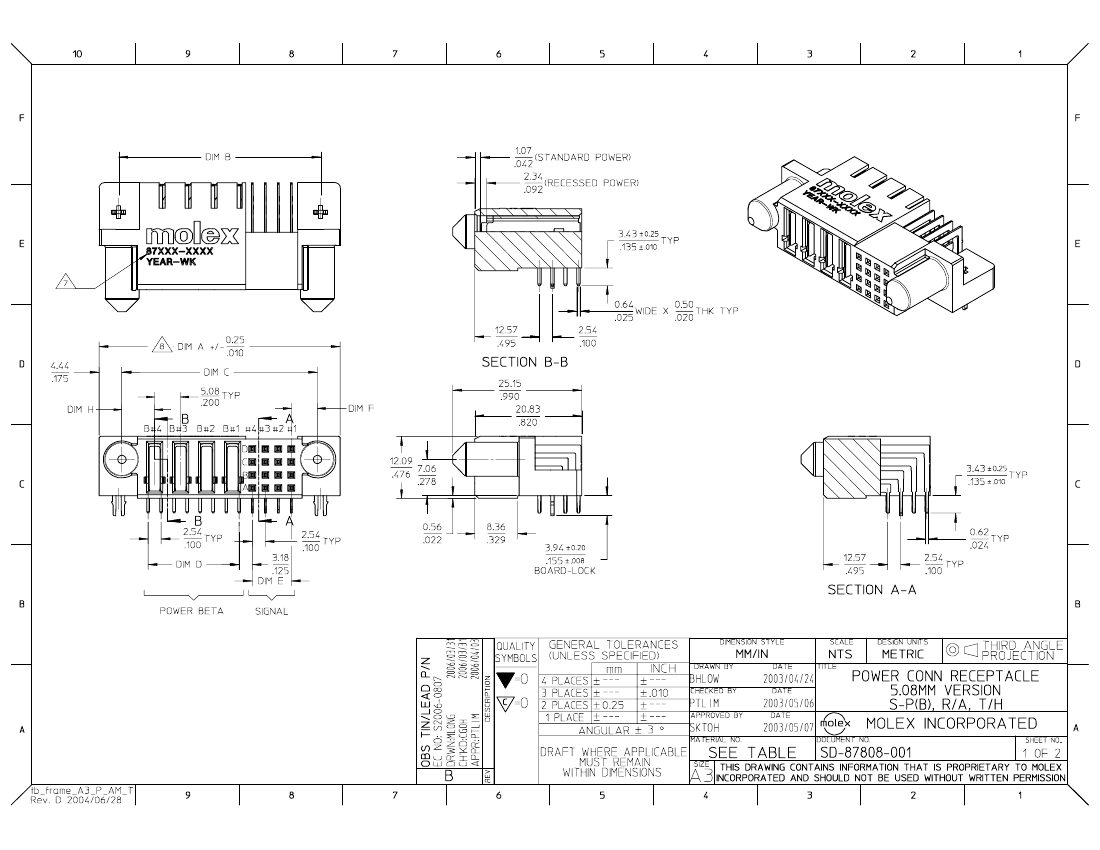

Drawing (PDF)
Product Specification PS-87805-006 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Receptacles
87808
Board-to-Board
Recessed Power Circuit Position: NIL
extreme_powerplus_ssi
EXTreme PowerPlus™
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
22
22
Power Beta 6, Signal 16
Black
100
94V-0
No
Yes
Yes
High Performance Alloy (HPA), Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
1
Right Angle
0.135 In
3.43 mm
Yes
Yes
0.062 In
1.57 mm
Tray
0.100 In, 0.200 In
2.54 mm, 5.08 mm
0.100 In, 0.200 In
2.54 mm, 5.08 mm
30.4
0.76
101.6
2.54
Yes
Search Parts in this Series
87808Series
Mates With
878072002
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Yes
No
Yes
-20°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
30A
250V AC (RMS)
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
10
SMC & Wave Capable (TH only)
3
260
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
AS-87631-018
PS-87805-006
SD-87808-001
This document was generated on 05/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
