87830-1221 Overview

12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

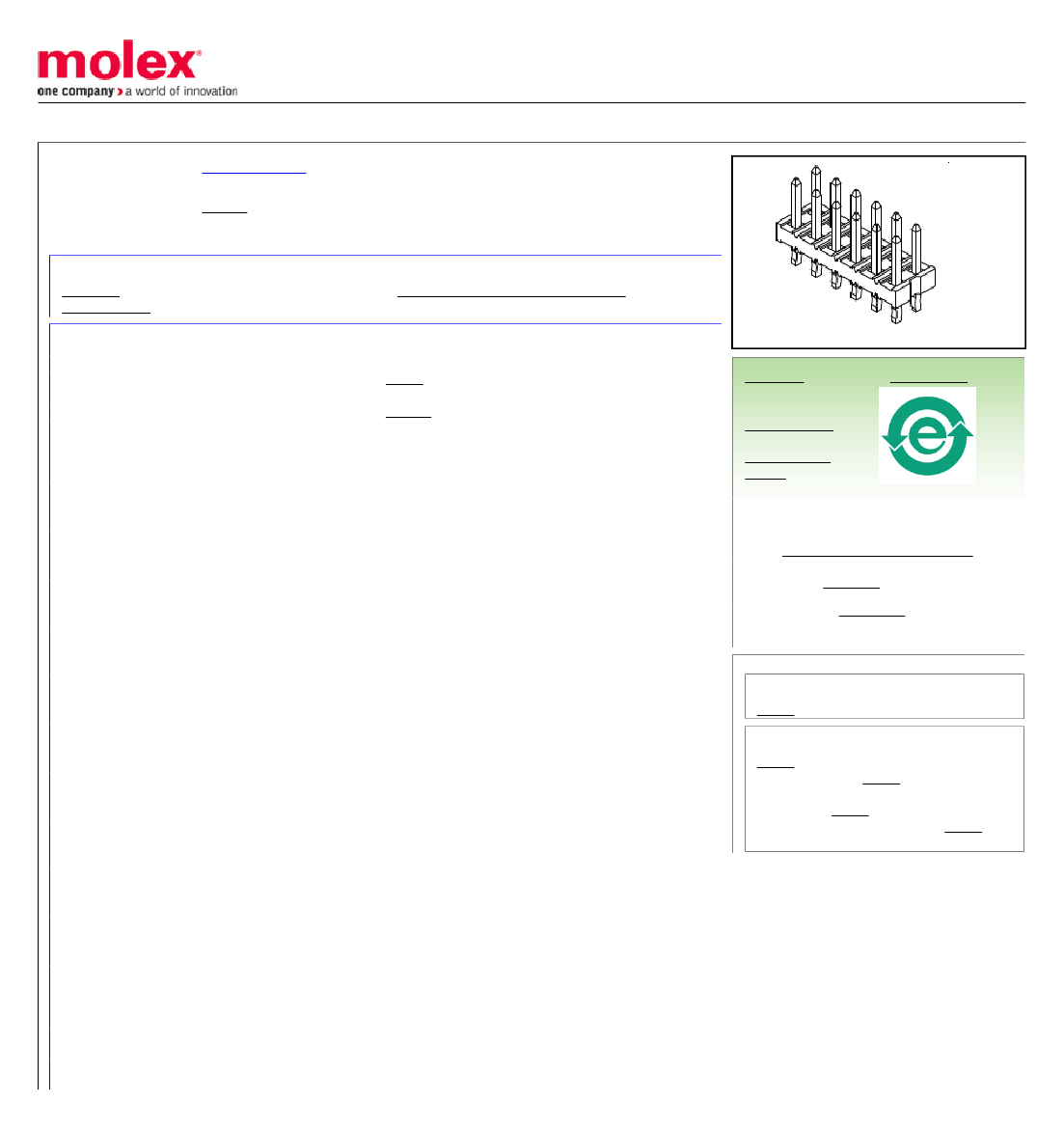

This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0878301221
Active
milligrid
2.00mm (.079") Pitch Milli-Grid™ Straddle Mount Header, 12 Circuits, 0.38µm (15µ")
Gold (Au) Selective Plating, Tray Packaging, Lead-free
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
87830
Board-to-Board
milligrid
Milli-Grid™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
12
12
No
No
No
None
None
Gold
Tin
2
Vertical
No
None
0.039 In
1.00 mm
Tray
0.079 In
2.00 mm
0.079 In
2.00 mm
15
0.38
75
1.90
No
No
No
Yes
-55°C to +105°C
Straddle Mount
Search Parts in this Series
87830Series
Mates With
79107 Board-to-Board Top Entry Through
Hole Receptacle. 79108 Board-to-Board
FFC/FPC Top Entry Through Hole
Receptacle. 79109 Board-to-Board Top/
Bottom Entry SMT Receptacle. 87381
Board-to-Board Top Entry SMT Receptacle
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
125V
Material Info

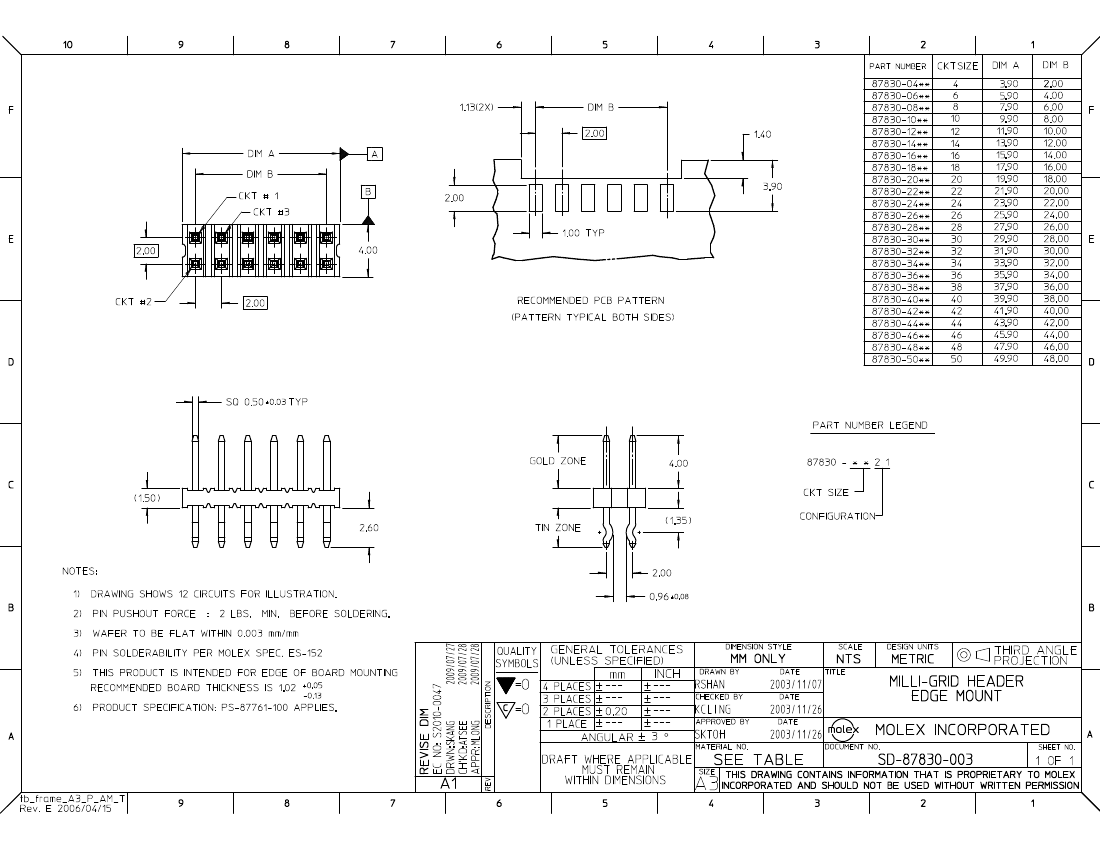

Reference - Drawing Numbers
