87759-3675: Description36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size283KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87759-3675 Overview

36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

87759-3675 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TAPE AND REEL PACKAGE
body width	0.157 inch
subject depth	0.059 inch
body length	1.413 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	87759
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2418 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

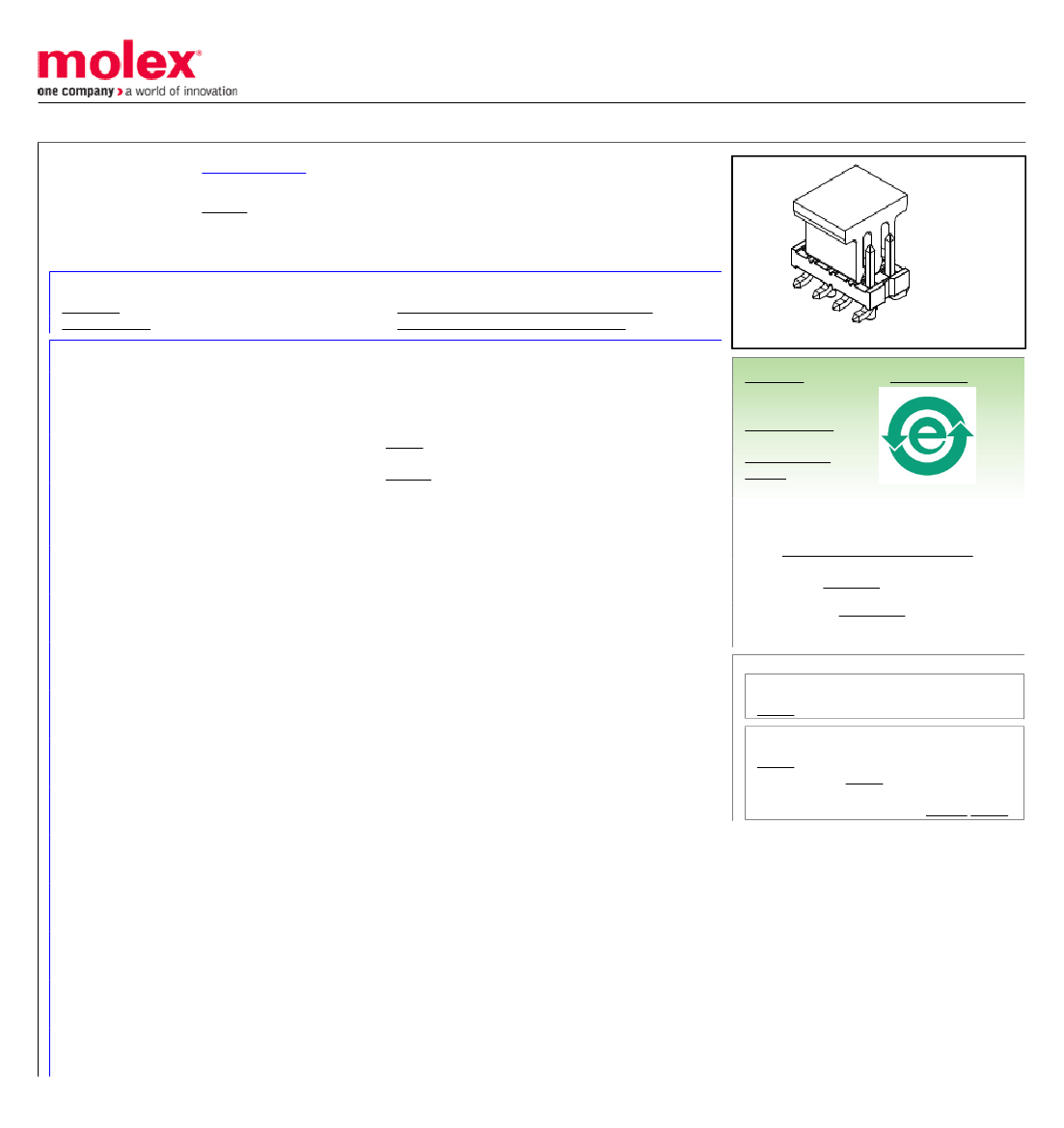

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0877593675

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, 36 Circuits, 0.76µm

(30µ") Gold (Au) Selective Plating, with Pick-and-Place Cap, Tape and Reel Packaging,

without Press-fit Plastic Pegs, Lead-free

Documents:

3D Model

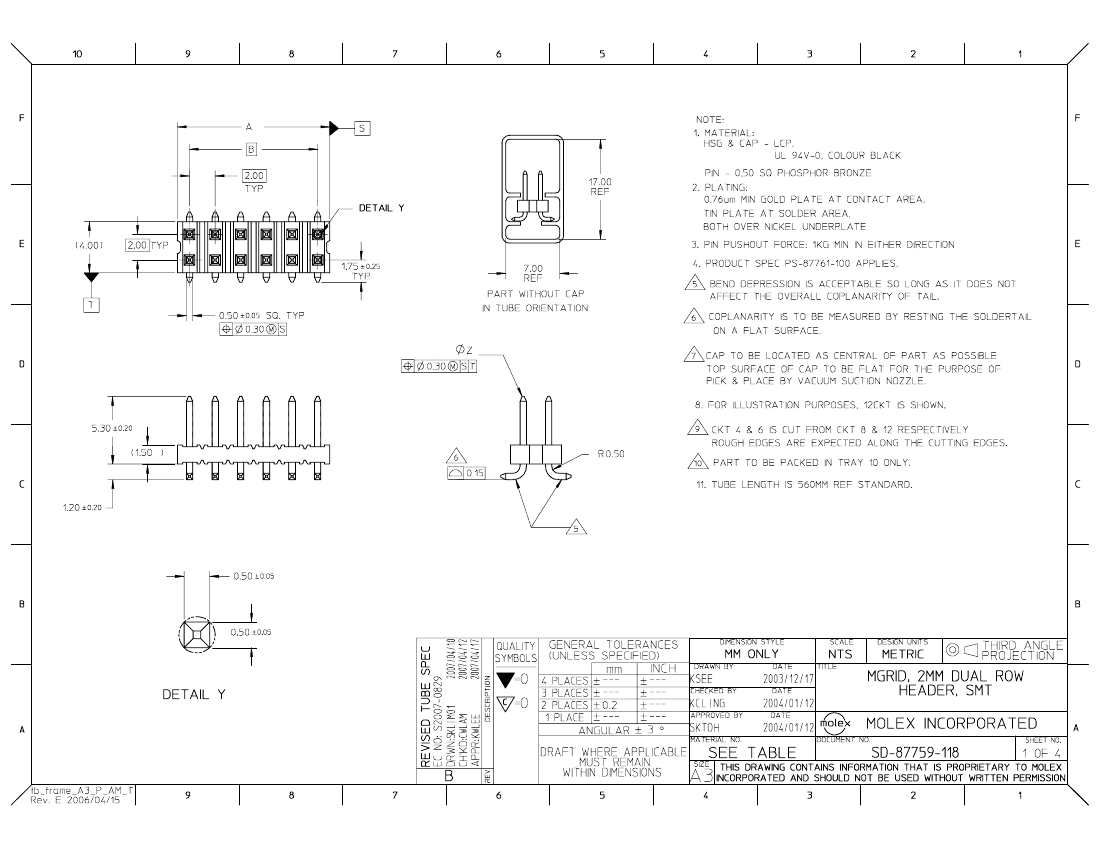

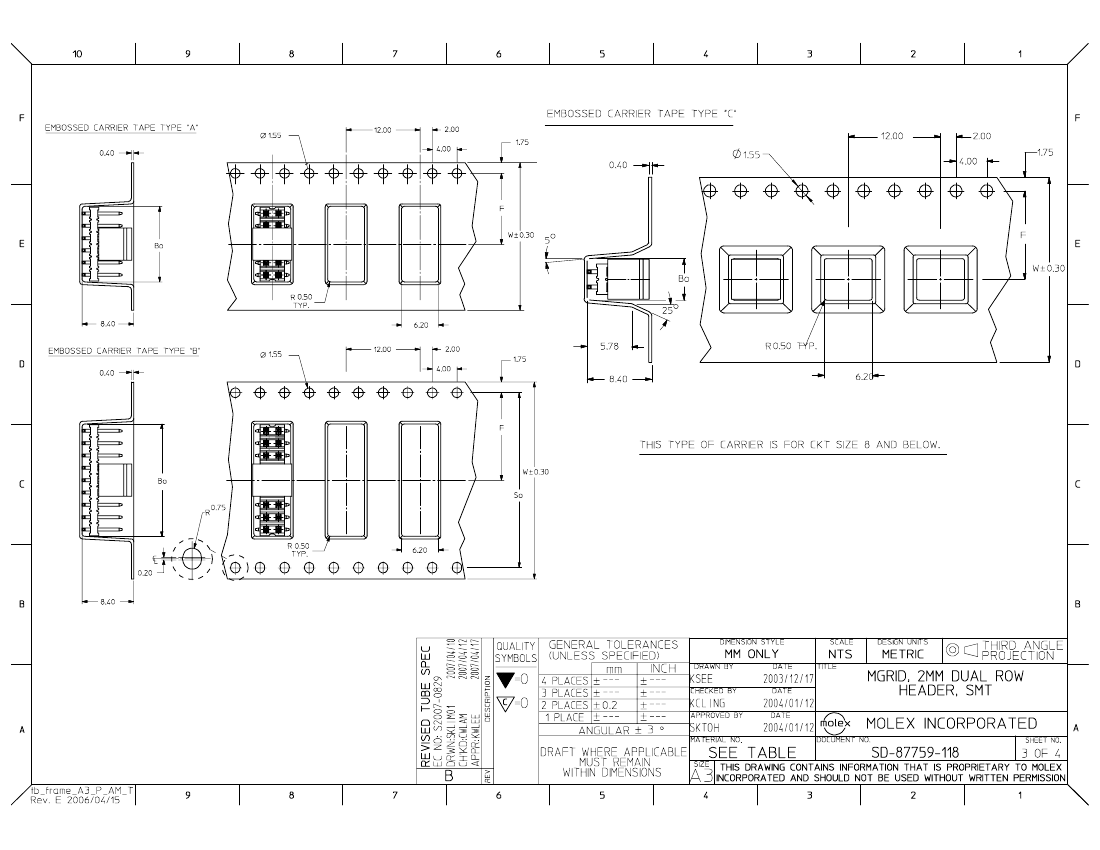

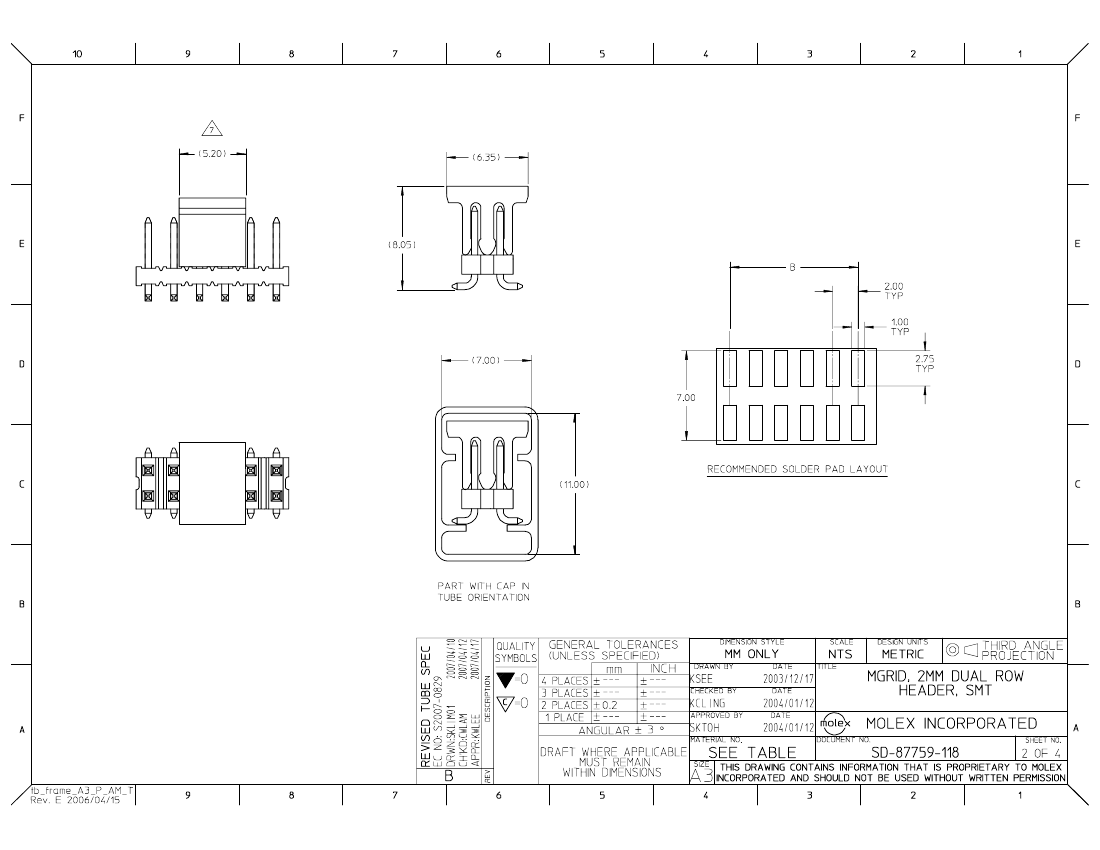

Drawing (PDF)

Product Specification PS-87761-100 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87759

Board-to-Board

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Shrouded

Stackable

Temperature Range - Operating

Yes

Black

100

94V-0

None

0.150 In

3.80 mm

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

None

Embossed Tape on Reel

0.079 In

2.00 mm

0.079 In

2.00 mm

0.76

Pick and Place Cap

Yes

-55°C to +105°C

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87759Series

Mates With

79107 Milli-Grid™ Receptacle, Vertical,

Through Hole. 79108 Milli-Grid™ Flex-to-

Board, Vertical Receptacle. Milli-Grid™

Receptacle, Surface Mount. 79109. 87381

87759-3675 Related Products

	87759-3675	0877593675
Description	36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT
