70400-0003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 70400-0003

70400-0003: Description4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector; File Size153KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

70400-0003 Overview

4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

70400-0003 Parametric

Parameter Name	Attribute value
Total number of contacts	4
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	70400
Connection Type	TWO PART BOARD CONNECTOR
Connector male and female	FEMALE
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Number of load rows	1
Terminal type	IDC
UL flammability code	94V-0

Preview

Download Datasheet

View All

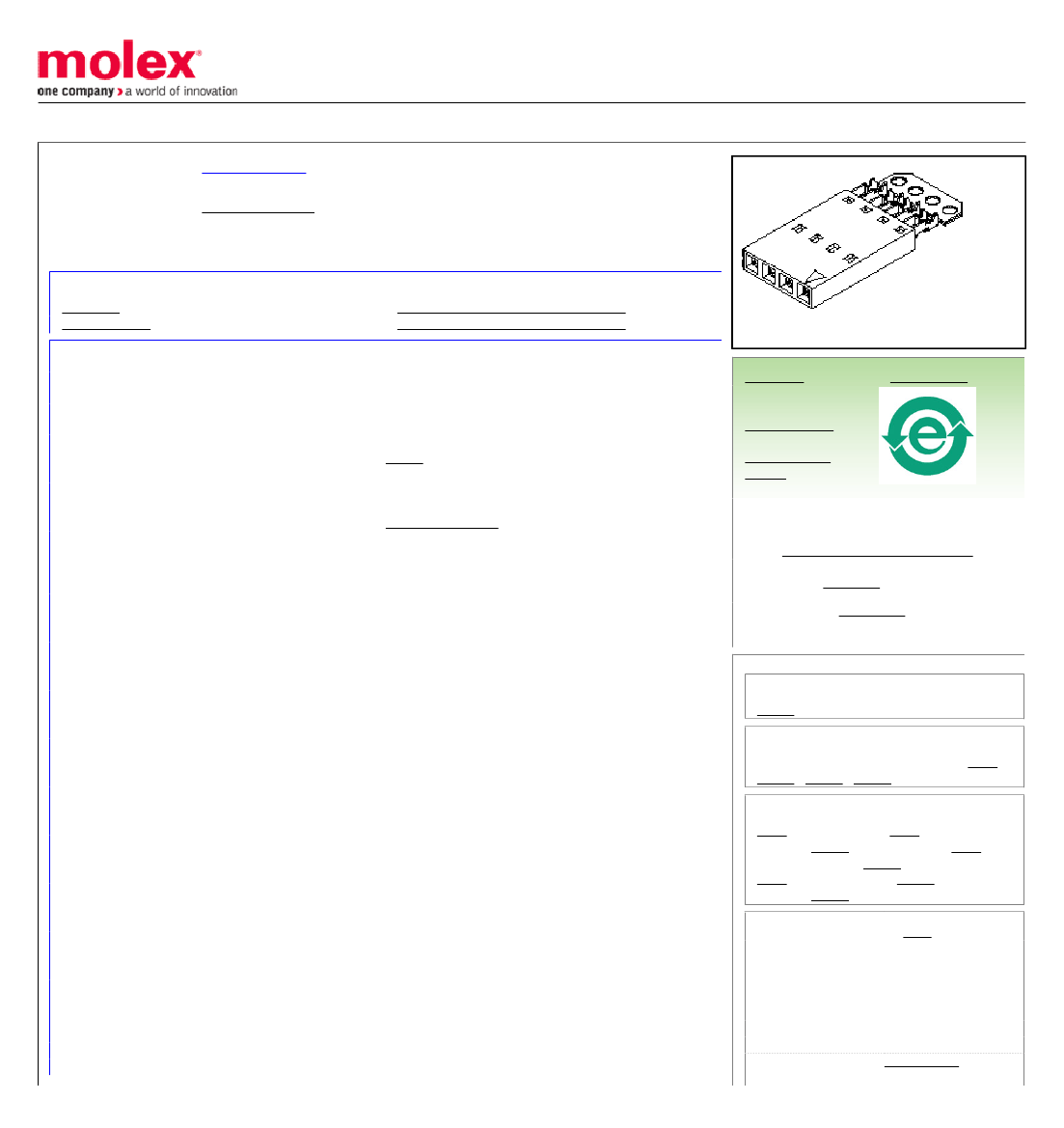

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0014600041

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,

Single Row, Version A, Nonpolarized, Wire Size 24, 3.81µm (150µ") Tin/Lead (SnPb), 4

Circuits

Documents:

3D Model

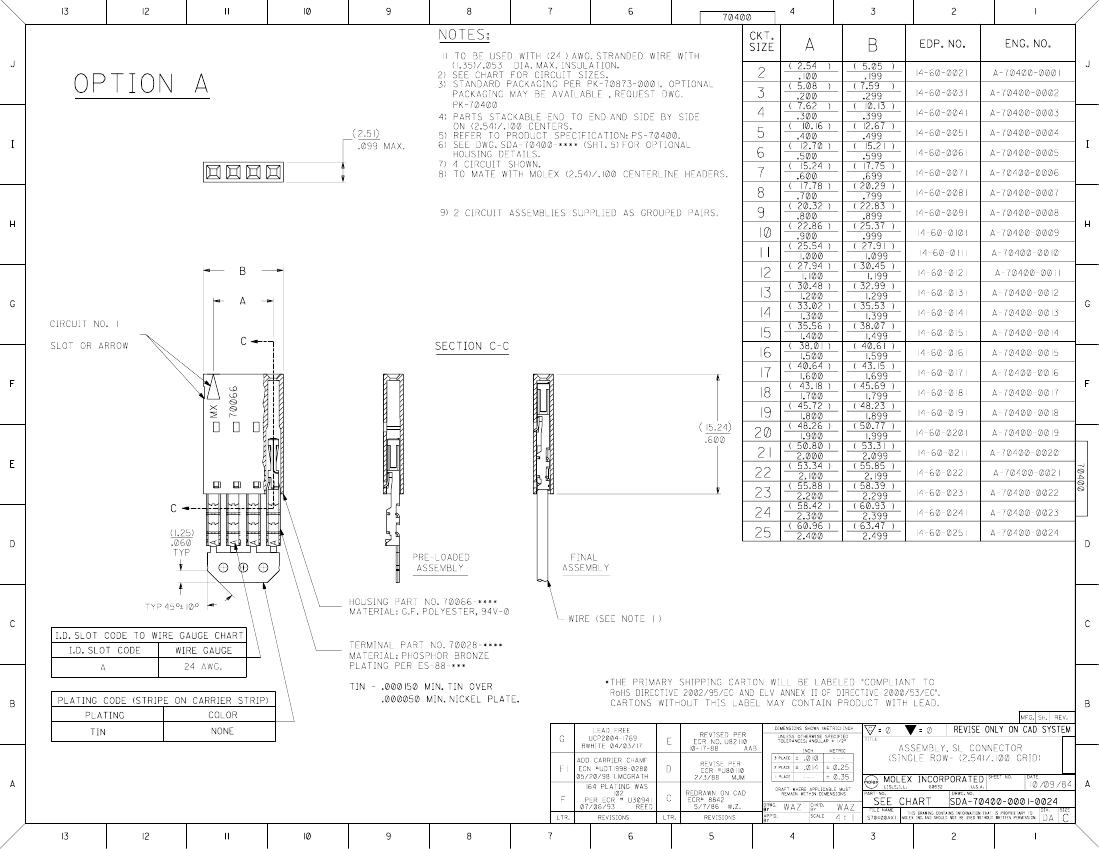

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Overview

Product Name

Ribbon Cable / Wire Trap Connectors

70400

Terminals Preloaded

Housing

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Black

Vertical

94V-0

None

Phosphor Bronze

Tin

Polyester Alloy

None

Tube

0.100 In

2.54 mm

150

3.75

1.875

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm (.053") max.

Discrete Wire, Ribbon Cable

Search Parts in this Series

70400Series

Mates With

Single Row headers and housings, 8624 ,

70203 , 42375 , 42377

Use With

7307 Tinned 28AWG, 7767 Topcoat

28AWG, 24241 Tinned 26AWG, 8996

Topcoat 26AWG, 24226 Tinned 24AWG,

8997 Topcoat 24AWG, 24369 High Flex

26AWG, 24389 High Flex 24AWG

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hawk Semi-

0011201337

Automatice Discrete

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

70400-0003 Related Products

	70400-0003	A-70400-0003	0014600041
Description	4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	2.54mm (.100") pitch SL? insulation displacement connector assembly, female, single row, version A, nonpolarized, wire size 24, 3.81??m (150??") tin/lead (snpb)
Total number of contacts	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Installation type	CABLE	CABLE	CABLE
Lead-free	Yes	Yes	-
EU RoHS regulations	Yes	Yes	-
state	ACTIVE	ACTIVE	-
Manufacturer Series	70400	70400	-
Connection Type	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	-
Connector male and female	FEMALE	FEMALE	-
collocation information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Number of load rows	1	1	-
Terminal type	IDC	IDC	-
UL flammability code	94V-0	94V-0	-
