87834-2045: Description2.54mm (.100) Pitch C-GridÂ® Header, Dual Row, Low Profile, Vertical, Through Hole, Shrouded, Lead-free, 20 Circuits, 0.13Î¼m (5Î¼) Gold (Au) Selective Plating, Black; File Size123KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

87834-2045 Overview

2.54mm (.100) Pitch C-GridÂ® Header, Dual Row, Low Profile, Vertical, Through Hole, Shrouded, Lead-free, 20 Circuits, 0.13Î¼m (5Î¼) Gold (Au) Selective Plating, Black

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878342045

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid® Header, Dual Row, Low Profile, Vertical, Through Hole,

Shrouded, Lead-free, 20 Circuits, 0.13µm (5µ) Gold (Au) Selective Plating, Black,

Center Polarization Slot, with Press-fit Locating Plastic Pegs

Documents:

3D Model

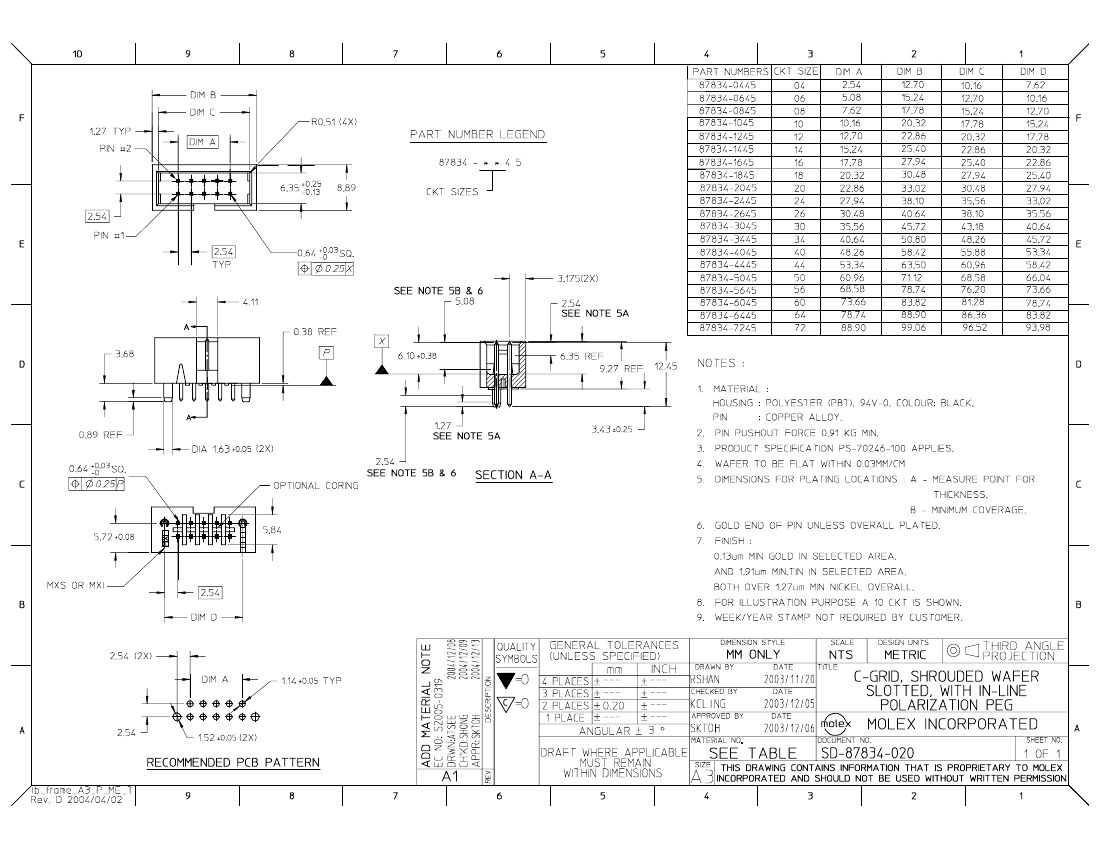

Drawing (PDF)

Product Specification PS-70246-100 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87834

Wire-to-Board

cgrid__sl_products

C-Grid®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

None

Gold

Tin

Polyester

Vertical

0.135 In

3.43 mm

Yes

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

5.2

0.13

75.2

1.88

Center Slot

Yes

Fully

-55°C to +120°C

Through Hole

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87834Series

Mates With

.050" pitch ribbon cable connectors
