14-44-2511

Description
11 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC
CategoryThe connector    The connector
File Size143KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

14-44-2511 Overview

11 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC

14-44-2511 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
Other featuresSL
body width0.139 inch
subject depth0.6 inch
body length1.099 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability50 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number70475
Plug contact pitch0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts11
UL Flammability Code94V-0
Maximum wire diameter24 AWG
Minimum wire diameter24 AWG
This document was generated on 05/20/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0014442511
Active
cgrid__sl_products
2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Male, Single
Row, Version D, Back Ribs, for Wire Size 24, 0.76µm (30µ") Gold (Au), 11 Circuits
Documents:
3D Model

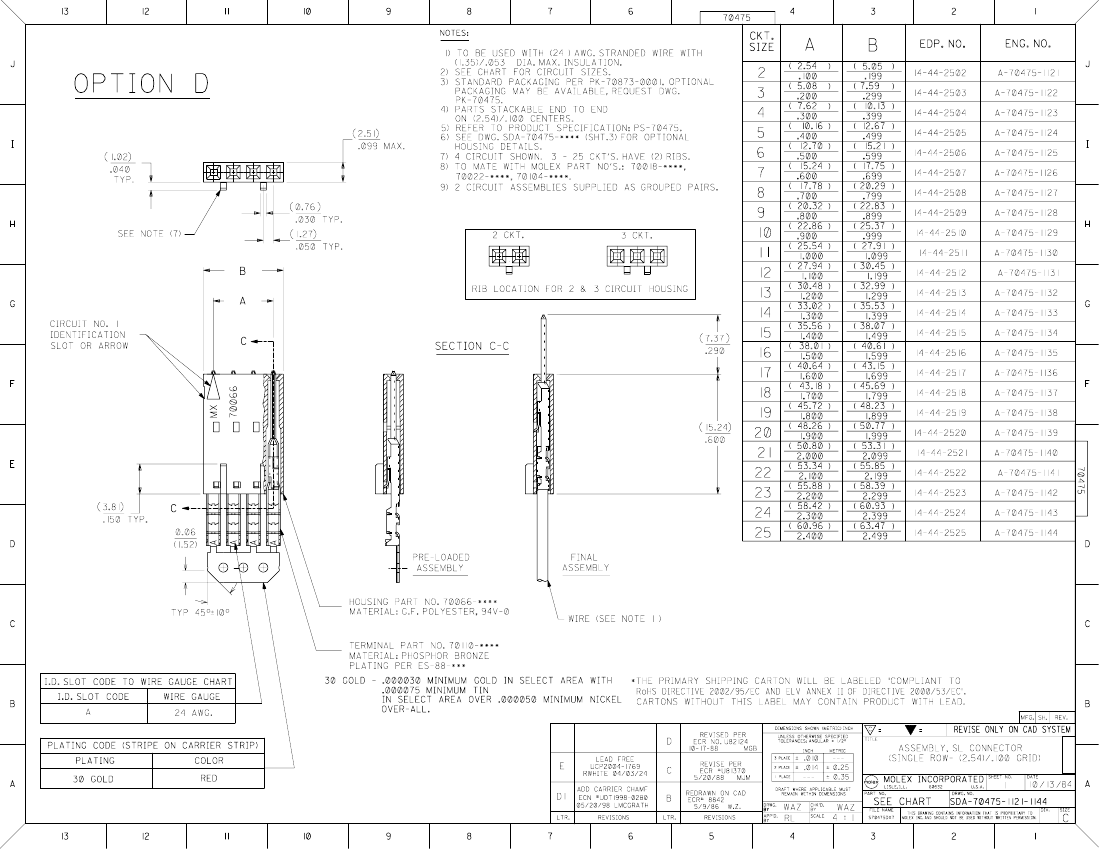

Drawing (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Overview
Product Name
Ribbon Cable / Wire Trap Connectors
70475
Terminals Preloaded
Housing
No
cgrid__sl_products
SL™
Physical
Circuits (Loaded)
Durability (mating cycles max)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
11
50
Vertical
94V-0
None
1
None
Tube
0.100 In
2.54 mm
No
Yes
N/A
-40°C to +105°C
1.35mm (.053") max.
24
Discrete Wire, Ribbon Cable
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
70475Series
Mates With
70004 Interim Clip (Single Row), 70013
Interim Clip (Dual Row)
Use With
7307 Tinned 28AWG, 7767 Topcoat
28AWG, 24241 Tinned 26AWG, 8996
Topcoat 26AWG, 24226 Tinned 24AWG,
8997 Topcoat 24AWG, 24369 High Flex
26AWG, 24389 High Flex 24AWG
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Material Info
Reference - Drawing Numbers
Product Specification
PS-70400
This document was generated on 05/20/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
