2N2328E3 datasheet, PDF - EEWORLD Datasheet

2N2328E3: DescriptionSilicon Controlled Rectifier, 1.6A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-205AD, TO-39, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size158KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

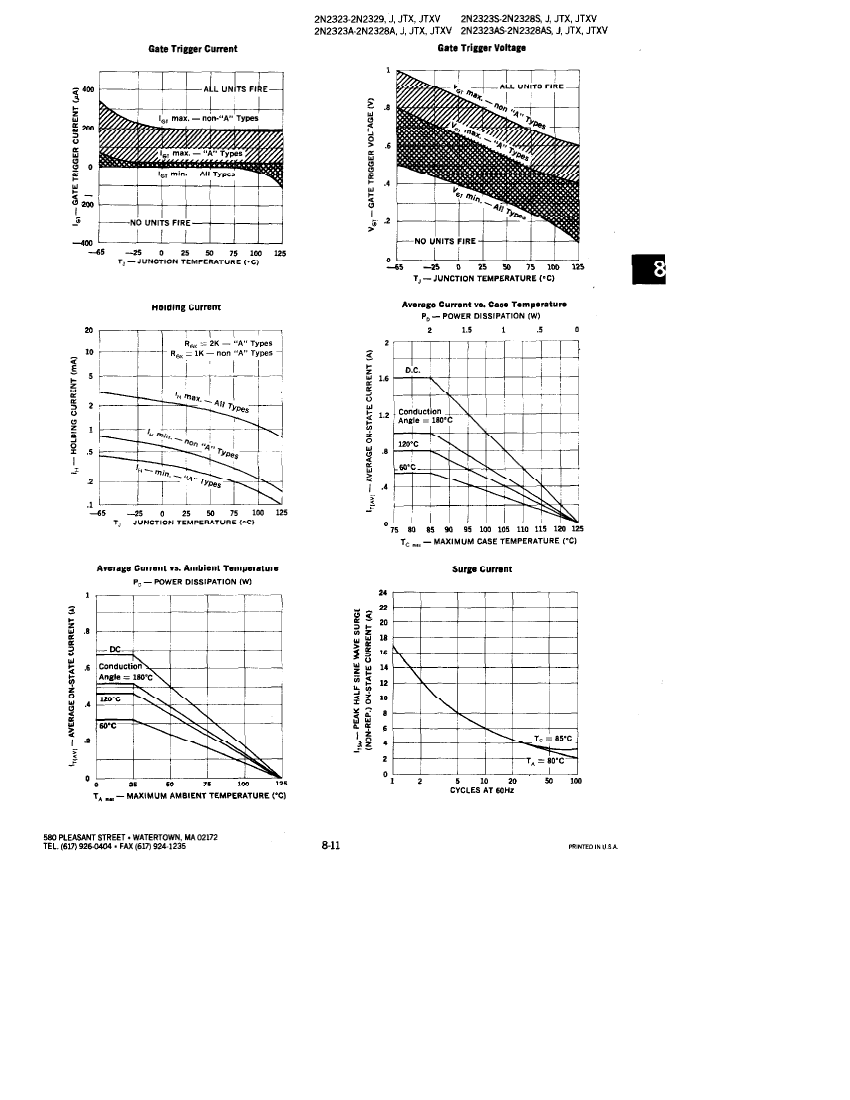

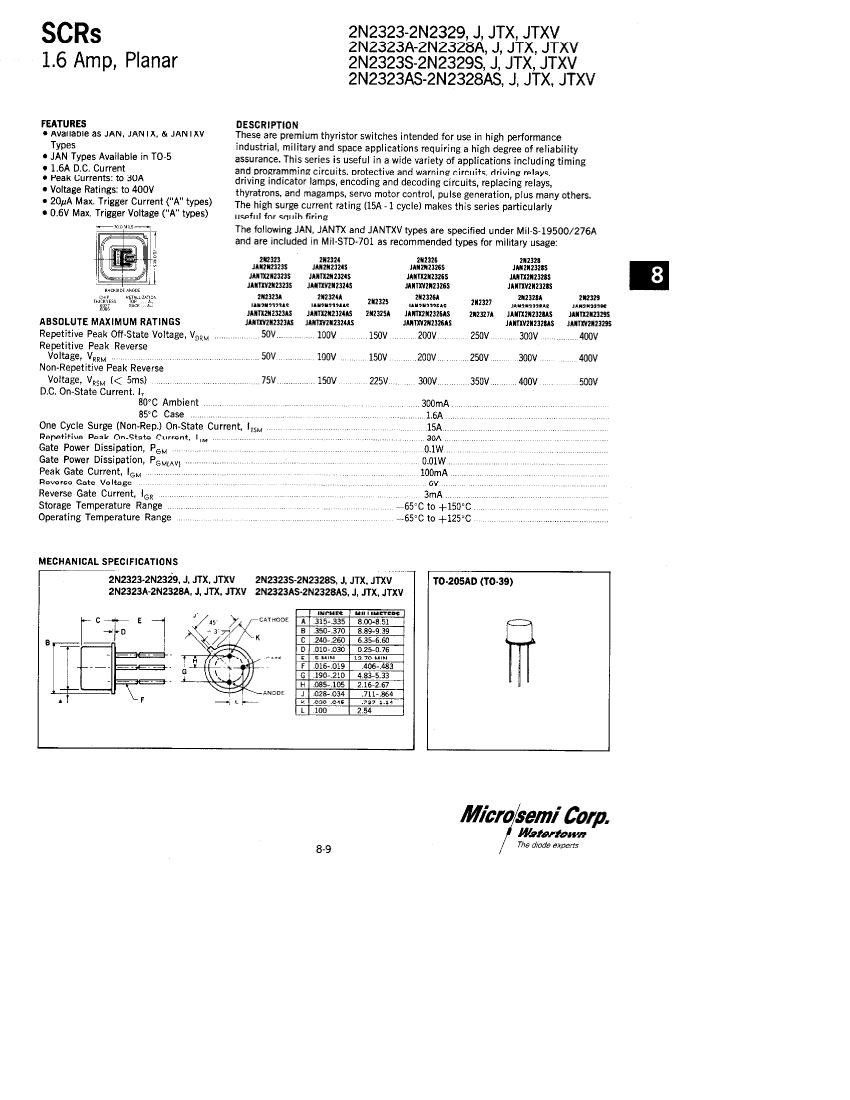

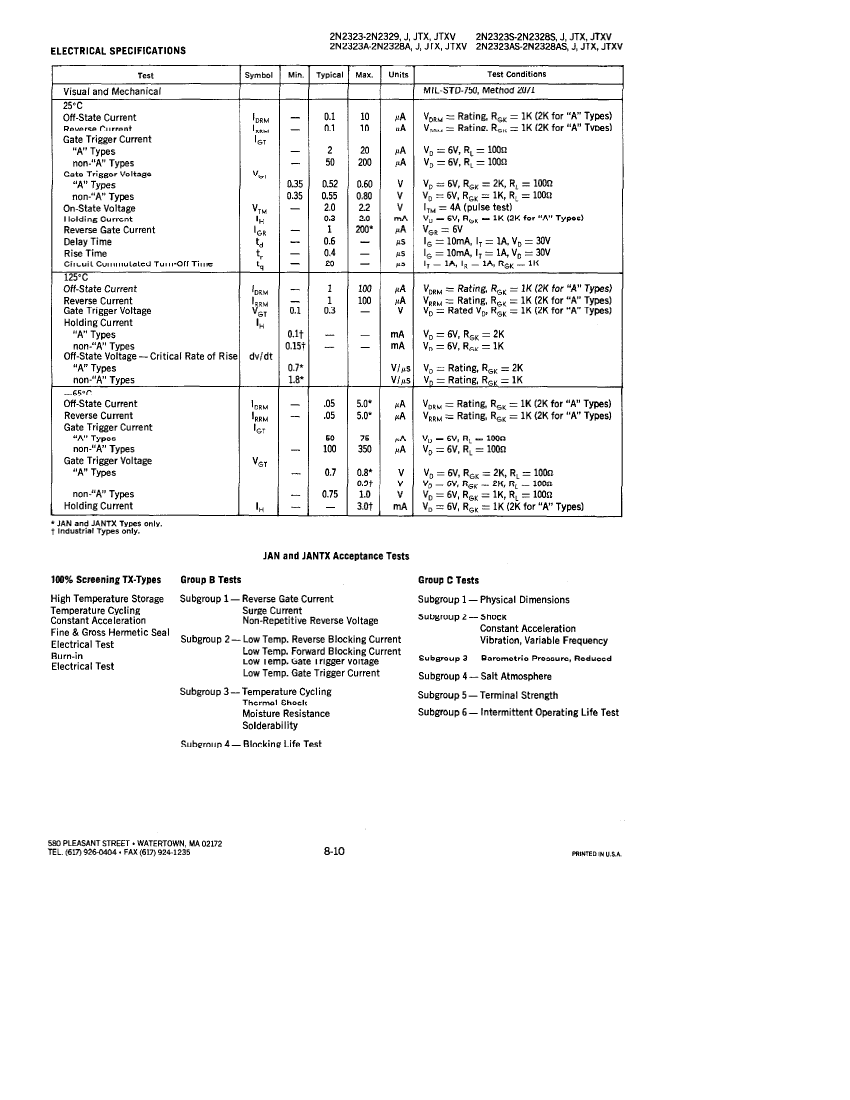

2N2328E3 Overview

Silicon Controlled Rectifier, 1.6A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-205AD, TO-39, 3 PIN

Parameter Name	Attribute value
Maker	Microsemi
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Maximum rms on-state current	1.6 A
Off-state repetitive peak voltage	300 V
Repeated peak reverse voltage	300 V
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Trigger device type	SCR

	2N2328E3	2N2323AE3	2N2326AE3	ATE1P-5F3-10-Z
Description	Silicon Controlled Rectifier, 1.6A I(T)RMS, 300V V(DRM), 300V V(RRM), 1 Element, TO-205AD, TO-39, 3 PIN	Silicon Controlled Rectifier, 1.6A I(T)RMS, 50V V(DRM), 50V V(RRM), 1 Element, TO-205AD, TO-39, 3 PIN	Silicon Controlled Rectifier, 1.6A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-205AD, TO-39, 3 PIN	Subminiature Toggle Switch
Maker	Microsemi	Microsemi	Microsemi	-
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	-
Reach Compliance Code	unknown	unknown	unknown	-
ECCN code	EAR99	EAR99	EAR99	-
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	-
Configuration	SINGLE	SINGLE	SINGLE	-
Maximum DC gate trigger current	0.2 mA	0.02 mA	0.02 mA	-
JEDEC-95 code	TO-205AD	TO-205AD	TO-205AD	-
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	-
Number of components	1	1	1	-
Number of terminals	3	3	3	-
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-
Package body material	METAL	METAL	METAL	-
Package shape	ROUND	ROUND	ROUND	-
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-
Maximum rms on-state current	1.6 A	1.6 A	1.6 A	-
Off-state repetitive peak voltage	300 V	50 V	200 V	-
Repeated peak reverse voltage	300 V	50 V	200 V	-
surface mount	NO	NO	NO	-
Terminal form	WIRE	WIRE	WIRE	-
Terminal location	BOTTOM	BOTTOM	BOTTOM	-
Trigger device type	SCR	SCR	SCR	-
