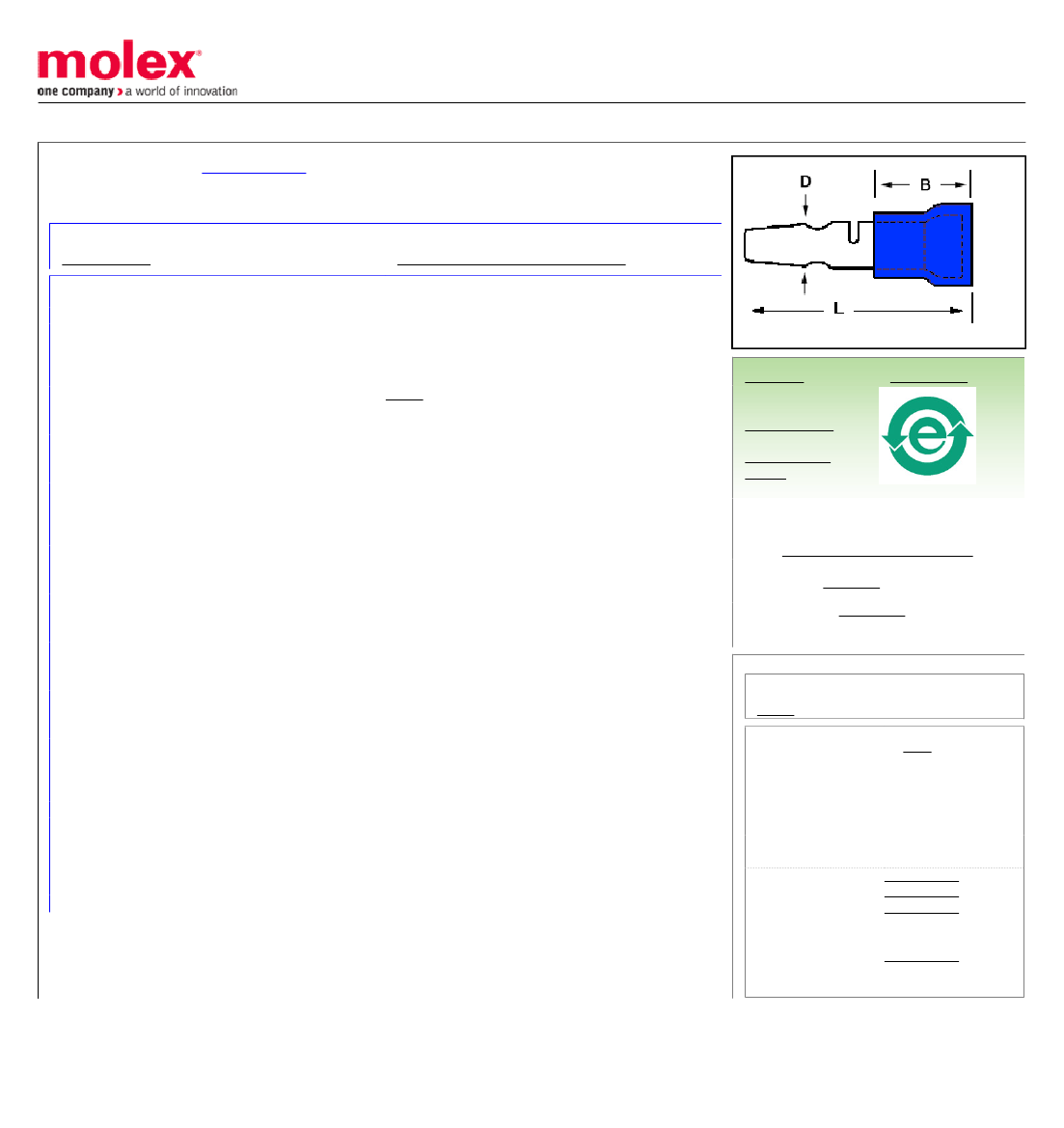

Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0190350009
Active
Avikrimp™ Snap Plug, for 14-16 AWG Wire, Box, 22.55mm (.888") Length
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E152602
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Crimp Quality Equipment
MolexKits
Product Name
Type
Quick Disconnects
19035
Molded Nylon Insulation
Yes
Yes
Avikrimp™
Snap Plug
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Resin
Orientation
Packaging Type
Tab Thickness
Tab Width
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-0
Male
No
Nylon (PA)
None
Copper
Nylon
Straight
Bag
N/A
N/A
4.32mm (.170") max.
14, 16
1.30 - 2.00
Search Parts in this Series
19035Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640011400
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640051400
AT-200™ Pneumatic
Hand Tool
Electrical
Voltage - Maximum
N/A
Material Info
Old Part Number
B-589

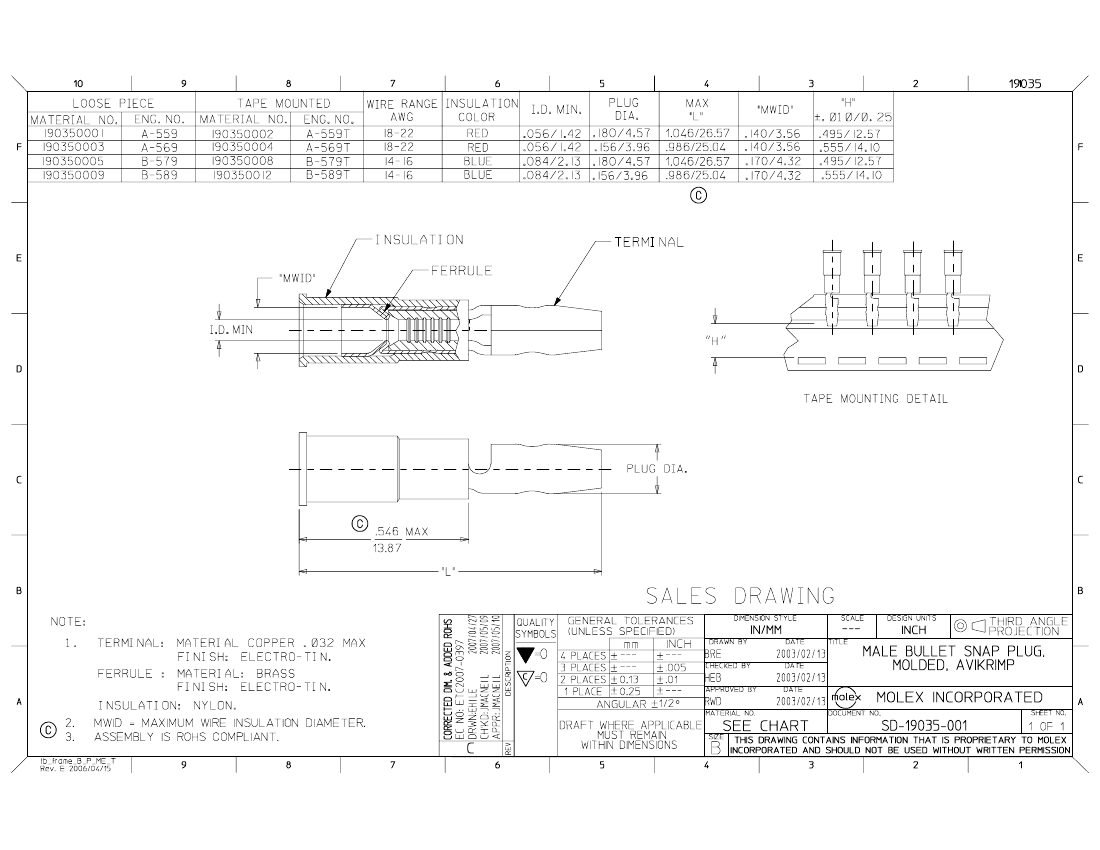

Reference - Drawing Numbers
Sales Drawing
SD-19035-001
