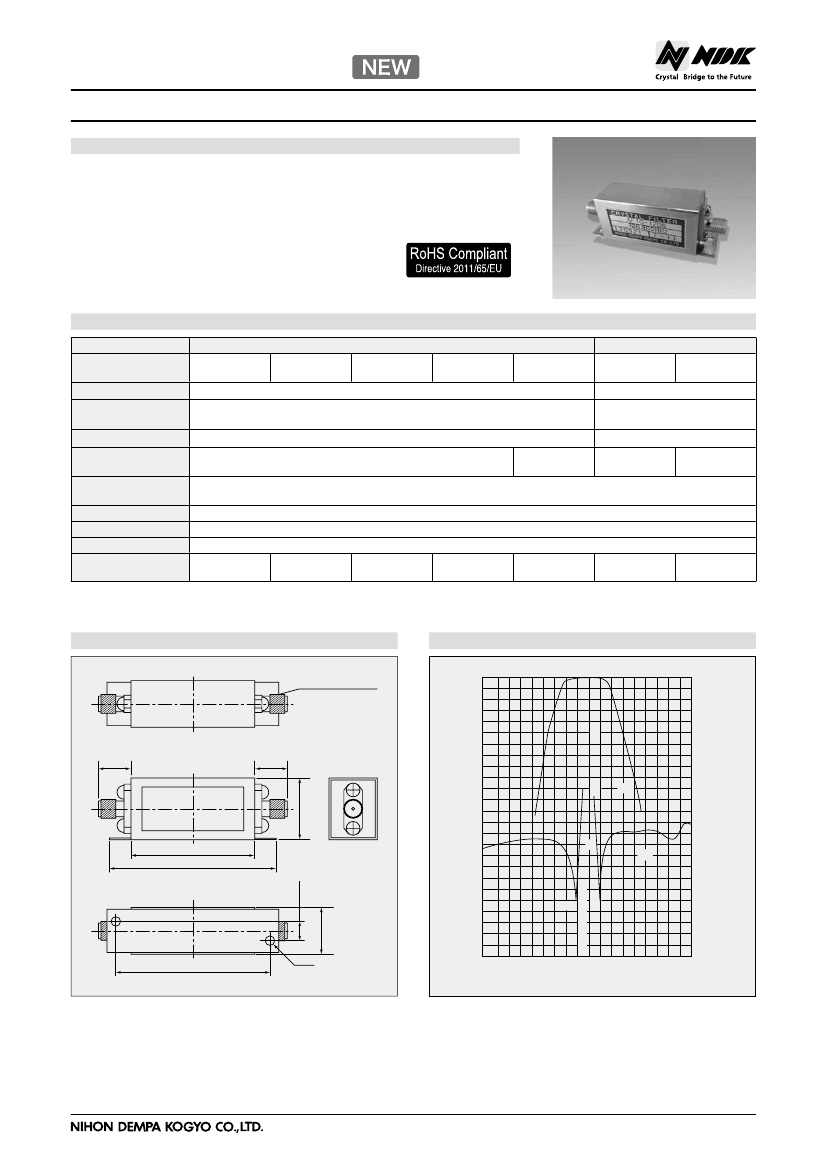

Crystal Filter
Antenna Filter
■
Features
This compact crystal filter for small antennas has been developed to remove
interference caused by nonlinearity of a receiver and has low insertion loss across a
wide frequency range.
● It can be manufactured for a wide frequency range from 40 to 170 MHz.
● Compact and light.
● Low insertion loss.
● Excellent temperature characteristics.
● SMA connector
■
Specifications
Model
Nominal frequency
3 dB Passband width
Stop bandwidth
Ripple
Insertion loss
(insertion attenuation)
Guaranteed attenuation
Terminating impedance
Operating temperature range
Package type
Ordering code
*1
AF10-12DS
AF10-24DS
40 MHz or more and 50 MHz or more and 60 MHz or more and 70 MHz or more and 100 MHz or more and 40 MHz or more and 100 MHz or more and
less than 50 MHz
less than 60 MHz
less than 70 MHz
less than 80 MHz
less than 170 MHz
less than 80 MHz
less than 170 MHz
Min. ±6 kHz
Max. ±25 kHz
at 20 dB
Max. 1 dB
Max. 4 dB
Max. 6 dB
Min. 20 dB Within ±200 kHz
Min. 10 dB Within ±500 kHz
50 Ω // 0 pF
–10 to +50 °C
D-175
AF10-12DS-[ ]M- AF10-12DS-[ ]M- AF10-12DS-[ ]M- AF10-12DS-[ ]M- AF10-12DS-[ ]M- AF10-24DS-[ ]M- AF10-24DS-[ ]M-
FN15-853
FN15-854
FN15-855
FN15-856
FN15-784
FN15-769
FN15-857
Min. ±12 kHz
Max. ±50 kHz
at 20 dB
Max. 2 dB
Max. 4 dB
Max. 6 dB
*1 : Specify a frequency in MHz in the brackets.
■
Dimensions
D-175
2-SMA receptacle
■
mm
Characteristics
10
9.5max
9.5max
20
(A)
20±1
40±1
54±1
6±0.5
30
(B)
ATTENUATION
(dB)
40
48±0.5
2-φ3
15±1
(A)
(B)
–400
–30
–20 –10
–200
0
0
10
20
200
30
(A)
(kHz)
400 (kHz) (B)
cf21_111003_D170_e
