353030250 Overview

2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model

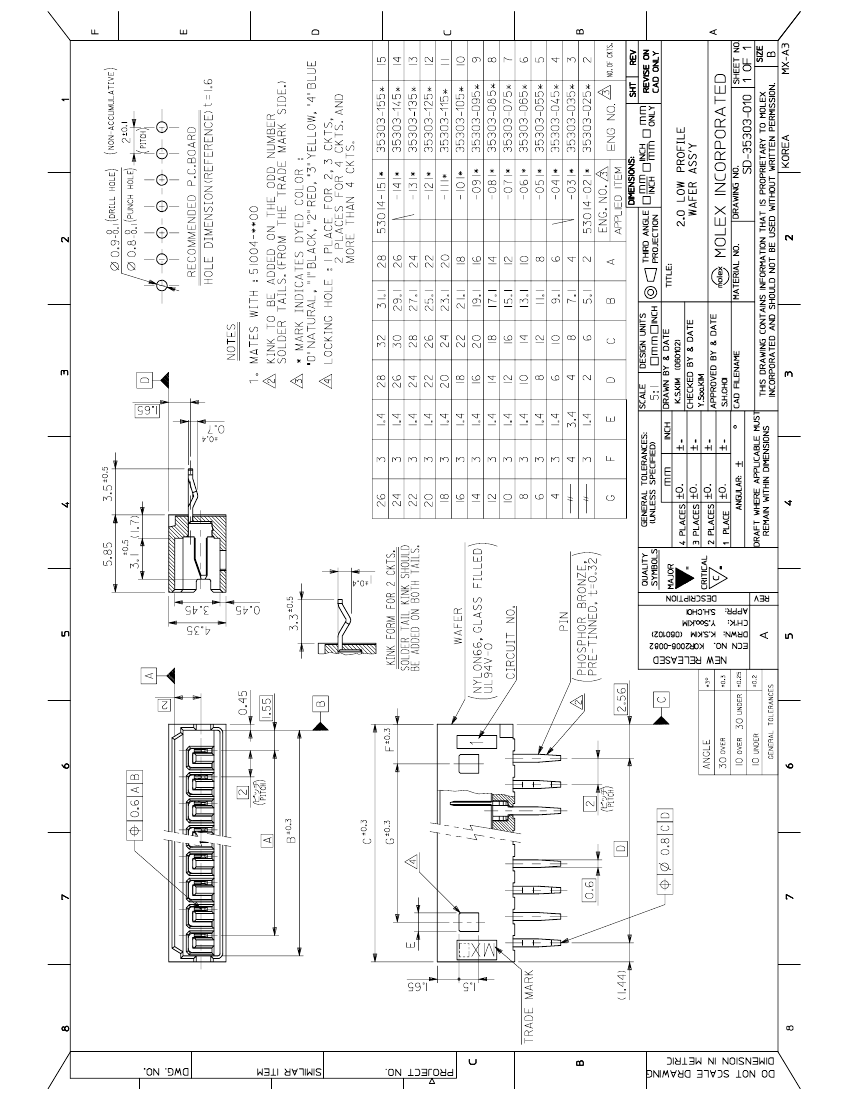

Drawing (PDF)
0353030250
Active
2.00mm (.079") Pitch Wire-to-Board Header, Vertical, Blade Pin, Shrouded, 2 Circuits
Product Specification PS-35303-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR 19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Application
Product Name
PCB Headers
53014
Wire-to-Board
N/A
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
2
2
Natural
30
No
94V-0
No
No
None
Yes
Phosphor Bronze
Tin
Tin
Nylon
1
Vertical
0.138 In
3.50 mm
No
Yes
0.062 In
1.60 mm

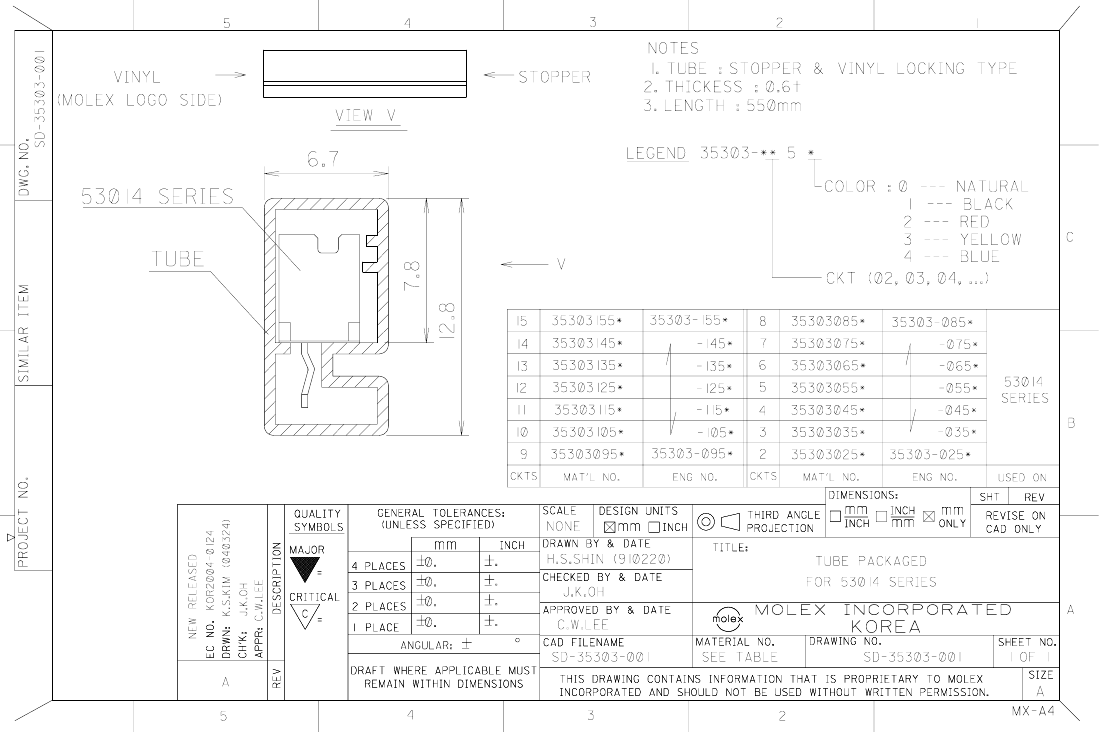

Tube
0.079 In
2.00 mm
32
0.80
32
0.80
No
Partial
No
No
-20°C to +85°C
Through Hole
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
53014Series
Mates With
51004 Wire-to-Board Housing
