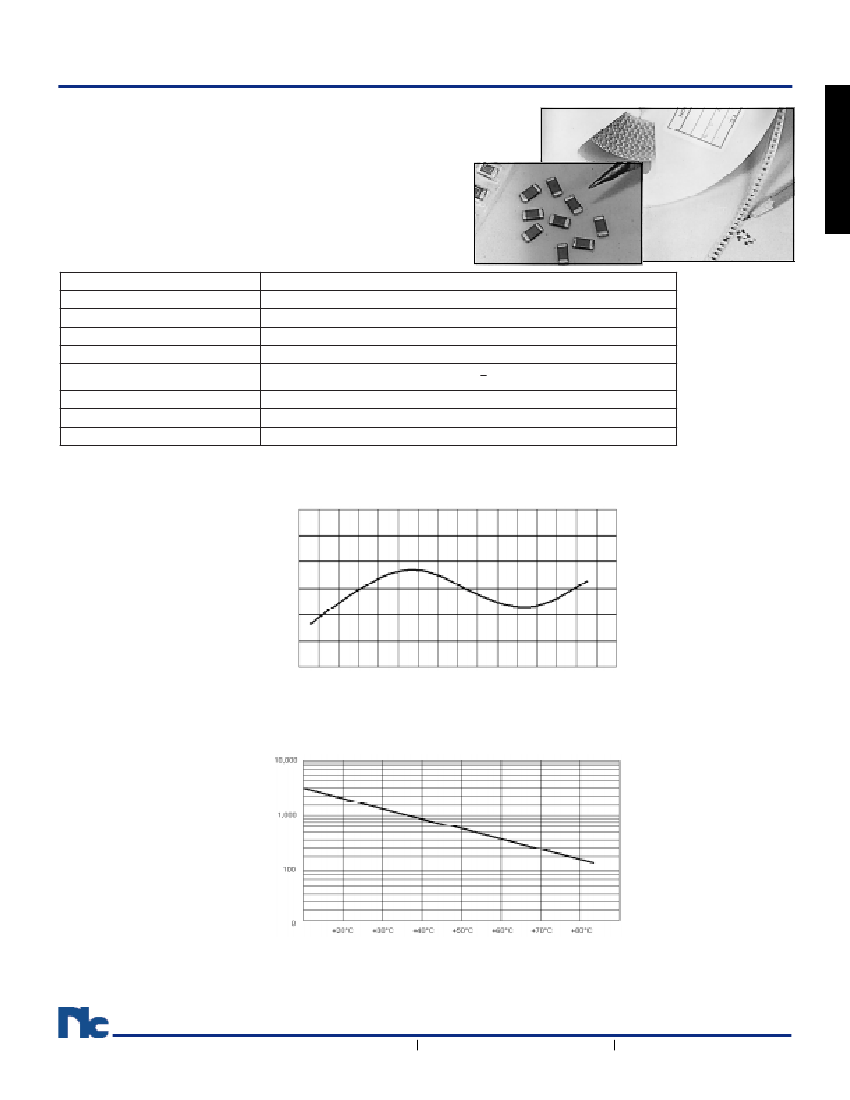

Multilayer Ceramic Chip Capacitors
FEATURES
• CLASS II DIELECTRIC, TEMPERATURE STABLE
• EXCELLENT FREQUENCY CHARACTERISTICS, NON-LINEAR
CAPACITANCE CHANGE
• HIGHER CAPACITANCE THAN X7R (UP TO 100µF)
• NICKEL BARRIER TERMINATIONS AND EXCELLENT
MECHANICAL STRENGTH
• EIA MARKING AVAILABLE
SPECIFICATIONS X5R
Capacitance Range
Capacitance Tolerances
Operating Temperature Range
Temperature Characteristics
Rated Voltages
Dissipation Factor
Insulation Resistance
Dielectric Withstanding Voltage
Test Conditions (EIA-198-2E)
0.0012
µ
F to 100
µF
±10%(K), ±20%(M)
-55
o
C to +85
o
C
±15%
∆
max. over temperature range (with 0 Vdc applied)
NMC Series X5R
SURFACE MOUNT
6.3Vdc, 10Vdc, 16Vdc, 25Vdc , 35Vdc, 50Vdc
C < 2.2
µ
F 5% max., C > 2.2
µ
F 10% max.
@ 1.0Vrms and KHz, +25 °C
10,000 Megohms min. or 100Meg ohm/
µ
F min. whichever is less @ 25°C
250% of Rated Voltage for 5 ±1 seconds, 50 milliamps maximum
1KHz, 1.0V ±0.2 Vrms
Typical X5R Temperature Coefficient
20
10
%∆C
0
-10
-20
-50 -40 -30 -20 -10
0
10
20
30
40
50
60
70
80 90
Temperature °C
Insulation Resistance vs. Temperature
Insulation Resistance (Ohm - Farads)
Temperature °C
®
NIC COMPONENTS
www.niccomp.com
www.lowESR.com
www.RFpassives.com
143
Multilayer Ceramic Chip Capacitors
X5R CAPACITOR SIZE CHART(mm)
EIA Case Size
Length (L)
Width (W)
Thickness
(T max.)
Termination
Width (P)
Capacitance
6.3
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
3.3
4.7
6.8
10
22
47
100
10
16
25
6.3
10
16
25
35
50
6.3
10
16
25
6.3
10
16
25
35
6.3
0603
1.6+0.15
0.8+0.15
0.9
0.10~0.60
0805
2.0+0.2
1.25+0.2
1.4
0.25~0.75
1206
3.2+0.2
1.6+0.2
1.8
0.25~0.75
Working Voltage (Vdc)
1210
3.2+0.2
2.5+0.2
2.8
0.25~0.85
NMC Series X5R
SURFACE MOUNT
1812
4.5+0.3
3.2+0.25
3.3
0.25~1.50
2220
5.7±0.4
5.0±0.4
2.8
0.25~1.03
10
16
25
6.3
(CONSULT FACTORY FOR CAPACITANCE VALUES NOT LISTED)
PART NUMBERING SYSTEM
NMC
0805
X5R
102
K 50 TRP or TRPLP
F
Lead Free Terminations
(100% Sn optional)
Tape and Reel (Embossed Plastic
Carrier), TRPLP10 = 10K pcs per reel
TRP = Tape & Reel Paper Carrier, TRP10 = 10K pcs per reel
Voltage (Vdc)
Capacitance Tolerance Code (see chart above)
Capacitance Code, expressed in pF, first 2 digits are
significant, 3rd digit is no. of zeros, “R” indicates
decimal for under 10pF
Temperature Characteristic
Size Code (see chart)
Series
®
NIC COMPONENTS
www.niccomp.com
www.lowESR.com
www.RFpassives.com
145
