A-70568-0045

Description
2.54mm (.100) Pitch C-Grid® Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 26 Circuits, 0.38μm (15μ) Gold (Au) Selective Plating
File Size379KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

A-70568-0045 Overview

2.54mm (.100) Pitch C-Grid® Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 26 Circuits, 0.38μm (15μ) Gold (Au) Selective Plating

This document was generated on 03/31/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0015477626
Active
2.54mm (.100") Pitch C-Grid® Header, Through Hole, Dual Row, Vertical, High
Temperature, Shrouded, with Peg, 26 Circuits, 0.38µm (15µ") Gold (Au) Selective
Plating, Tin (Sn) PC Tail Plating
Documents:
3D Model

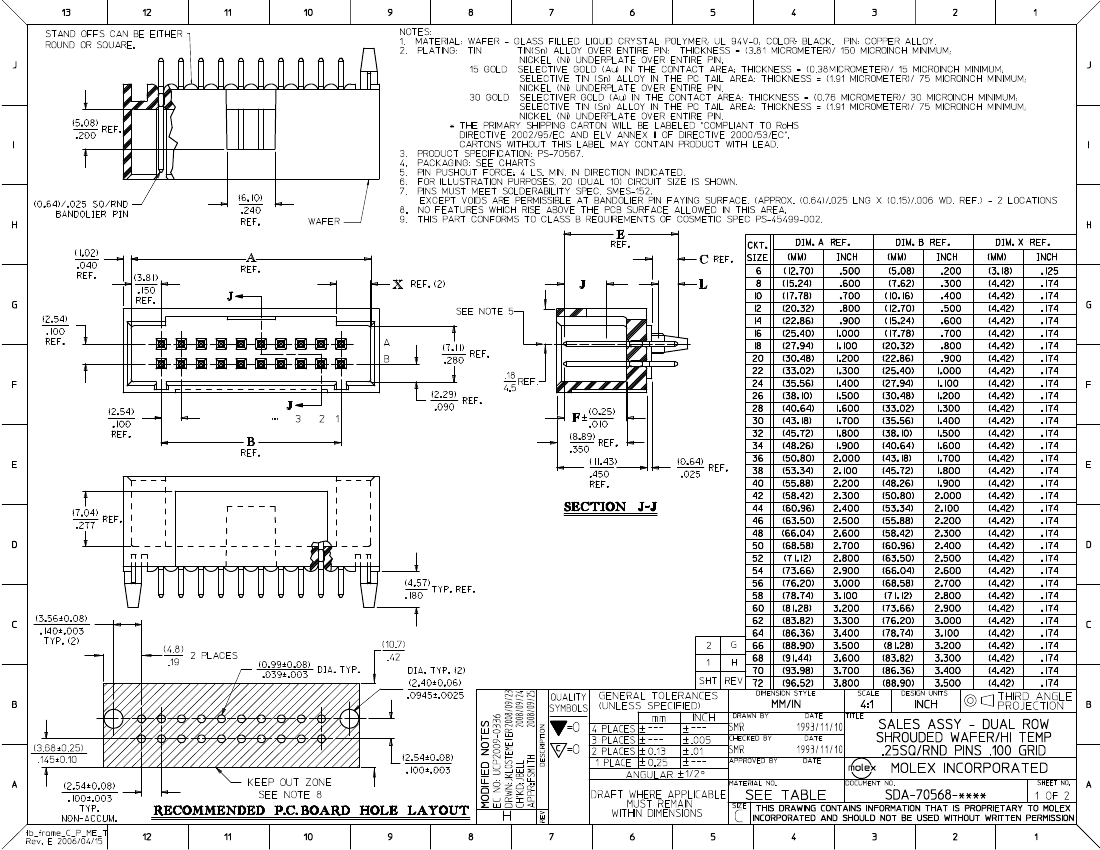

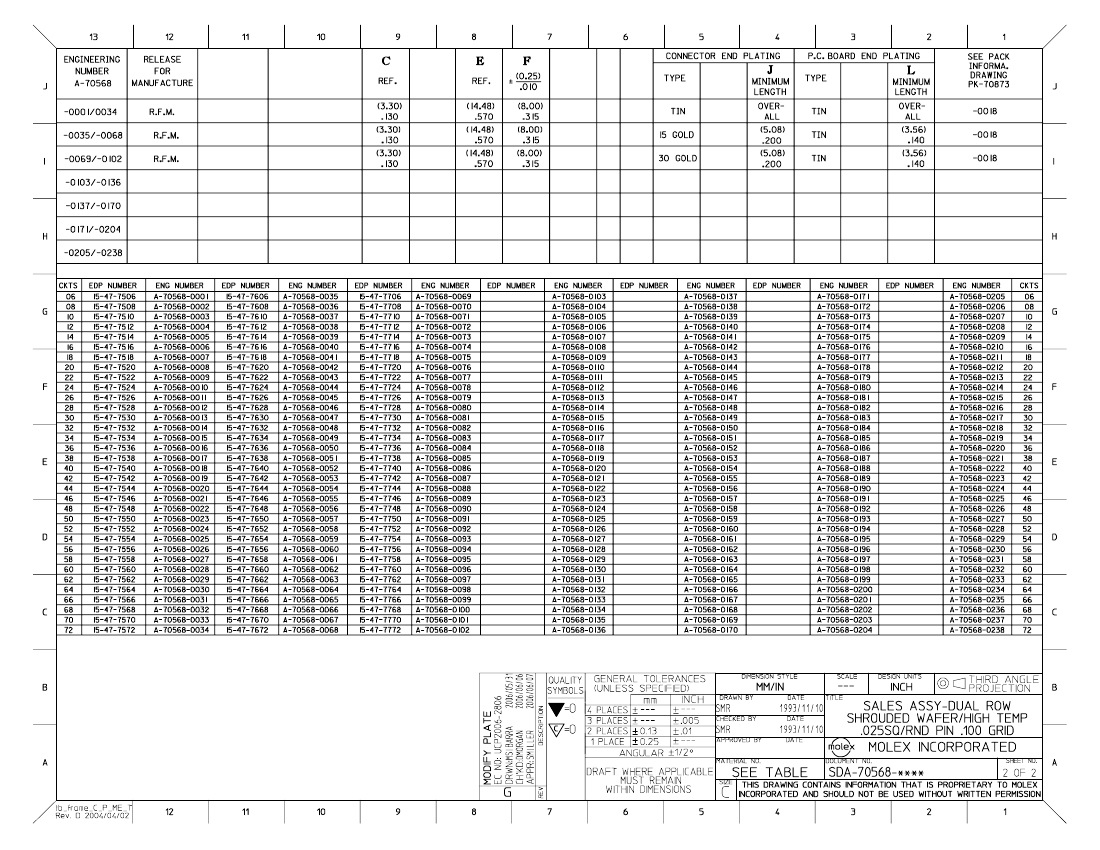

Drawing (PDF)
Product Specification PS-70567 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Product Name
PCB Headers
70568
Wire-to-Board
C-Grid®
Physical
Breakaway
Circuits (Loaded)
Color - Resin
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
No
26
Black
No
94V-0
No
No
None
Yes
Brass, Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
2
Vertical
0.130 In
3.30 mm
No
Yes
0.093 In
2.40 mm
Tube
0.100 In
2.54 mm
0.100 In
2.54 mm
15
0.375
75
1.875
Yes
Yes
Fully
No
No
