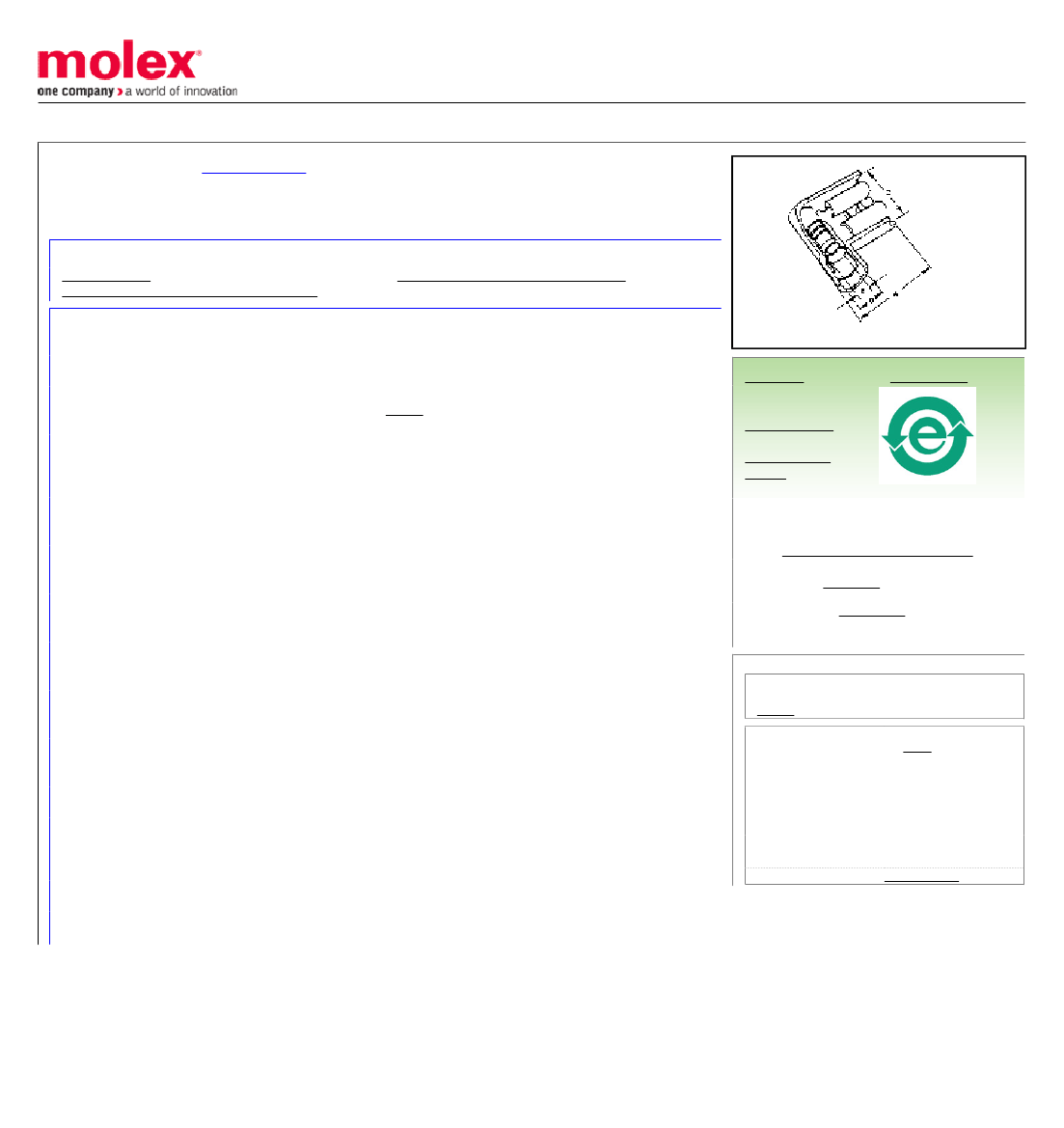

Part Number:
Status:
Description:
0190070076
Active
InsulKrimp™ Female Fully Insulated Quick Disconnect Flag for 16-14 AWG Wire, Tab
4.75mm (.187") x 0.51mm (.020"), 94 V-0 Material
Documents:
Drawing (PDF)
Product Specification PS-19902-008 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E79133
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19007
Yes
InsulKrimp™
Quick Disconnect
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Resin
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-0
Female
No
Nylon (PA)
None
Brass
Nylon
Flag
Bag
No
0.51mm (.020")
4.75mm (.187")
-65°C to +105°C
5.08mm (.200")
14, 16
1.00 - 2.60
Search Parts in this Series
19007Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640014100
Electrical
Voltage - Maximum
600V
Material Info
Old Part Number
BB-2224V
Reference - Drawing Numbers
Product Specification
Sales Drawing

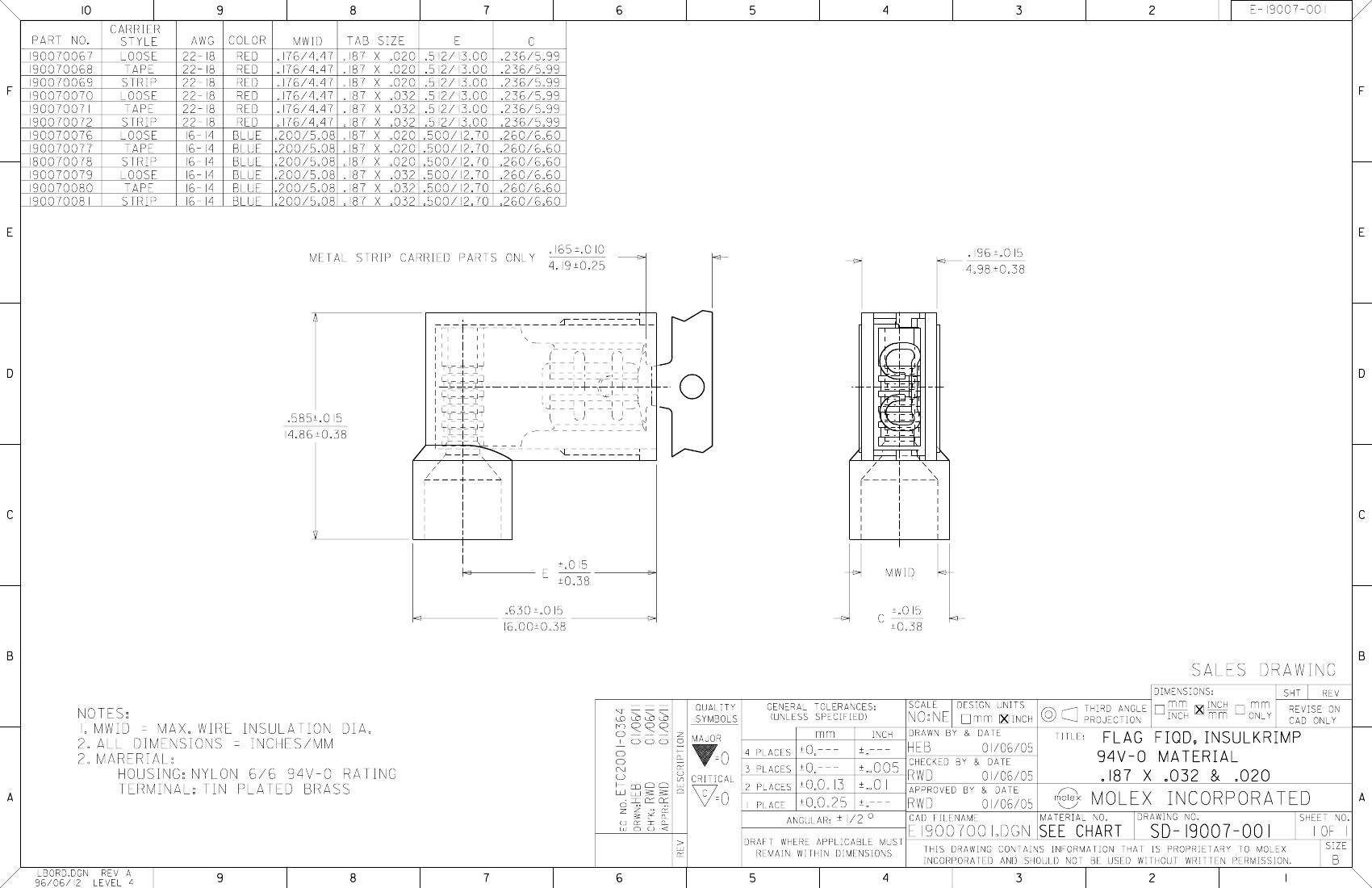

PS-19902-008
SD-19007-001
