This document was generated on 04/13/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190090018
Active
VibraKrimp™ Quick Disconnect Flag, Female, for 14-16 AWG Wire, Metal Strip Carrier
Documents:

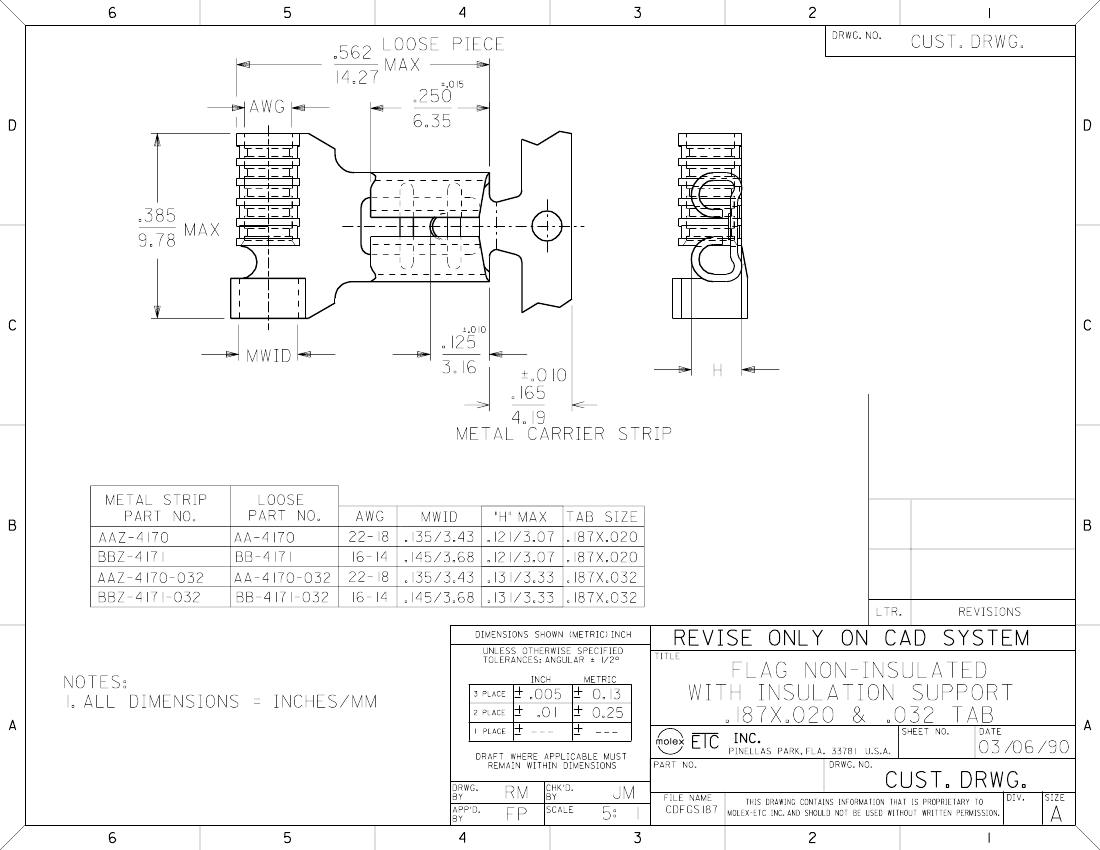

Drawing (PDF)
Product Specification PS-19902-005 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E79133
image - Reference only
Series
General
Product Family
Series
Comments
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19009
Wire Grip
Yes
VibraKrimp™
Quick Disconnect
Physical
Barrel Type
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Female
No
None
None
Brass
Flag
Reel
No
0.81mm (.032")
4.75mm (.187")
Per Wire Specification
3.68mm (.145")
14, 16
1.30 - 2.00
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19009Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Rear Feed Applicator 0638027700
for VibraKrimp™
Quick Disconnect
Female Flag
Terminals, 14-16
AWG.
ASP Perishable
0190290152
Tool Kit used in ASP
presses that process
metal strip product
Electrical
Voltage - Maximum
Per Wire Specification
Material Info
Old Part Number
BBZ-4171-032
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-19902-005
CDFGS187
