This document was generated on 03/05/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0192040014
Active
InsulKrimp™ 3 Way Splice for 14-16 AWG Wire
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Crimp Quality Equipment
Mil-Spec
Product Name
Splices
19204
3 Way Connector
Yes
N/A
3 Way, InsulKrimp™

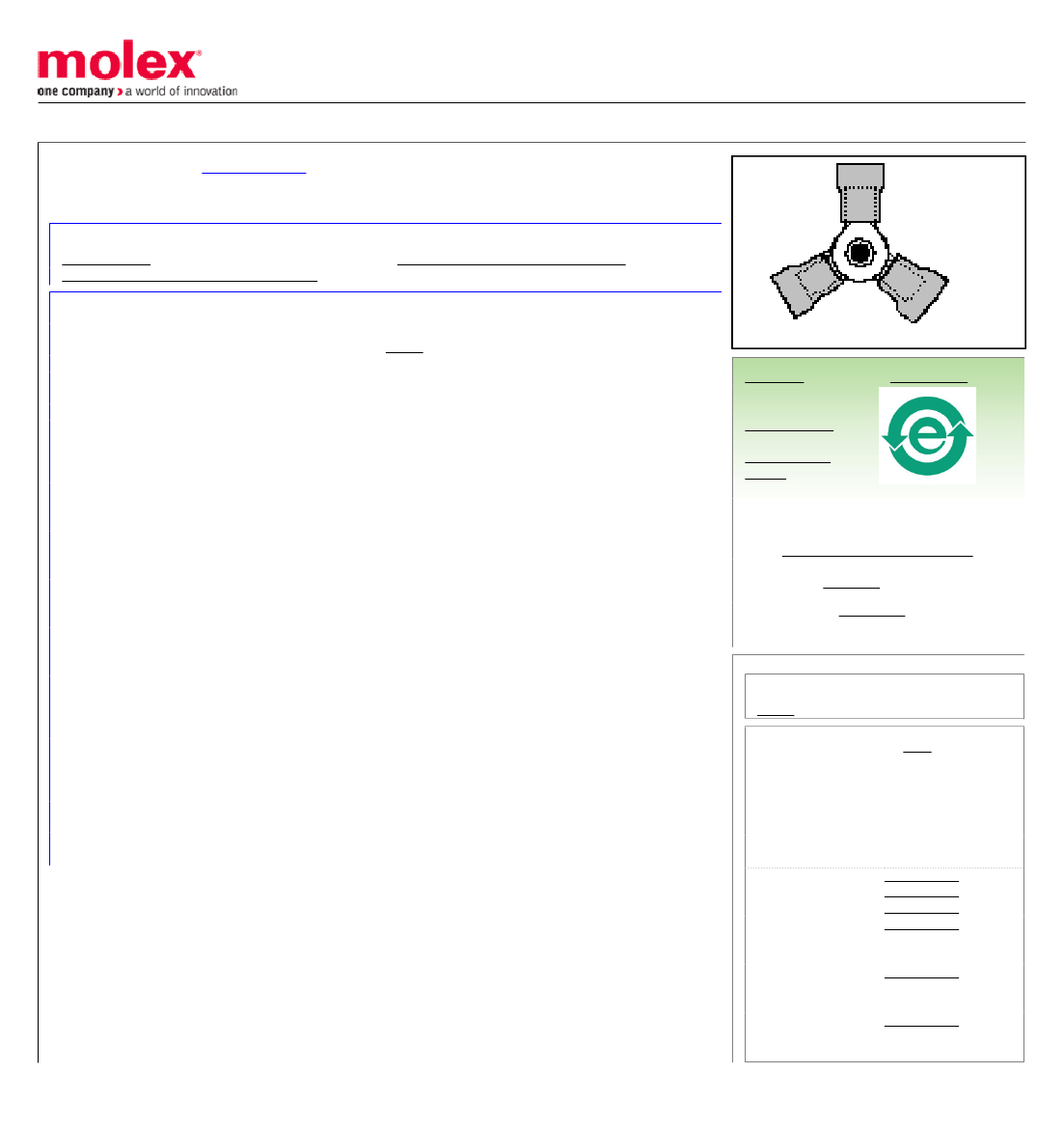

image - Reference only
Series
Physical
Barrel Type
Color - Resin
Insulation
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
PVC
Copper
Tin
Tin
PVC
Bag
100
2.5
100
2.5
-40°C to +105°C
4.45mm (.175") max
14, 16
1.30 - 2.00
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19204Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool
0640010100
Hand Crimp Tool
0640010300
Hand Crimp Tool
0640011400
Crimp Head for the 0640050100
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640050300
AT-200™ Pneumatic
Hand Tool
Crimp Head for the 0640051400
AT-200™ Pneumatic
Hand Tool
Electrical
Voltage - Maximum
600V
Material Info
Old Part Number
B-2YCX
Reference - Drawing Numbers
Product Specification

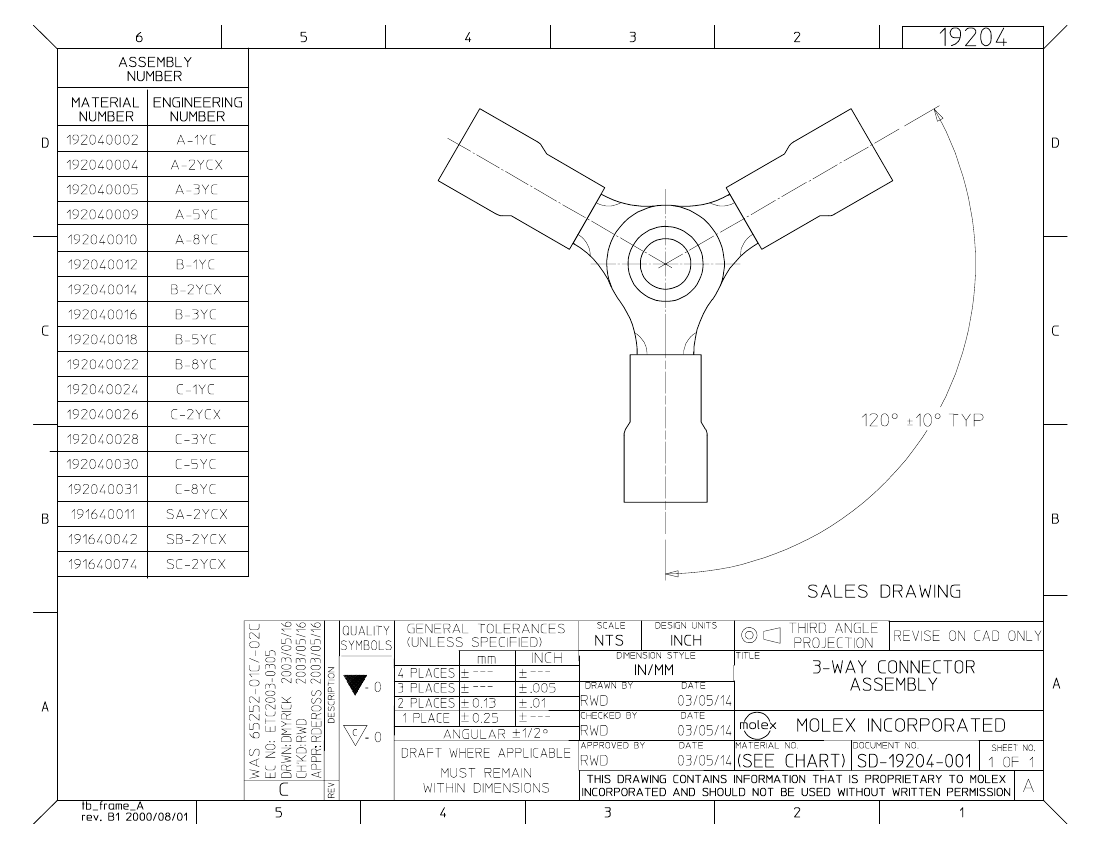

Sales Drawing
PS-19902-009
SD-19204-001
