This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
Drawing (PDF)
0192130010
Active
wire_pins
Avikrimp™ Wire Pin Terminal for 22-18 AWG Wire, Mylar Tape Carrier
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Comments
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
19213
Pin Length 9.40mm (.370")
Yes
wire_pins
Wire Pin
Physical
Flammability
Gender
Material - Metal
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
94V-0
Male
Copper
Tin
Adhesive Tape on Reel
39
1.00
Crimp or Compression
3.56mm (.140") max.
18, 19, 20, 22
N/A
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Old Part Number
WP-8218T
Search Parts in this Series
19213Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Crimp Dies for
0192880023
MTA-100 Tape
Applicator used in
3BF Press, MTA-105
Tape Applicator used
in TM-2000™ Press,
and ATP-301 Air
Crimping Press for
Mylar Tape Mounted
Terminals
Mini-Mac™
0638851300
Applicator

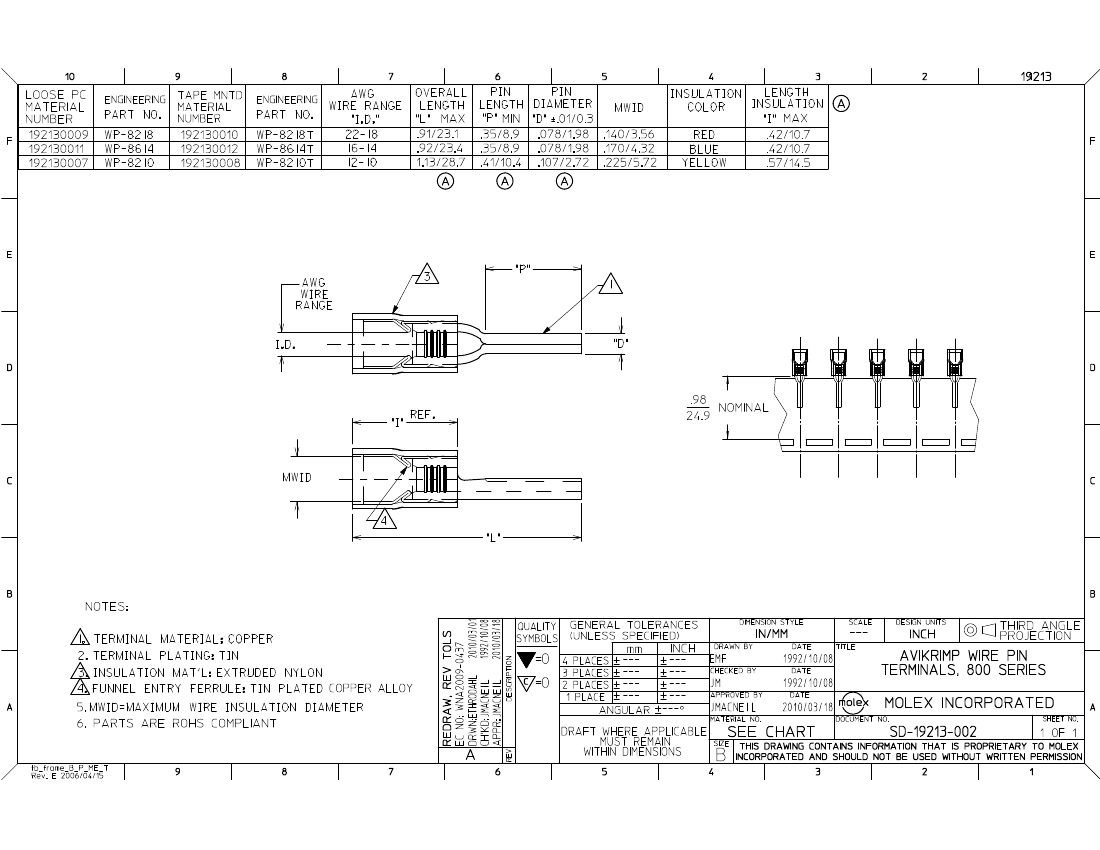

Reference - Drawing Numbers
Sales Drawing
SD-19213-002
