Description
2.54mm (.100) Pitch KK® Wire-to-Board Header, Single Row, Right Angle, 22 Circuits, PA Polyamide Nylon, Gold (Au) Plating
CategoryThe connector    The connector
File Size454KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

22-12-2221 Online Shopping

Suppliers Part Number Price MOQ In stock
22-12-2221 - - View Buy Now

22-12-2221 Overview

2.54mm (.100) Pitch KK® Wire-to-Board Header, Single Row, Right Angle, 22 Circuits, PA Polyamide Nylon, Gold (Au) Plating

22-12-2221 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresKK
body width0.248 inch
subject depth0.092 inch
body length2.19 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance50000000000 Ω
Insulator colorRED
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number4094
Plug contact pitch0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature75 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness20u inch
Rated current (signal)4 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.124 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts22
UL Flammability Code94V-0
This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0022122221
Active
2.54mm (.100") Pitch KK® Wire-to-Board Header, Single Row, Right Angle, 22 Circuits,
PA Polyamide Nylon, Gold (Au) Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179

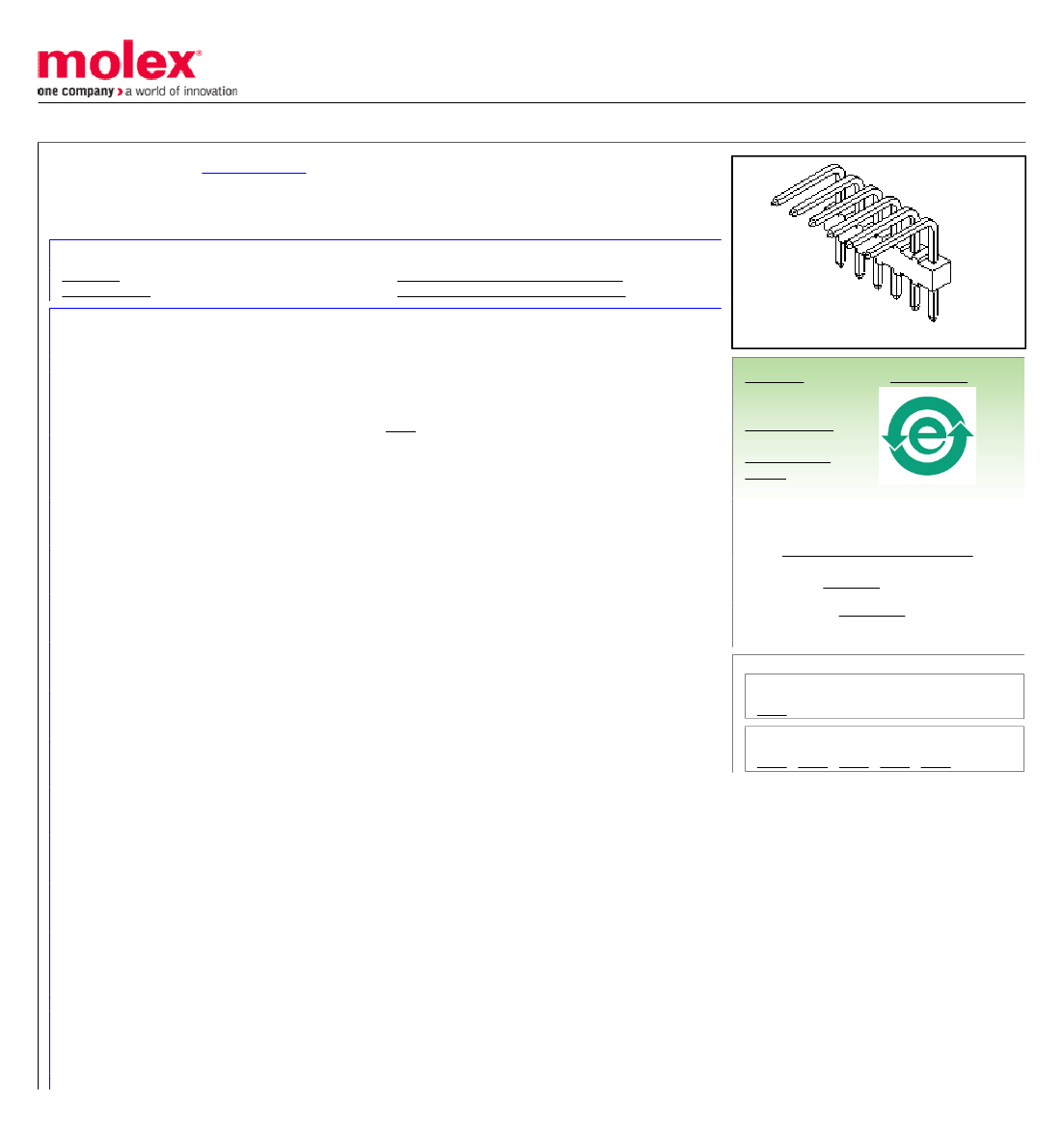

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Product Name
PCB Headers
4094
Board-to-Board, Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
22
22
Natural (White)
100
94V-0
No
None
Brass
Gold
Nylon
1
Right Angle
0.124 In
3.15 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
No
No
No
Yes
No
0°C to +75°C
Through Hole
Search Parts in this Series
4094Series
Mates With
2695 , 6471 , 7880 , 4455 , 7720
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
5
Wave Capable (TH only)
