35164-1402

Description
14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size79KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

35164-1402 Overview

14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

35164-1402 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Other featuresCOMPATIBLE CONTACTS: 35047-9802; 35047-9810
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number35164
Plug information35047-9802
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts14
UL Flammability Code94V-0
Base Number Matches1

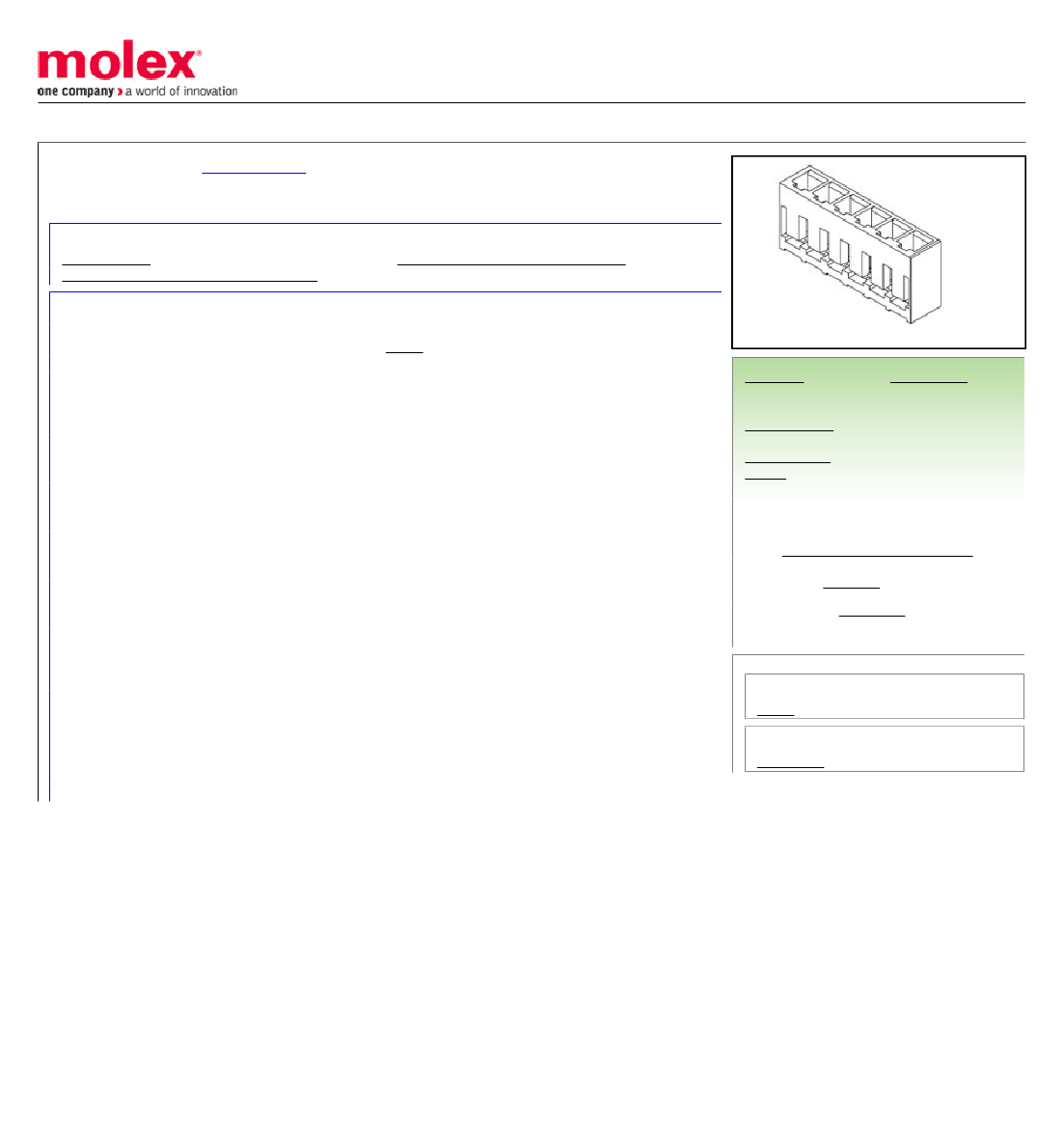

This document was generated on 03/11/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0351641402
Active
2.50mm (.098") Pitch Board-In Housing, 14 Circuits, Red
Documents:

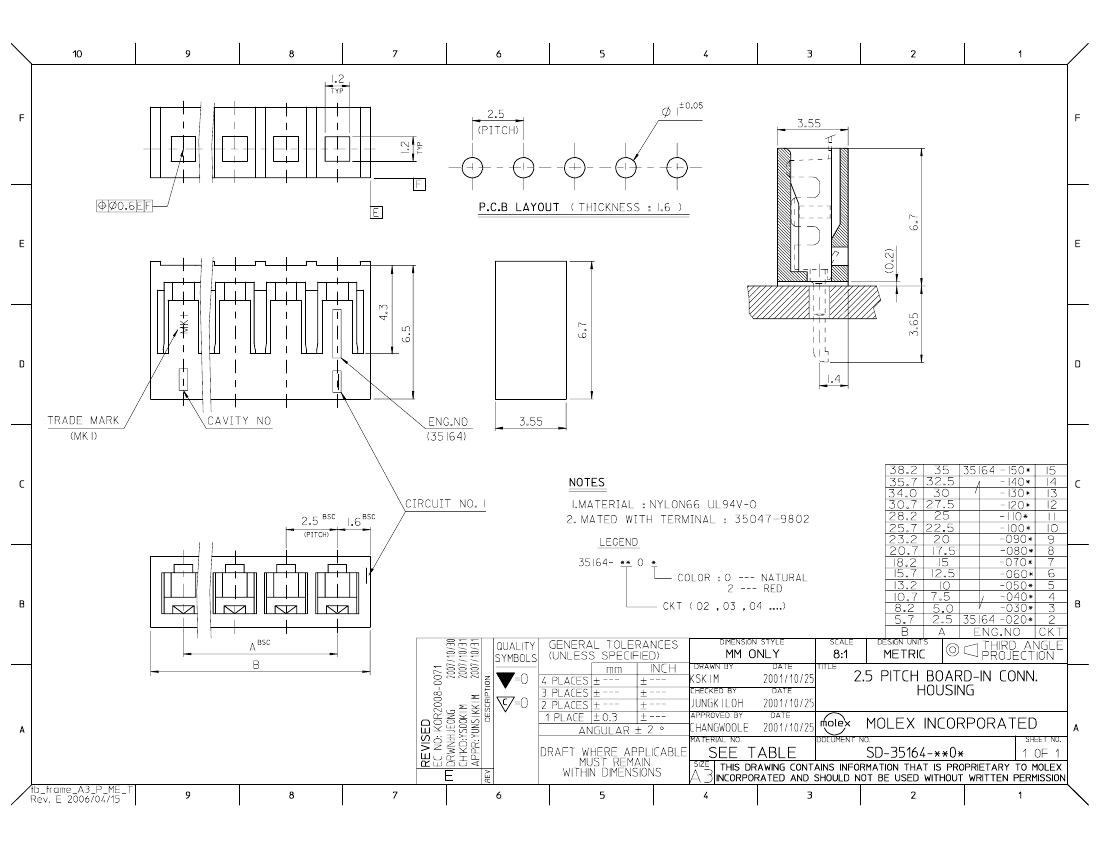

Drawing (PDF)
Product Specification PS-35164-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Product Name
Crimp Housings
35164
Board-In
image - Reference only
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
14
14
Red
Male
No
None
No
Nylon
1
Bag
No
0.098 In
2.50 mm
No
No
-40°C to +105°C
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
3A
Search Parts in this Series
35164Series
Mates With
350479802 Board-In Terminal
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-35164-001
SD-35164-**0*
This document was generated on 03/11/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

35164-1402 Related Products

35164-1402 0351641402
Description 14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code unknow unknow
Connector type BOARD CONNECTOR BOARD CONNECTOR
Base Number Matches 1 1
