351830417 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 351830417

351830417: Description4 CONTACT(S), FEMALE, POWER CONNECTOR; CategoryThe connector The connector; File Size113KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

351830417 Overview

4 CONTACT(S), FEMALE, POWER CONNECTOR

351830417 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MK2, COMPTABILE CONTACTS: 35716-0110; 35716-0310; 35716-0190; 35716-0193
body width	0.299 inch
subject depth	0.906 inch
body length	1.26 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	19.5712 N
Insulation resistance	100000000 Ω
Insulator color	GRAY
insulator material	POLYPHENYLENE OXIDE
MIL compliance	NO
Plug contact pitch	0.315 inch
Plug information	35309-0410
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Rated current (signal)	7 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NORYL
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-1
Evacuation force-minimum value	5.7824 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

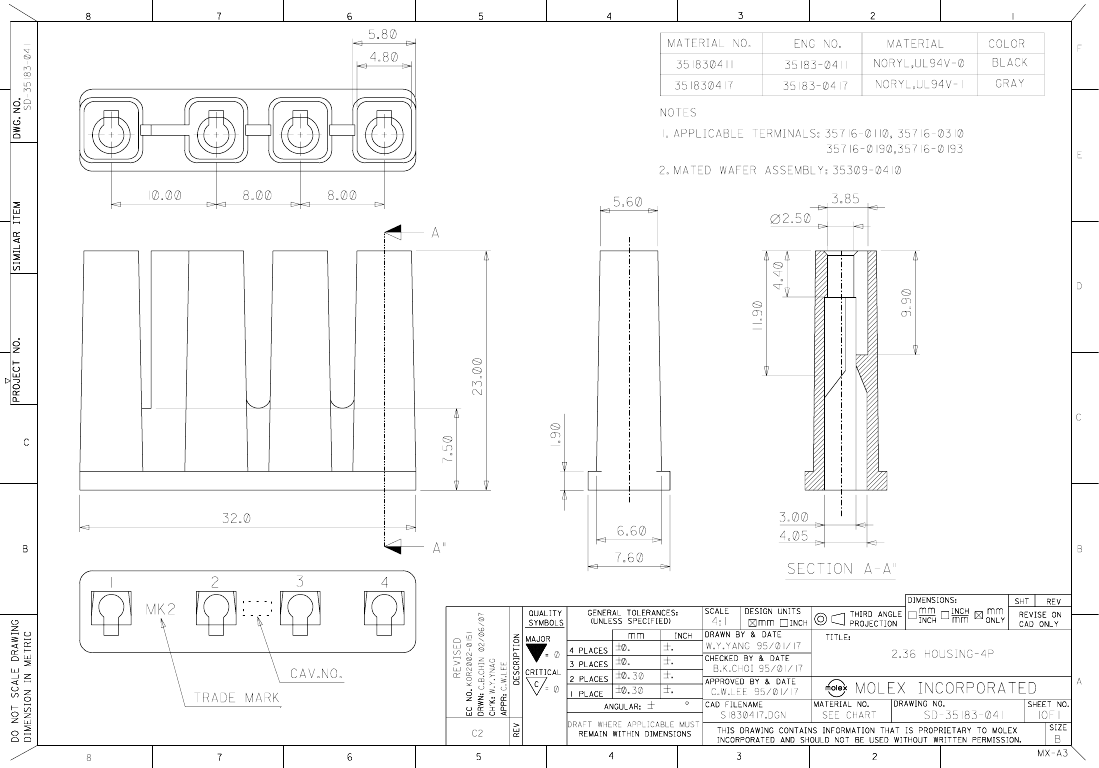

Drawing (PDF)

0351830417

Active

8.00/10.00mm (.315/.394") Pitch, 2.36 Dia. Pin Housing, 4 Circuits

Product Specification PS-35183-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Series

General

Product Family

Series

Product Name

Crimp Housings

35183

N/A

Physical

Circuits (maximum)

Flammability

Gender

Glow-Wire Compliant

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Temperature Range - Operating

94V-1

Female

Bag

0.315 In, 0.394 In

10.00 mm, 8.00 mm

-25°C to +85°C

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-35183-001

SD-35183-041

Search Parts in this Series

35183Series

Mates With

35309

Use With

35716

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
