71395-1234

Description
2.54mm (.100) Pitch C-Grid® PCB Connector, Surface Mount, High Profile, Dual Row, Vertical, 34 Circuits
File Size739KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

71395-1234 Overview

2.54mm (.100) Pitch C-Grid® PCB Connector, Surface Mount, High Profile, Dual Row, Vertical, 34 Circuits

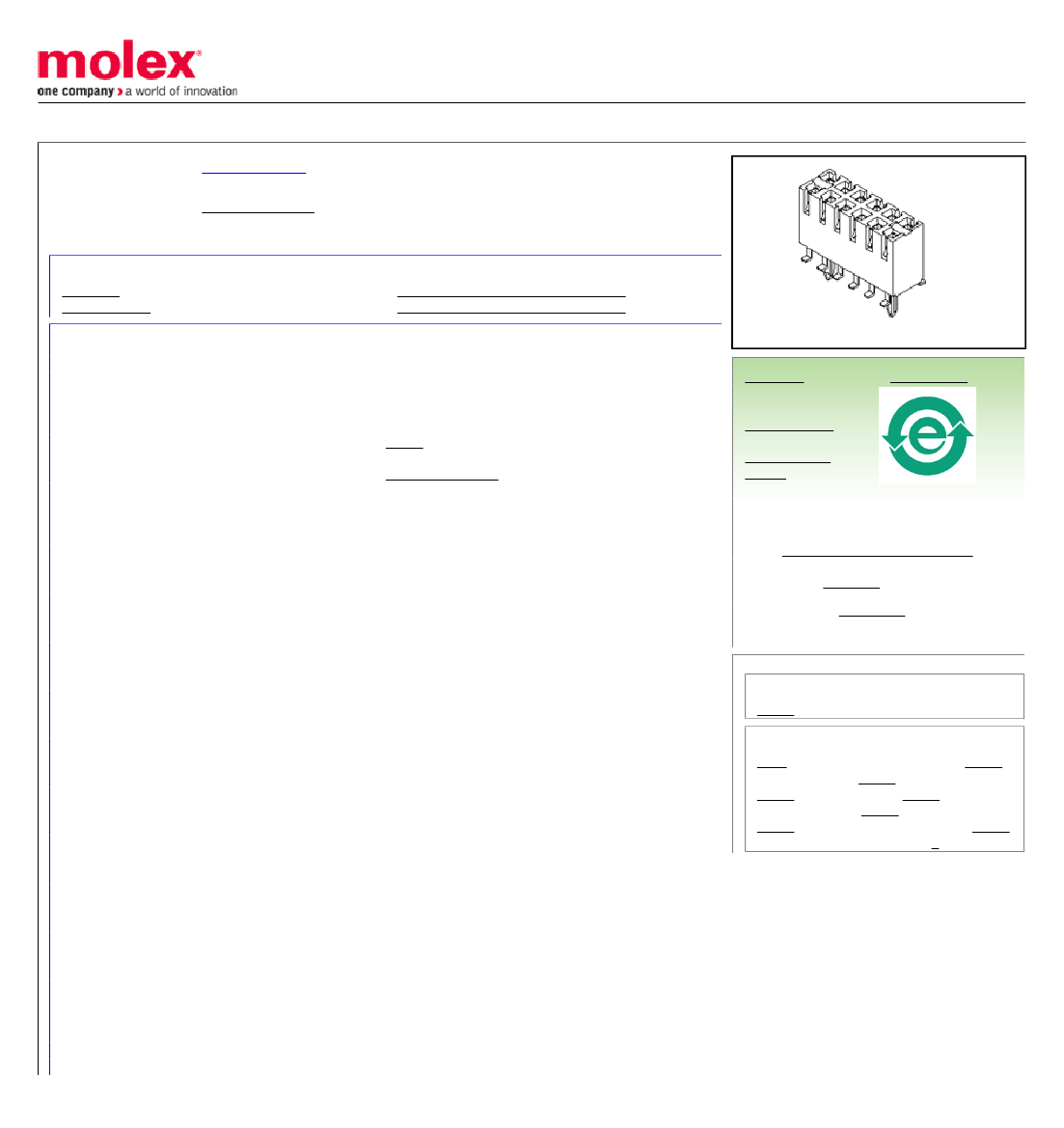

This document was generated on 05/31/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0015453334
Active
cgrid__sl_products
2.54mm (.100") Pitch C-Grid® PCB Connector, Surface Mount, High Profile, Dual Row,
Vertical, 34 Circuits
Documents:
3D Model

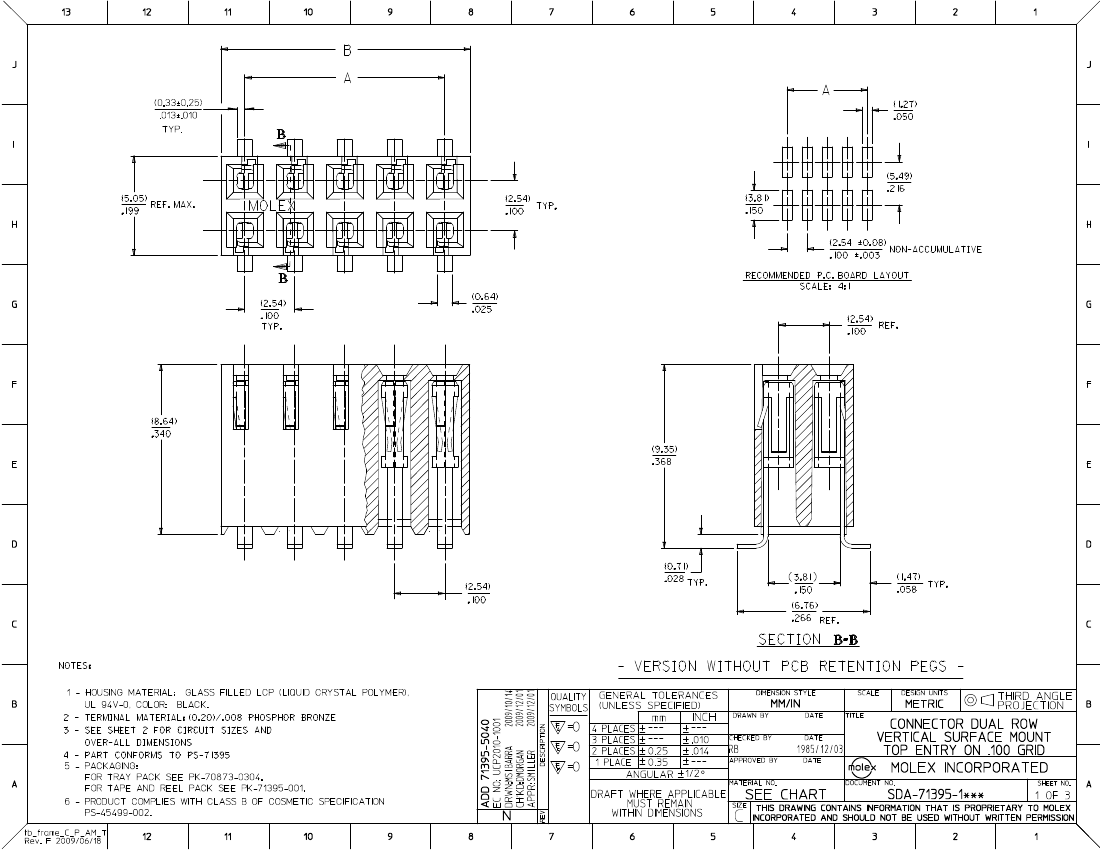

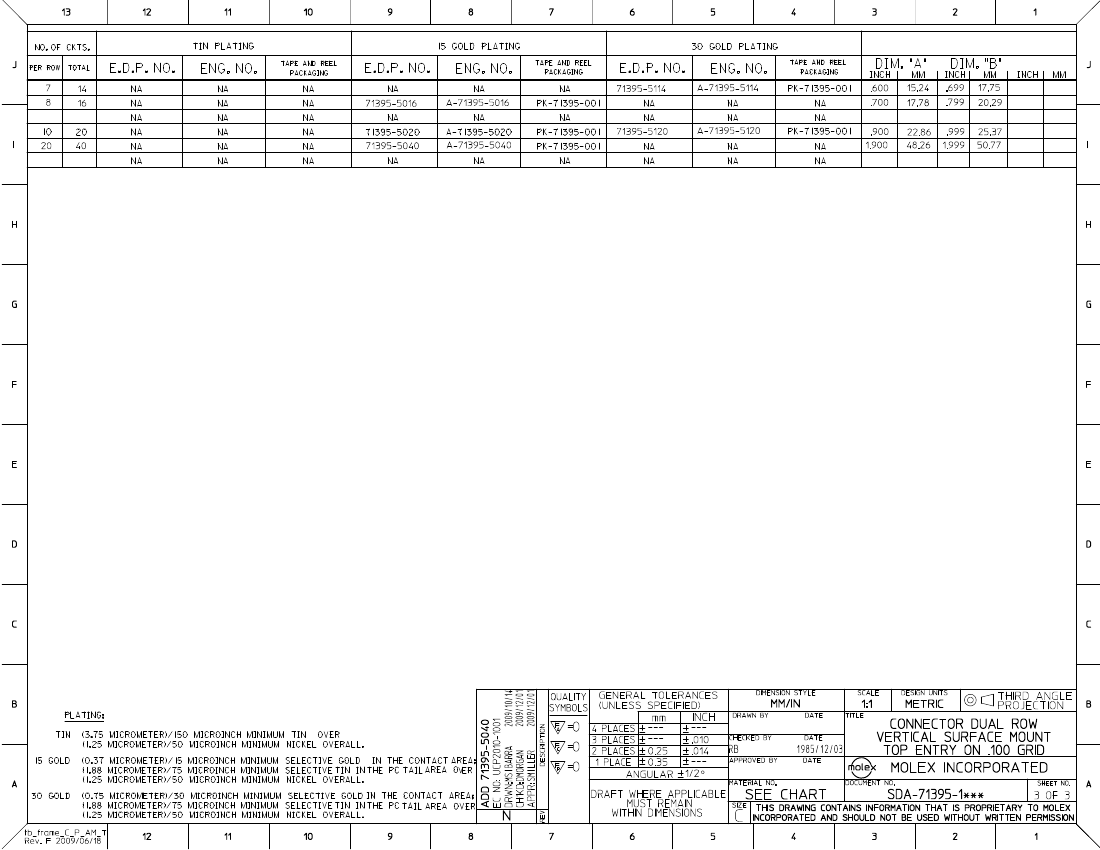

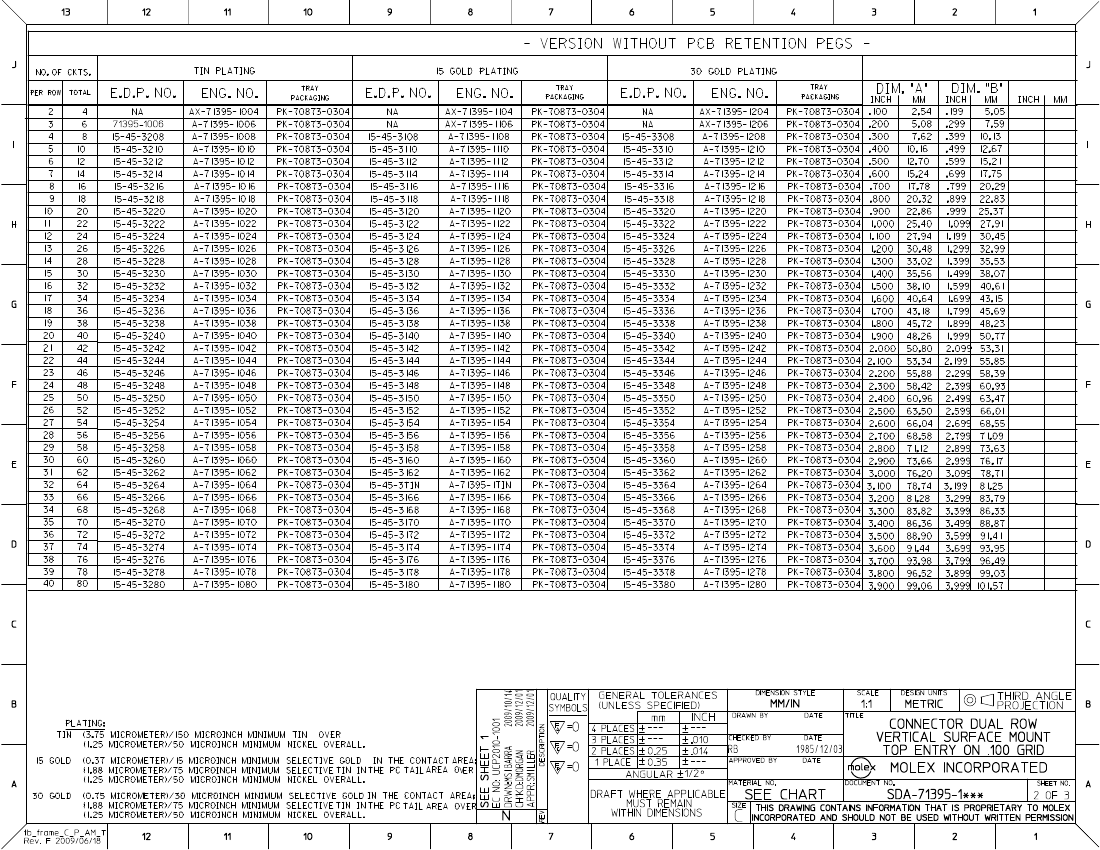

Drawing (PDF)
Product Specification PS-71395 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E29179
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
71395
Board-to-Board
cgrid__sl_products
C-Grid®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
34
Black
50
94V-0
No
No
None
No
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
2
Vertical
0.058 In
1.47 mm
Yes
None
Tray
0.100 In
2.54 mm
30
0.75
75
1.875
No
N/A
-40°C to +105°C
Surface Mount
Search Parts in this Series
71395Series
Mates With
8624 C-Grid® Breakaway Header, 70246
Straight Header, 70247 Right Angle Header,
70287 C-Grid® Header, 70227 Dual Row
C-Grid® Header, 70567 C-Grid® Header,
70280 C-Grid® Breakaway Header, 70524
C-Grid® Breakaway Header, 7
Electrical
Current - Maximum per Contact
Grounding to PCB
Voltage - Maximum
2.5A
No
250V
