This document was generated on 04/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0872801300
Active
2.00mm (.079") Pitch Cable Holder, for Discrete Wire, Flat Cable and Ribbon Cable, 13
Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87130-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
LR19980
General
Product Family
Series
Component Type
Glow-Wire Compliant
Product Name
Ribbon Cable / Wire Trap Connectors
87280
One Piece
No
Board-In, Cable Holder
Physical
Circuits (Loaded)
Circuits (maximum)
Entry Angle
Flammability
Lock to Mating Part
Number of Rows
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
13
13
Vertical
94V-0
None
1
Yes
Yes
0.062 In
1.60 mm
Bag
0.079 In
2.00 mm
0.079 In
2.00 mm
Yes
No
Fully
No
No
-40°C to +105°C
1.42mm (.056") max.
26, 28
Discrete Wire, Ribbon Cable
Search Parts in this Series
87280Series
Mates With
N/A
Use With
Discrete Wire, Flat Cable, or Ribbon Cable
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
125V
Material Info
Reference - Drawing Numbers
Product Specification

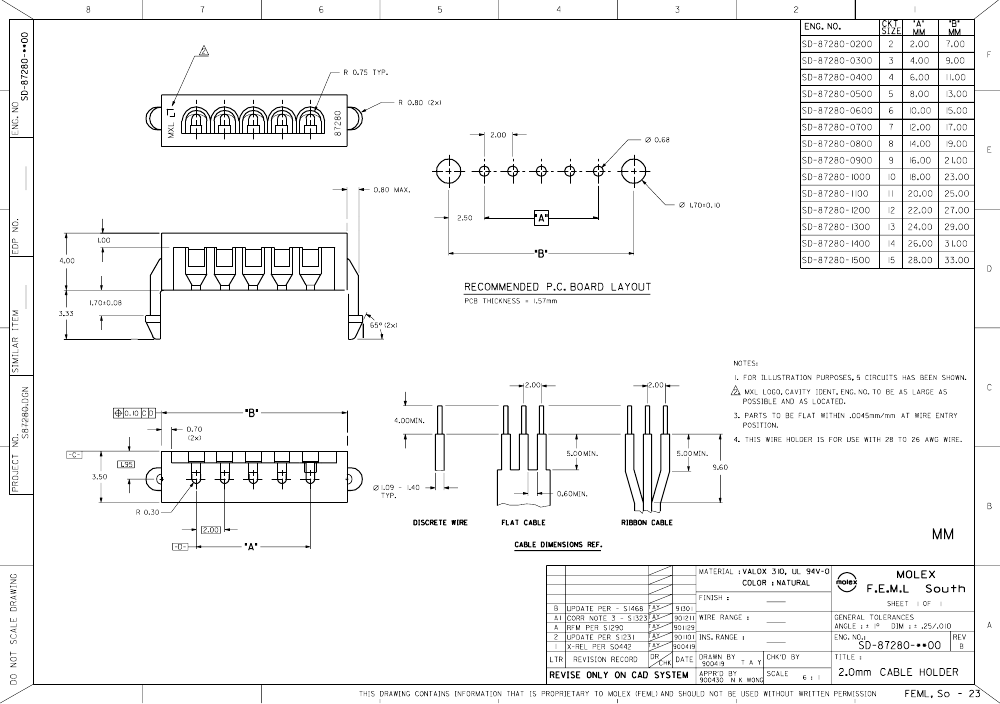

Sales Drawing
PS-87130-001
SD-87280-**00
