Part Number

Search

87381-4683

Description
46 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE
CategoryThe connector    The connector
File Size219KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

87381-4683 Online Shopping

Suppliers Part Number Price MOQ In stock
87381-4683 - - View Buy Now

87381-4683 Overview

46 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE

87381-4683 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time10 weeks
Is SamacsysN
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrie
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts46
Base Number Matches1
This document was generated on 03/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0873814683
Active
2.00mm (.079") Pitch Milli-Grid™ Receptacle, Surface Mount, Top Entry, 0.76µm (30µ")
Gold (Au) Plating, with Cap, with Locating Pegs, 46 Circuits, Lead-free
Documents:
3D Model

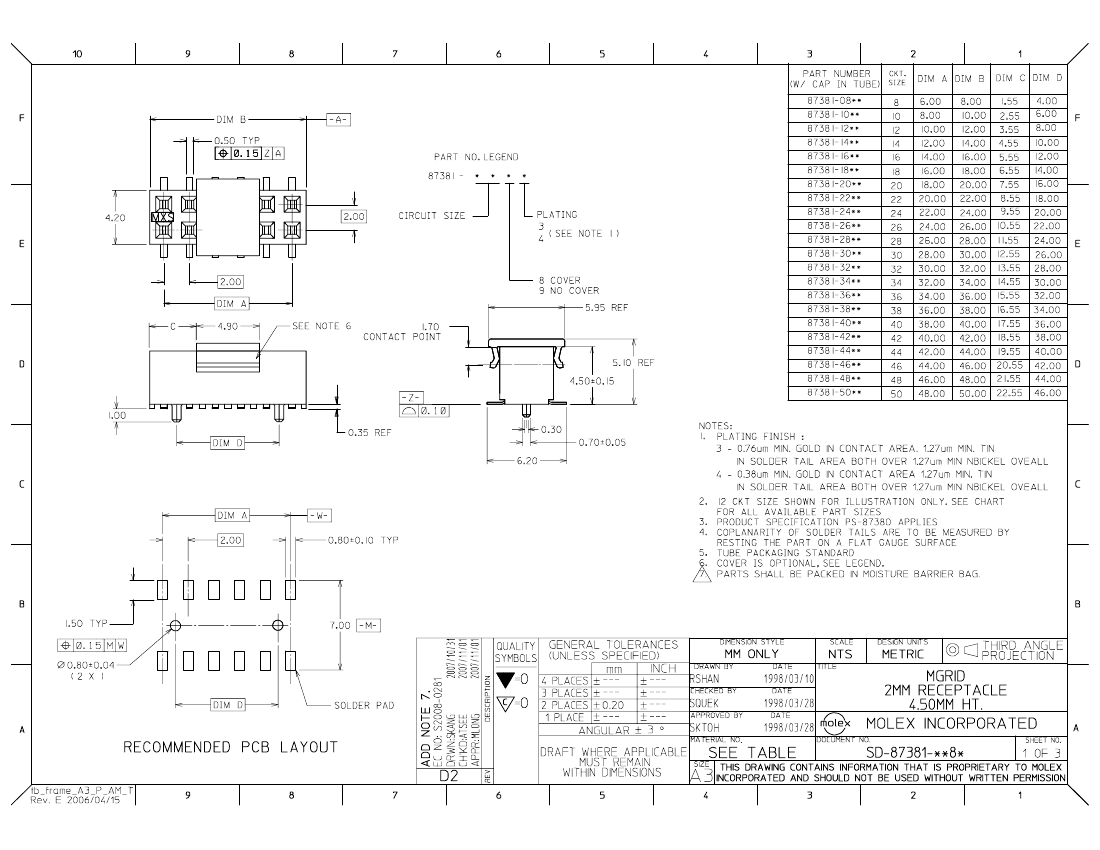

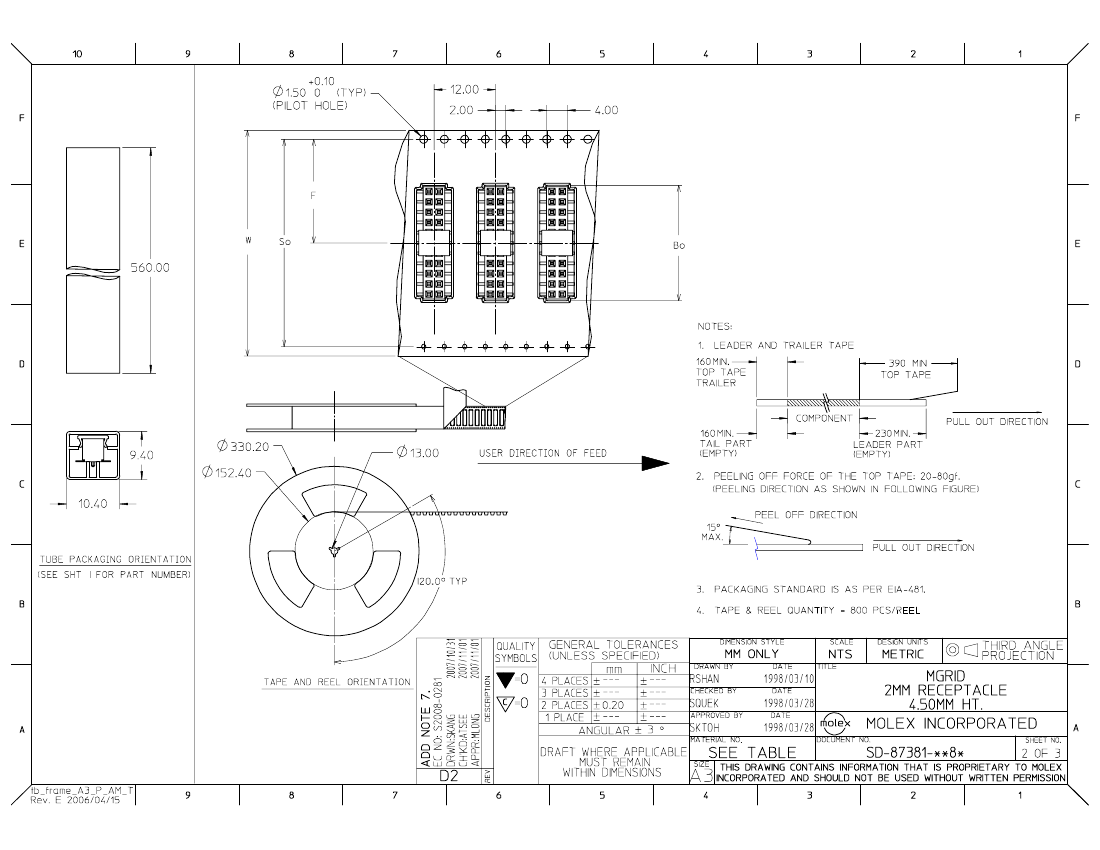

Drawing (PDF)
Product Specification PS-87380-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Name
PCB Receptacles
87381
Board-to-Board
With Cap
Milli-Grid™
Physical
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
46
46
25
94V-0
No
None
Phosphor Bronze
Gold
Tin
Nylon
2
Vertical
Yes
Yes
Tube
0.079 In
2.00 mm
0.079 In
2.00 mm
30
0.76
50
1.27
No
N/A
-55°C to +105°C
Surface Mount
Search Parts in this Series
87381Series
Mates With
87758 , 87759, 87760, 87832 Surface
Mount PCB Header, 87833 Right Angle PCB
Header, 87831 Vertical, Through Hole PCB
Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.9A
125V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
14
Reflow Capable (SMT only)
1
