3022-03A Overview

3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

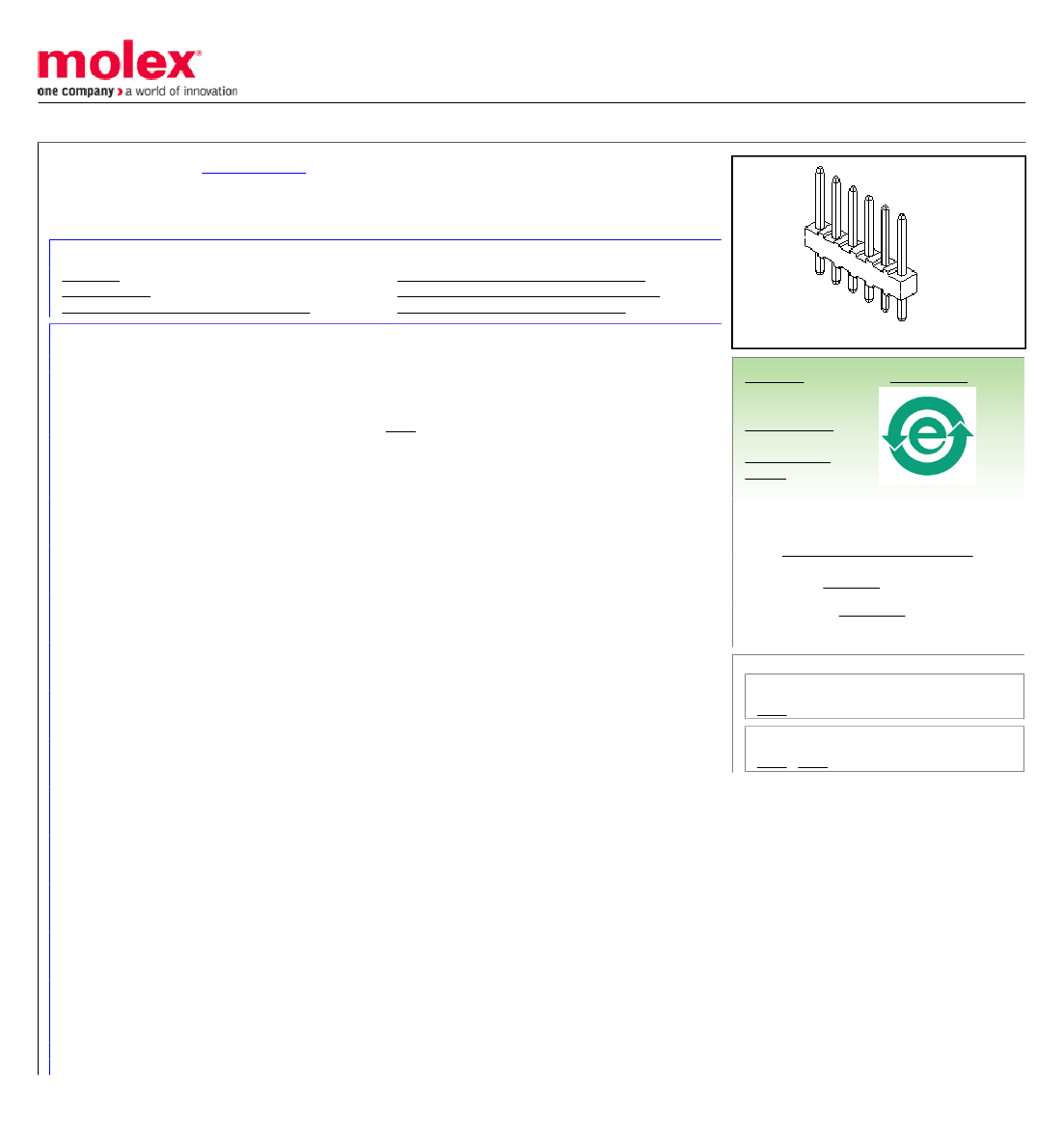

This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0022031031
Active
2.50mm (.098") Pitch Header, Single Row, 7.50mm (.295") Mating Pin Length, 3
Circuits
Documents:
3D Model

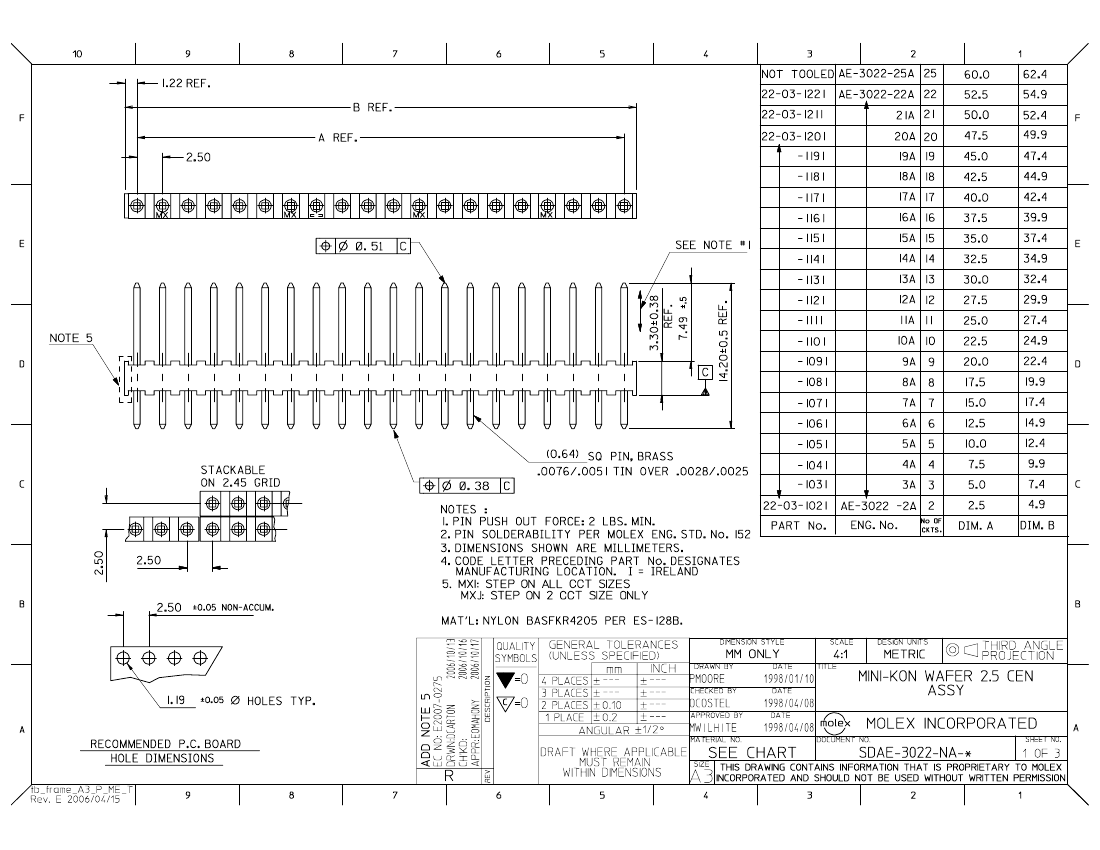

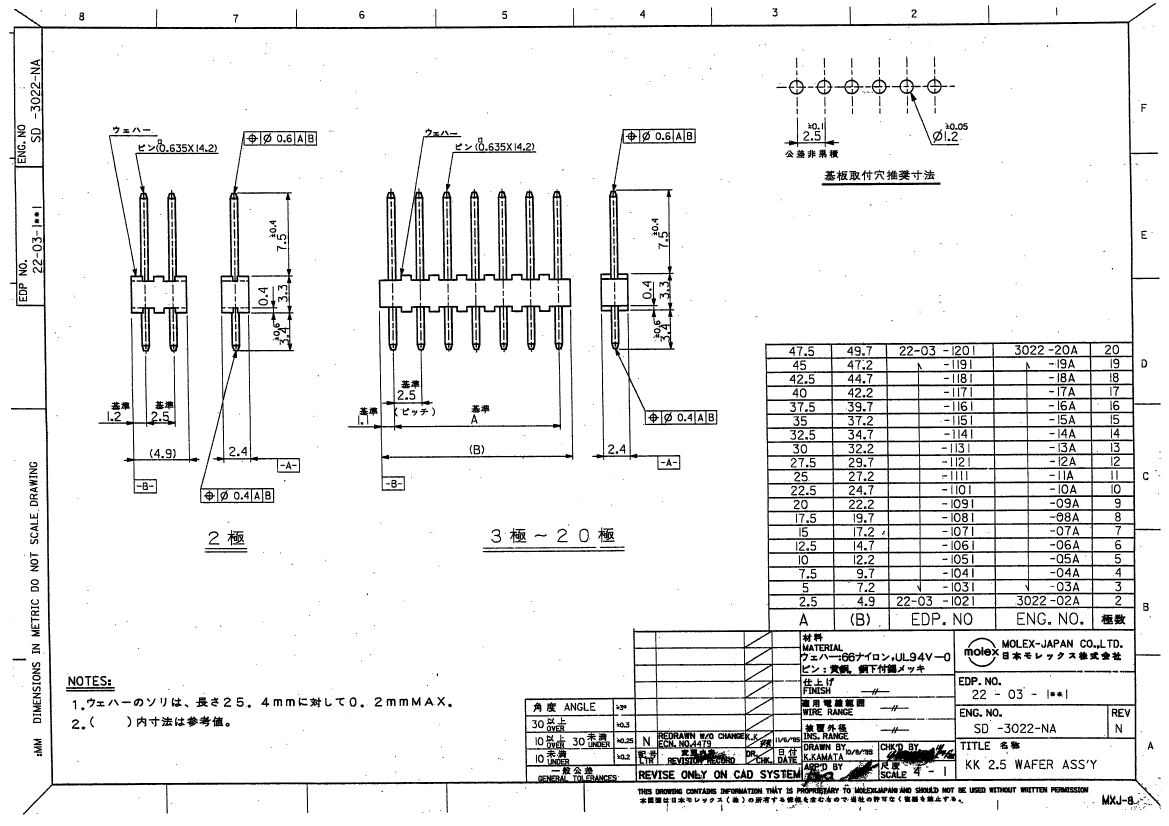

Drawing (PDF)
Product Specification PS-3022-001 (PDF)
Product Specification PS-3022-002 (PDF)
Product Specification PS-99020-0088 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Application
Product Name
PCB Headers
3022
Wire-to-Board
N/A
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
3
3
Natural (White)
94V-0
No
None
Brass
Tin
Tin
Nylon
1
Vertical
0.134 In
3.40 mm
No
None
0.062 In
1.60 mm
Bag
0.098 In
2.50 mm
200
5
200
5
No
No
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
3022Series
Mates With
3024 , 5224
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
