34250-0020 Overview

3 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, CRIMP

Preview

Download Datasheet

View All

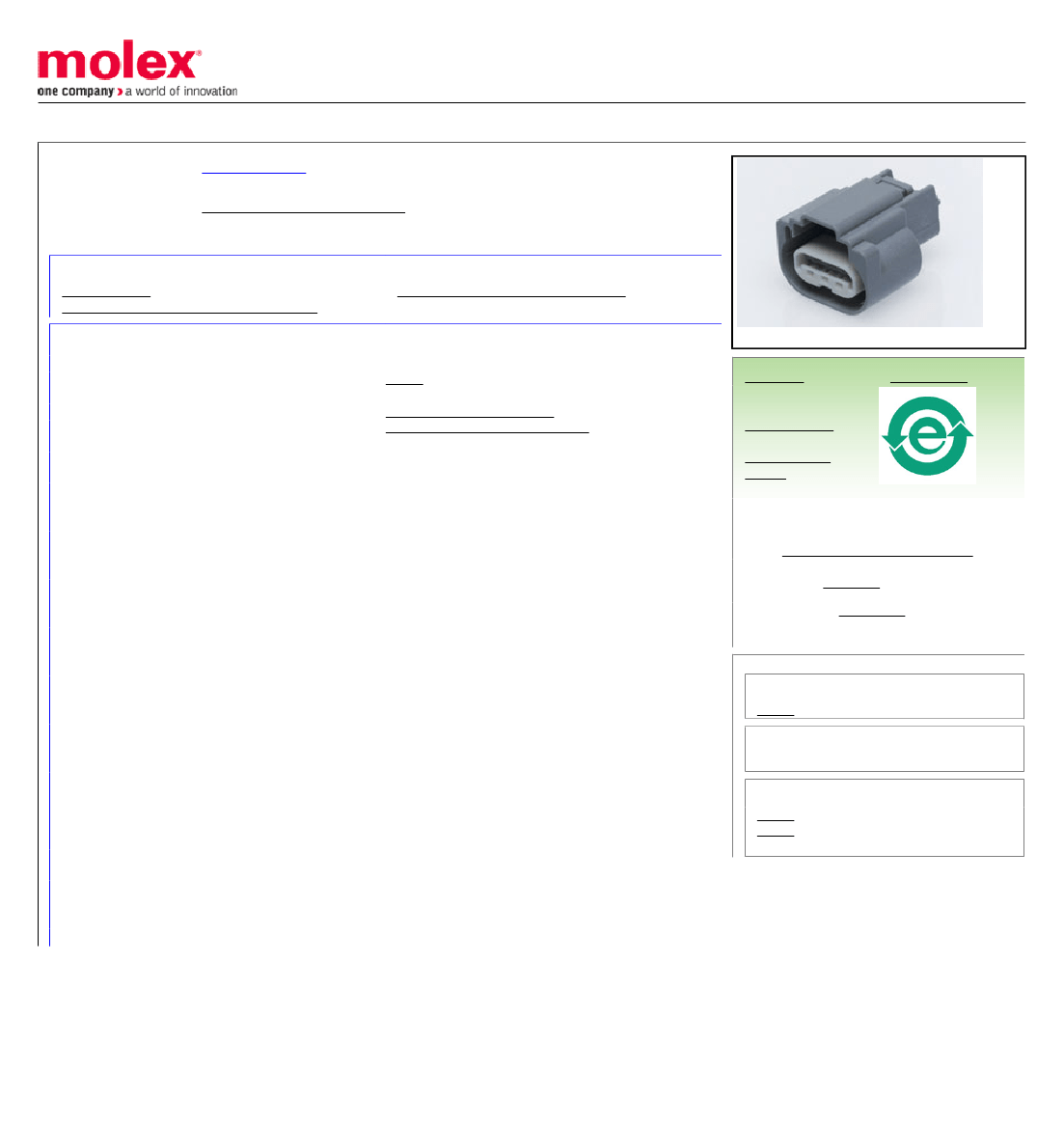

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0342500020

Active

mx150_sealed_connector_system

4.50mm (.177") Pitch MX150™ Cable Sealed Female Connector, Single Row, 3

Circuits, Polarization D, without Connector Position Assurance, Dual Key, Green

Documents:

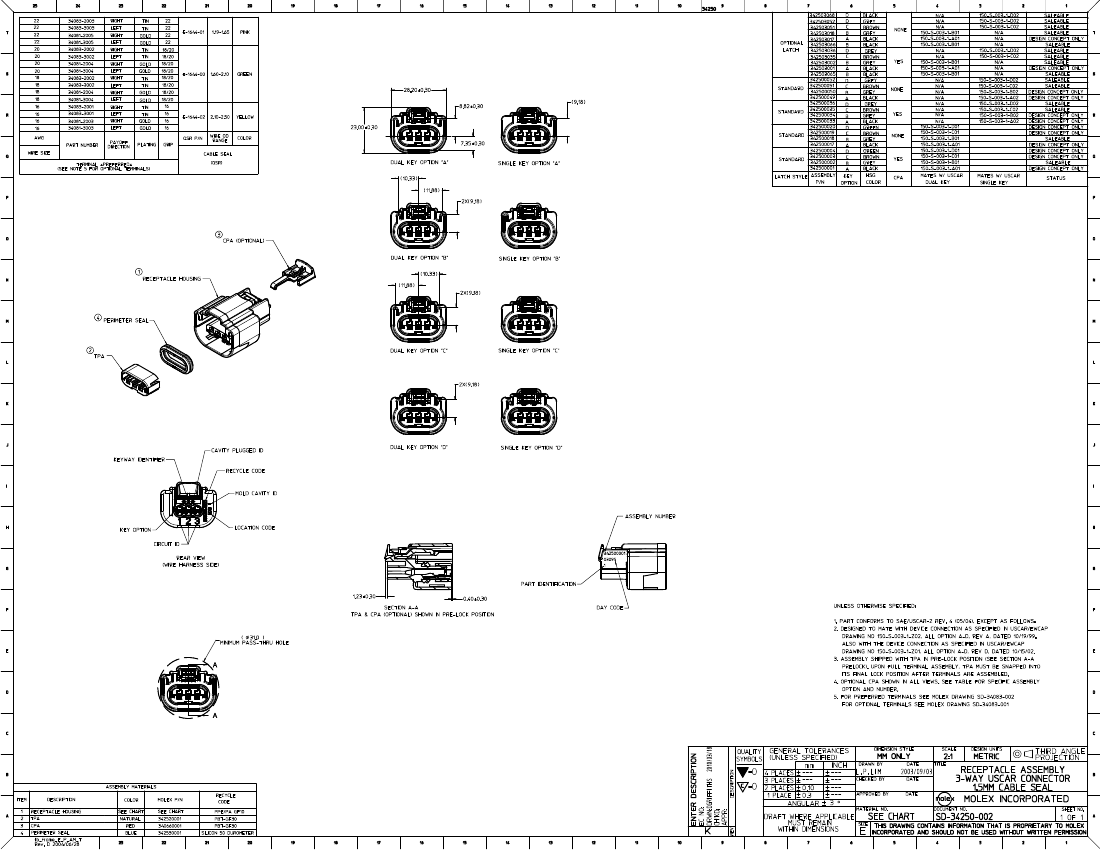

Drawing (PDF)

Product Specification PS-34250-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Comments

More Detailed Tech Information

Overview

Product Name

Crimp Housings

34250

No Connector Position Assurance (CPA), Dual Key

http://ewcap.uscarteams.org

mx150_sealed_connector_system

MX150™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Green

Female

Yes

Polyester, Polyphenylene Ether Alloy

Bag

0.177 In

4.50 mm

0.177 In

4.50 mm

Yes

-40°C to +125°C

Search Parts in this Series

34250Series

Mates With

Direct Connect only

Use With

34083 Tin (Sn) Cable Seal Female Terminal,

34081 Gold (Au) Cable Seal Female

Terminal

Electrical

Current - Maximum per Contact

15A

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

AS-34250-100

PK-31300-068

PS-34250-000

SD-34250-002

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
