35109-2010

Description
20 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP
CategoryThe connector    The connector
File Size77KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

35109-2010 Online Shopping

Suppliers Part Number Price MOQ In stock
35109-2010 - - View Buy Now

35109-2010 Overview

20 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP

35109-2010 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.685 inch
subject depth0.827 inch
body length2.071 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON CU
Contact completed and terminatedTIN OVER COPPER
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance10 mΩ
Dielectric withstand voltage1500VAC V
Durability30 Cycles
maximum insertion force8.896 N
Minimum insulation diameter0.094 inch
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialNYLON
Manufacturer's serial number35109
Plug contact pitch0.197 inch
Match contact row spacing0.25 inch
Installation option 1LATCH
Installation option 2LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts20
Maximum wire diameter18 AWG
Minimum wire diameter24 AWG
Evacuation force-minimum value1.2232 N
Base Number Matches1

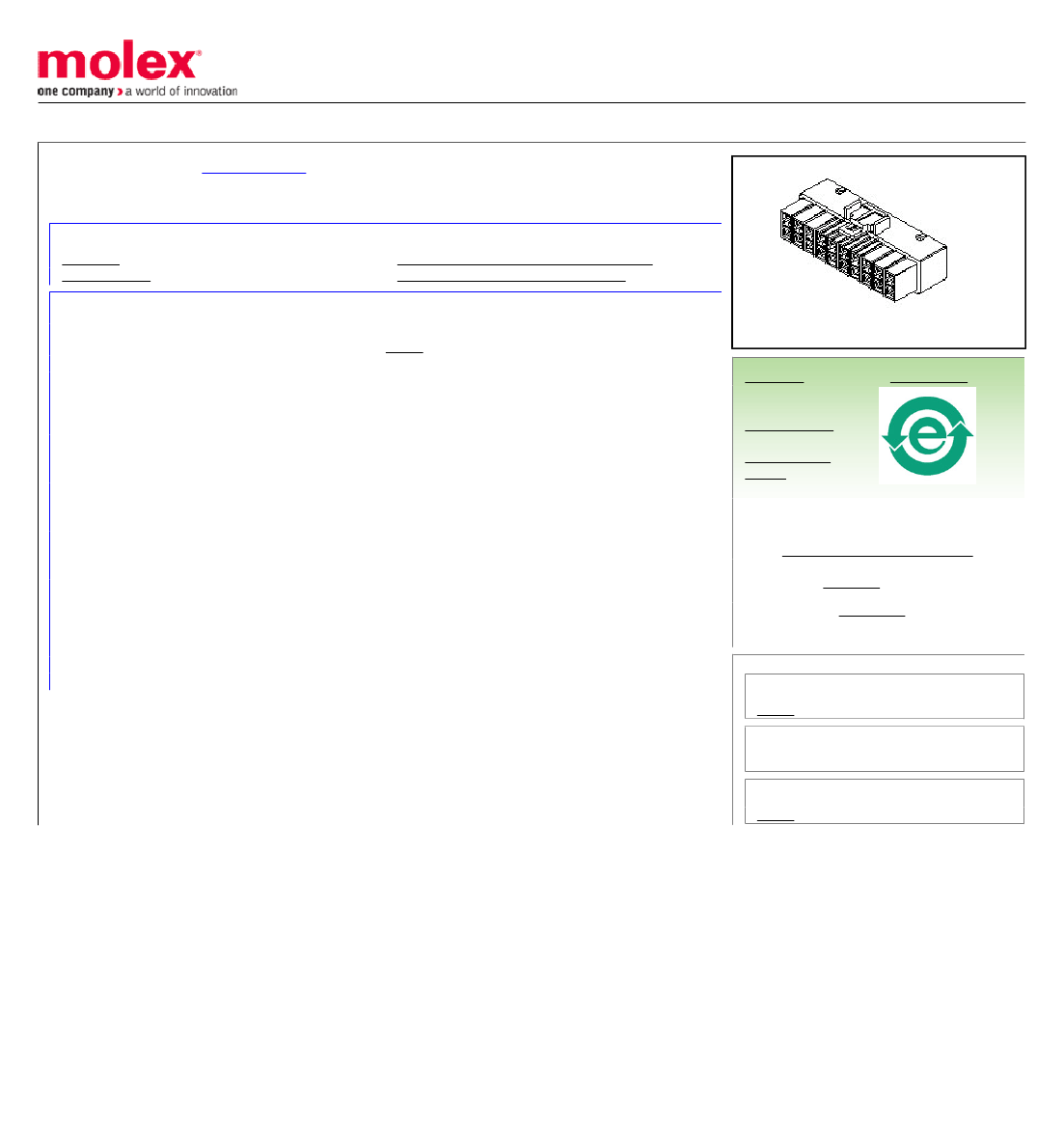

This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model

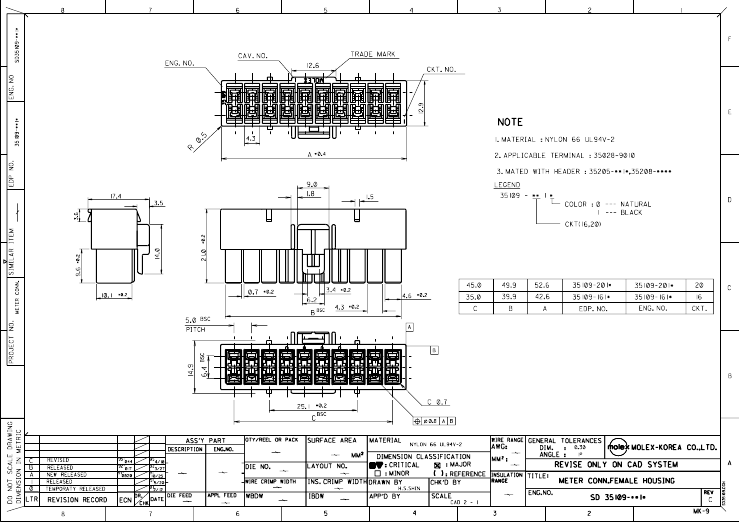

Drawing (PDF)
0351092010
Active
1.78mm (.070") Tab Wire-to-Board Female Housing, 5.00mm (.197") Pitch, 20 Circuits
Product Specification PS-35028-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Product Name
Crimp Housings
35109
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Series
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
20
Natural
Female
No
Nylon
2
Bag
No
0.197 In
5.00 mm
No
-40°C to +105°C
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-35028-001
SD-35109-**10
Search Parts in this Series
35109Series
Mates With
35205|35208
Use With
35028
This document was generated on 04/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
