J-685-38X Overview

InsulKrimp™ Ring Tongue Terminal for 2/0 AWG Wire

J-685-38X Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Manufacturer's serial numberJ-685
terminal genderFEMALE
Terminal and terminal strip typesRING TERMINAL
Wire gauge0 AWG

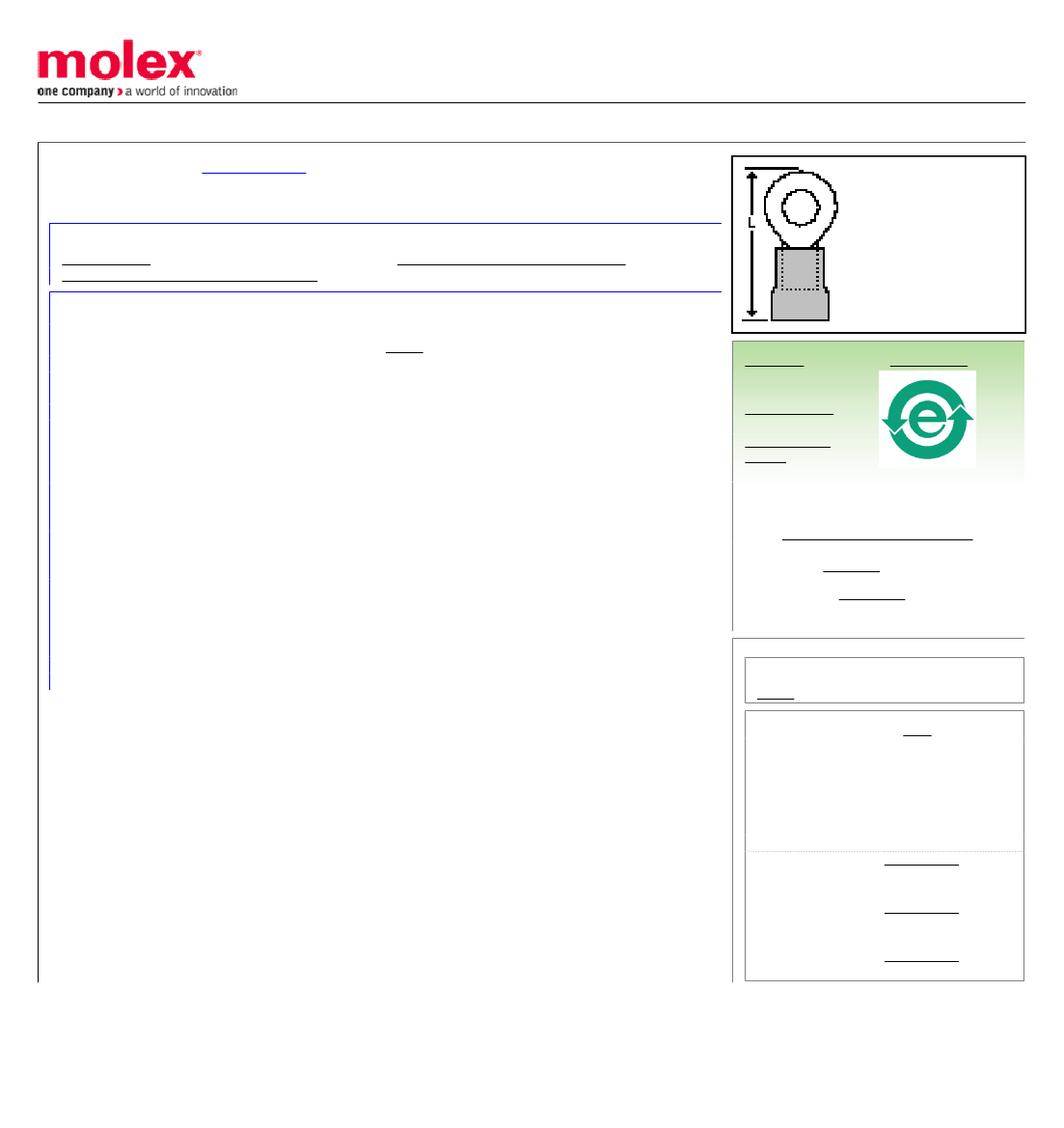

This document was generated on 03/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190710311
Active
InsulKrimp™ Ring Tongue Terminal for 2/0 AWG Wire
Documents:
Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19071
Yes
N/A
InsulKrimp™
Ring
Series image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Color - Resin
Insulation
Material - Plating Mating
Packaging Type
Stud Size
Wire Insulation Diameter
Wire Size AWG
Closed
Natural
PVC
Tin
Bag
3/8" (M9)
18.40mm (.725") max.
2/0
Material Info
Old Part Number
J-685-38X
Reference - Drawing Numbers
Product Specification

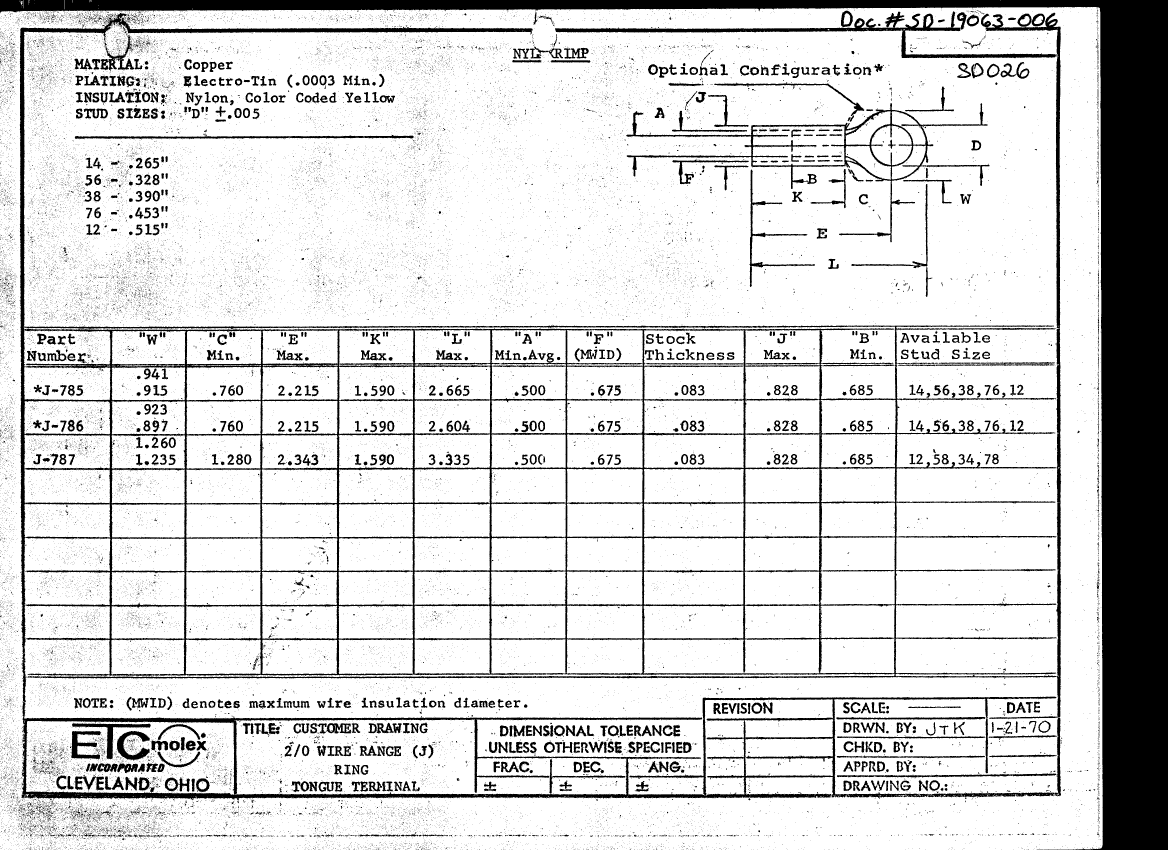

Sales Drawing
PS-19902-009
SD-19063-006
Search Parts in this Series
19071Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Manual Putt Pump 0192860117
Hydraulic System,
Die set required
Die Set (large) for
0192890025
the HHLS Hydralic
Crimper
Putt Pump Dieless 0192860065
Head System
This document was generated on 03/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
