33482-0603 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 33482-0603

33482-0603: Description6 CONTACT(S), MALE, COMBINATION LINE CONNECTOR; CategoryThe connector The connector; File Size248KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

33482-0603 Overview

6 CONTACT(S), MALE, COMBINATION LINE CONNECTOR

33482-0603 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	POLARIZED
body width	0.871 inch
body length	0.746 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	BLADE PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BROWN
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.138 inch
Plug information	33472-061
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	22 A
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE/SYNDIOTACTIC POLYSTYRENE
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

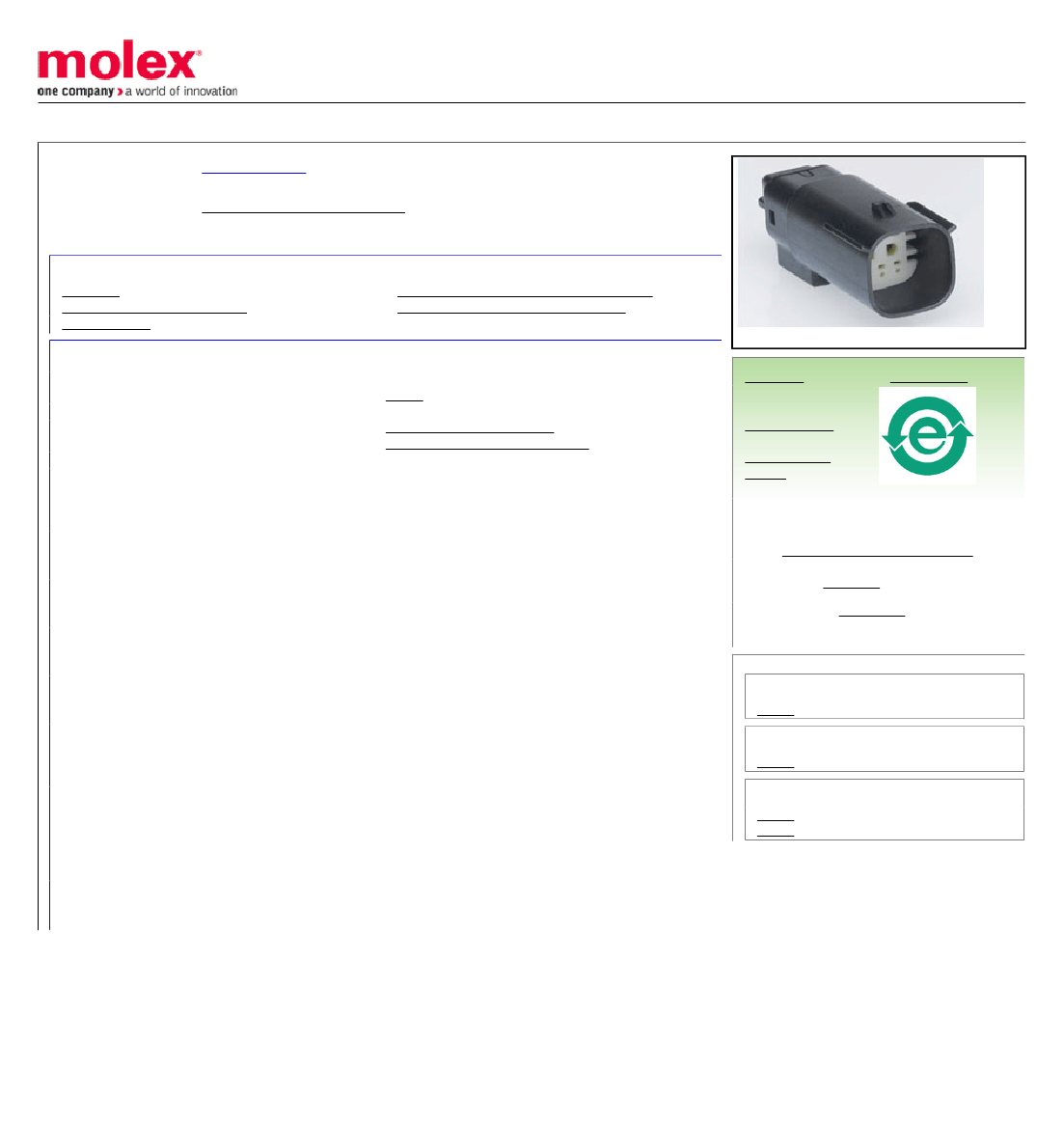

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0334820603

Active

mx150_sealed_connector_system

3.50mm (.138") Pitch MX150™ Sealed Male Connector, Dual Row, 6 Circuits,

Polarization C, without Connector Position Assurance, Brown

Documents:

3D Model

Application Specification (PDF)

Drawing (PDF)

Product Specification PS-33472-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

General

Product Family

Series

Comments

More Detailed Tech Information

Overview

Product Name

Crimp Housings

33482

No Connector Position Assurance (CPA)

http://ewcap.uscarteams.org

mx150_sealed_connector_system

MX150™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Black, Brown, Natural

Male

Yes

Modified Polystyrene Alloy

Bag

0.138 In

3.50 mm

Yes

-40°C to +125°C

Search Parts in this Series

33482Series

Mates With

33472 Female Dual Row Sealed Connector

Use With

33000 MX150™ Tin (Sn) Male Terminal,

33011 Gold (Au) Male Terminal

Electrical

Current - Maximum per Contact

22A

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

AS-33472-100

PK-30907-811, PK-31300-635

PS-33472-000

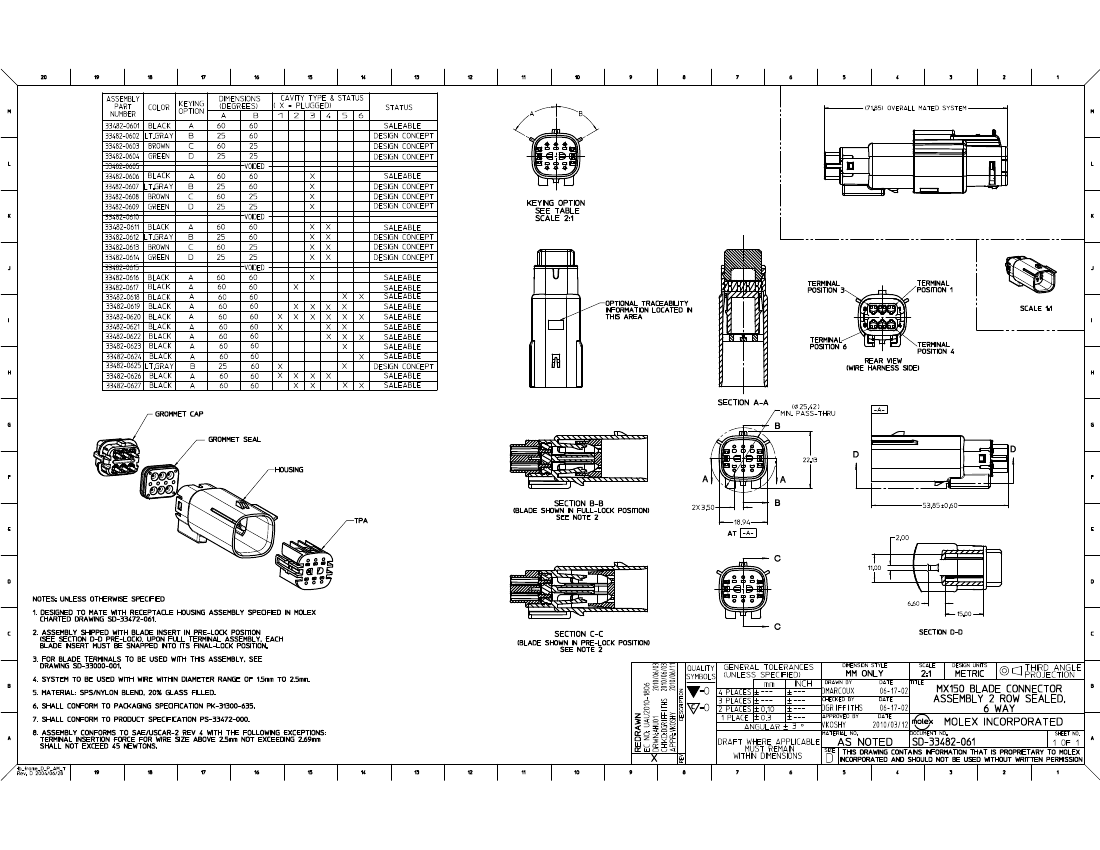

SD-33482-061

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

33482-0603 Related Products

	33482-0603
Description	6 CONTACT(S), MALE, COMBINATION LINE CONNECTOR
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	POLARIZED
body width	0.871 inch
body length	0.746 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	BLADE PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BROWN
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.138 inch
Plug information	33472-061
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	22 A
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE/SYNDIOTACTIC POLYSTYRENE
Total number of contacts	6
Base Number Matches	1
