35210-1110 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35210-1110

35210-1110: Description11 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size76KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35210-1110 Overview

11 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

35210-1110 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	35210
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0352101110

Active

2.50mm (.098") Pitch KK® Board-to-Board Receptacle, Vertical, Mates With 3022-NB,

11 Circuits

Documents:

3D Model

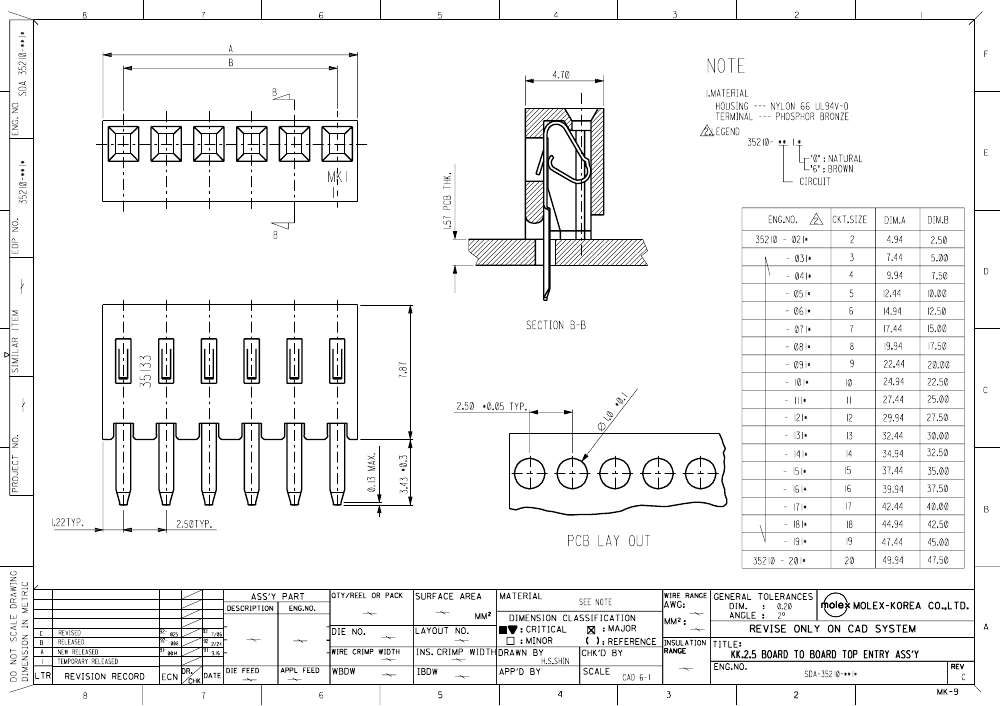

Drawing (PDF)

Product Specification PS-3022-NB-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

35210

Board-to-Board

KK®

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Phosphor Bronze

Tin

Nylon

Vertical

None

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

-40°C to +105°C

Through Hole

Search Parts in this Series

35210Series

Mates With

3022-NB

Electrical

Current - Maximum per Contact

Grounding to PCB

Voltage - Maximum

250V

Material Info

Reference - Drawing Numbers

35210-1110 Related Products

	35210-1110	0352101110
Description	11 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	11 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Recommended Resources

A delayed pull-in relay circuit diagram

Sound controlled lantern circuit

Circuit diagram of tilt sensor detecting vibration

water boiling indicator

Plastic sealing machine circuit

surround sound processor circuit
