70022-0018: Description18-18 CONTACT(S), MALE-FEMALE, PCB ADAPTER; CategoryThe connector The connector; File Size176KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

70022-0018 Overview

18-18 CONTACT(S), MALE-FEMALE, PCB ADAPTER

70022-0018 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	PANEL MOUNT
Connector type	BOARD CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	70022
Mixed contacts	NO
触点数量:侧 1	18
触点数量:侧 2	18
Number of rows loaded	2
Options	GENERAL PURPOSE
direct connection	YES
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

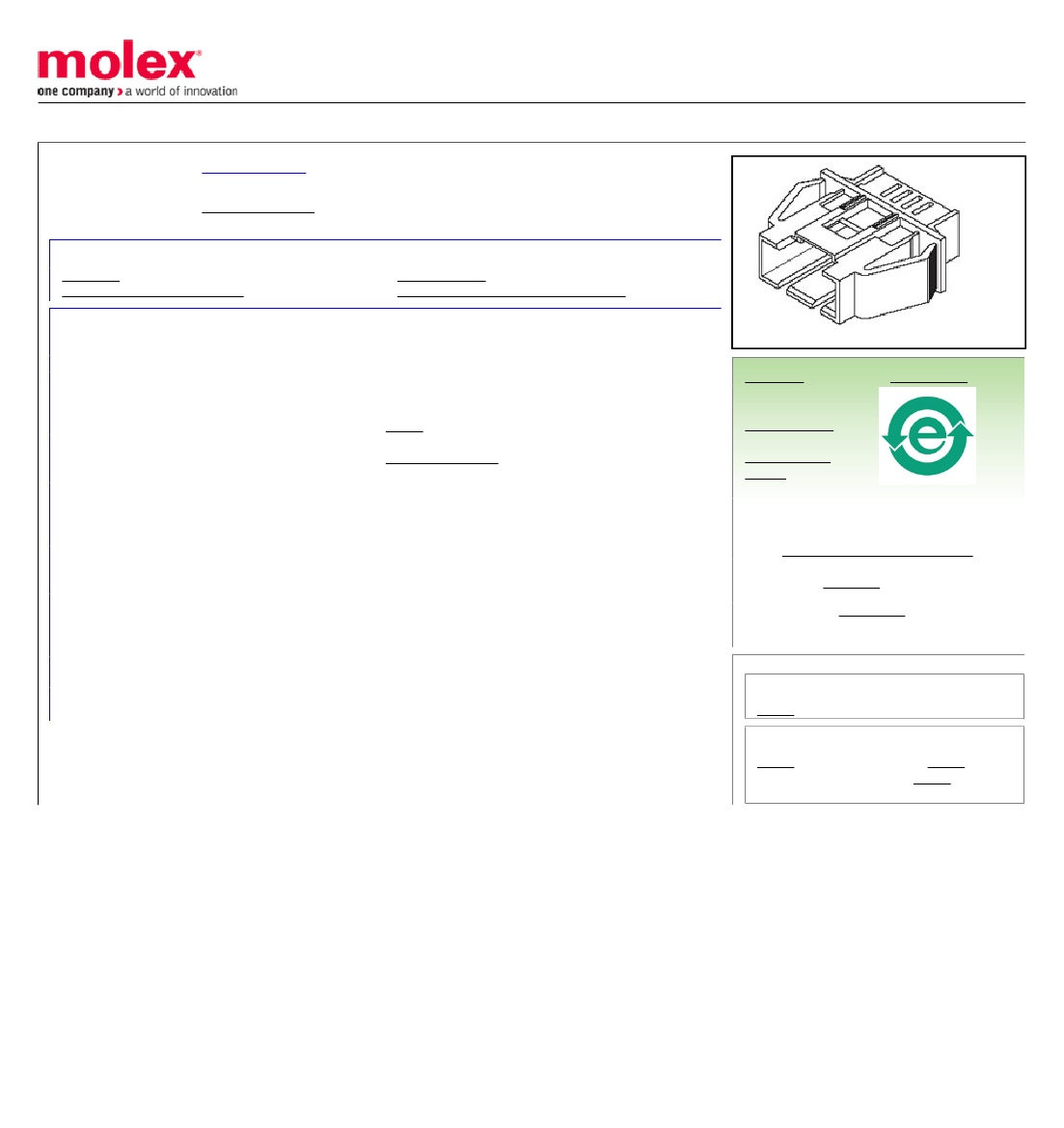

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0050650018

Active

cgrid__sl_products

2.54mm (.100") Pitch, SL™ Dual Row Wire-to-Wire Panel Mount, 18 Circuits

Documents:

3D Model

Packaging Specification (PDF)

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

UL

General

Product Family

Series

Component Type

Overview

Product Name

Accessories

70022

Branch

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Flammability

Lock to Mating Part

Material - Resin

Packaging Type

18

Black

94V-0

Yes

Polyester

Bag

Material Info

Old Part Number

70022-0018

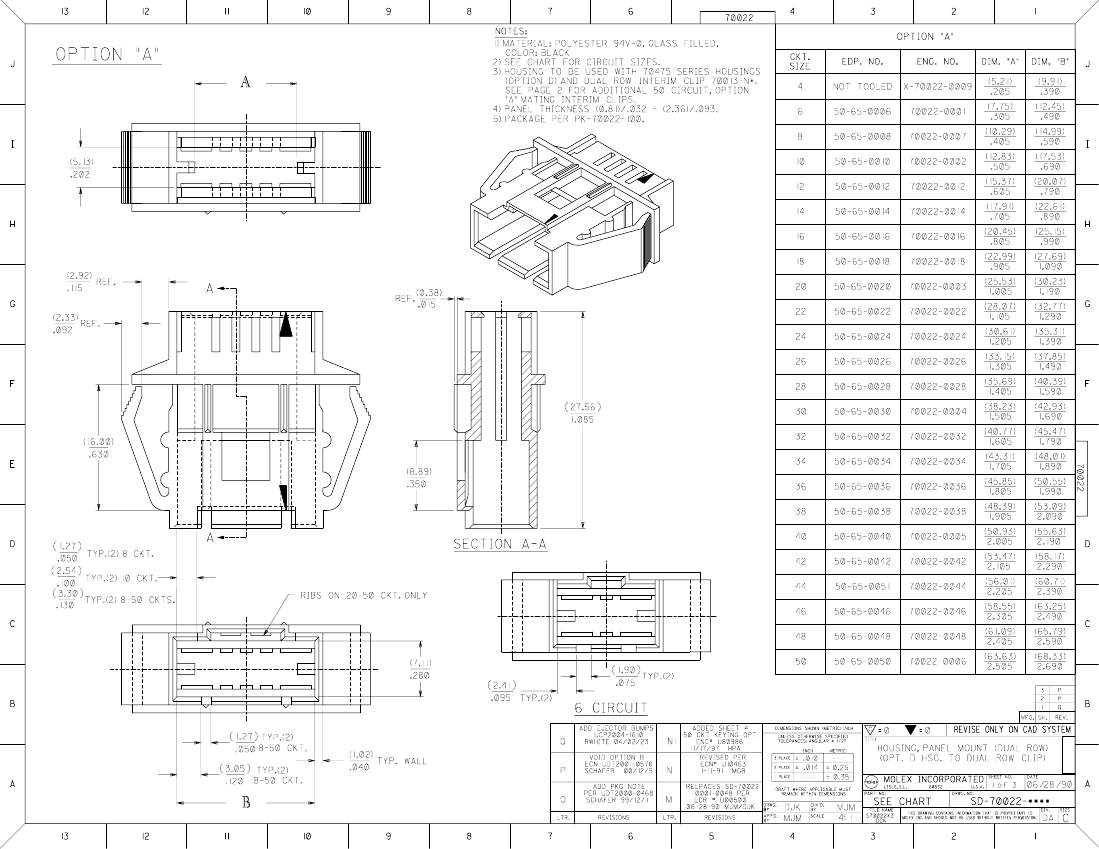

Reference - Drawing Numbers

Packaging Specification

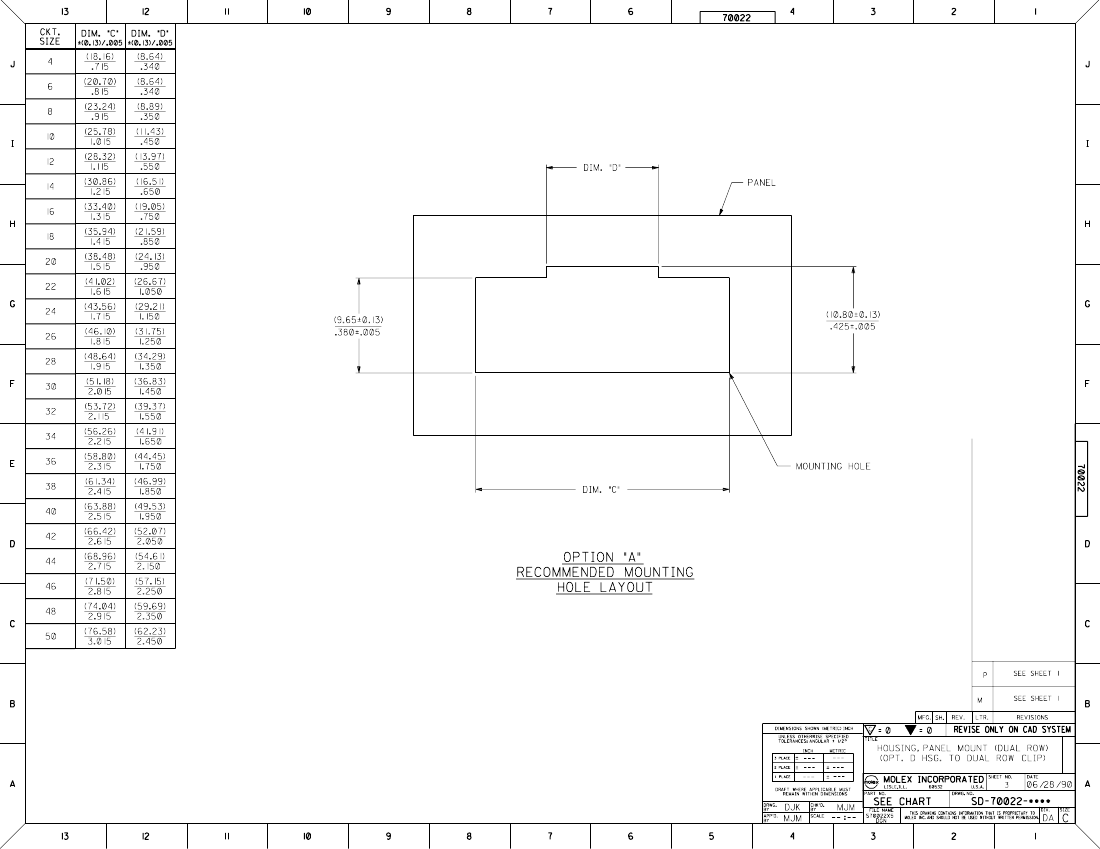

Sales Drawing

PK-70022-100

SD-70022-****

Search Parts in this Series

70022Series

Use With

70066 SL™ Crimp Housing. 70475 SL™

IDT Connector Assembly. 70431 SL™ FFC/

FPC Connector

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
