DFMC 1,5/ 8-ST-3,5-LRBD:1,X13,8 - 1715143
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

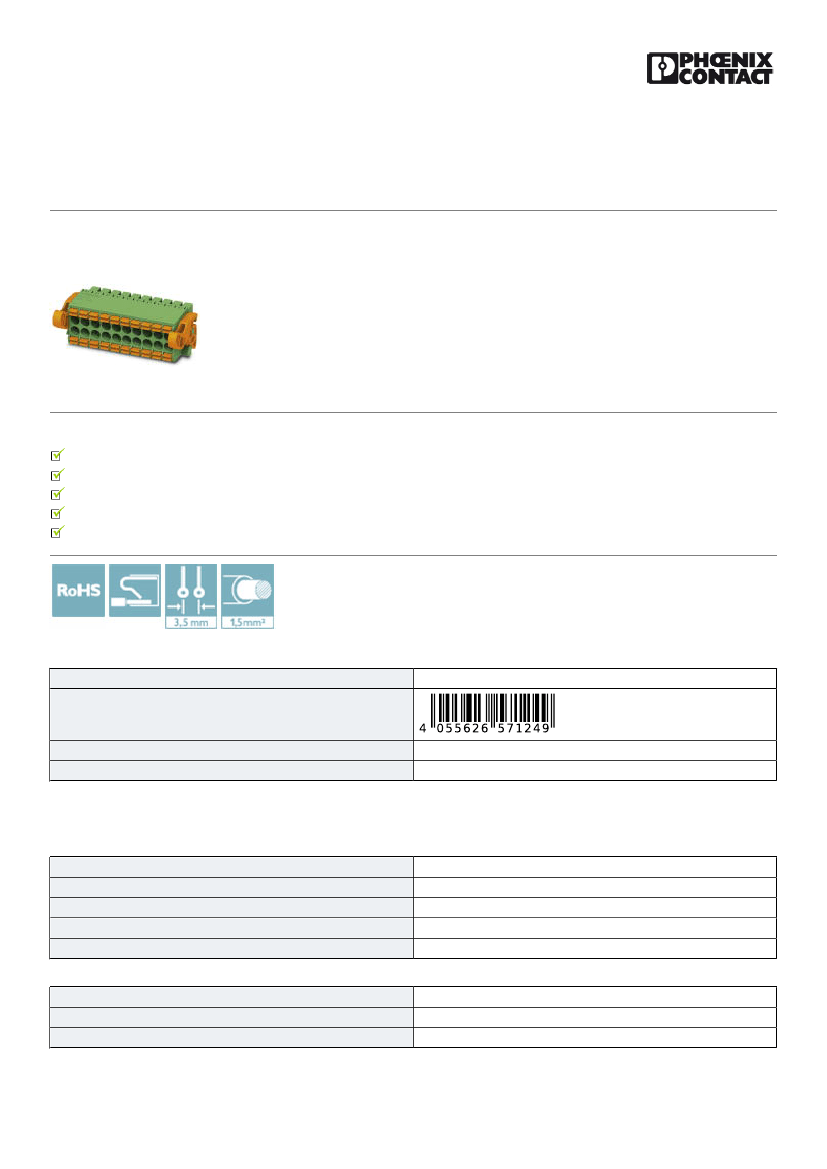

PCB connector, number of positions: 8, pitch: 3.5 mm, connection method: Push-in spring connection, color:
green, contact surface: Tin
The figure shows a 10-pos. version
with 20 contacts
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Optimized for tight installation situations: operation and conductor connection from one direction
Automatic locking and intuitive release through Lock and Release operating lever in contrasting color
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626571249
85366990
1
Technical data
Dimensions
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Dimension a
27.75 mm
35 mm
13.25 mm
3.5 mm
24.5 mm
General
Range of articles
Number of positions
Connection method
DFMC 1,5/..-ST-LR
8
Push-in spring connection
01/15/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1715143
DFMC 1,5/ 8-ST-3,5-LRBD:1,X13,8 - 1715143
Technical data
General
Nominal cross section
1.5 mm²
Specifications for ferrules
Recommended crimping pliers
Ferrules without insulating collar, according to DIN 46228‑1
1212034 CRIMPFOX 6
Cross section: 0.25 mm²; Length: 5 mm ... 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27260700
27260700
27440309
27440309
27440309
ETIM
ETIM 5.0
ETIM 6.0
EC002638
EC002638
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
01/15/2019 Page 2 / 3
https://www.phoenixcontact.com/in/products/1715143
DFMC 1,5/ 8-ST-3,5-LRBD:1,X13,8 - 1715143
Approvals
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
DE1-60359_B1_B2
160 V
8A
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
8A
0.2-1.5
40038423
EAC
D
300 V
8A
24-16
B
300 V
8A
24-16
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19920306
C
50 V
8A
24-16
