FFKDSA1/H1-5,08-12: DescriptionBarrier Strip Terminal Block, 15A, 1.5mm2, 1 Row(s), 1 Deck(s); CategoryThe connector; File Size50KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

FFKDSA1/H1-5,08-12 Overview

Barrier Strip Terminal Block, 15A, 1.5mm2, 1 Row(s), 1 Deck(s)

FFKDSA1/H1-5,08-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compliant
ECCN code	EAR99
Fastening method	SPRING LOADED
Manufacturer's serial number	FFKDSA1/H1-5,08-12
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	12
Rated current	15 A
Rated voltage	320 V
safety certificate	CUL; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	1.5 mm2
Wire gauge	16 AWG

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1932708

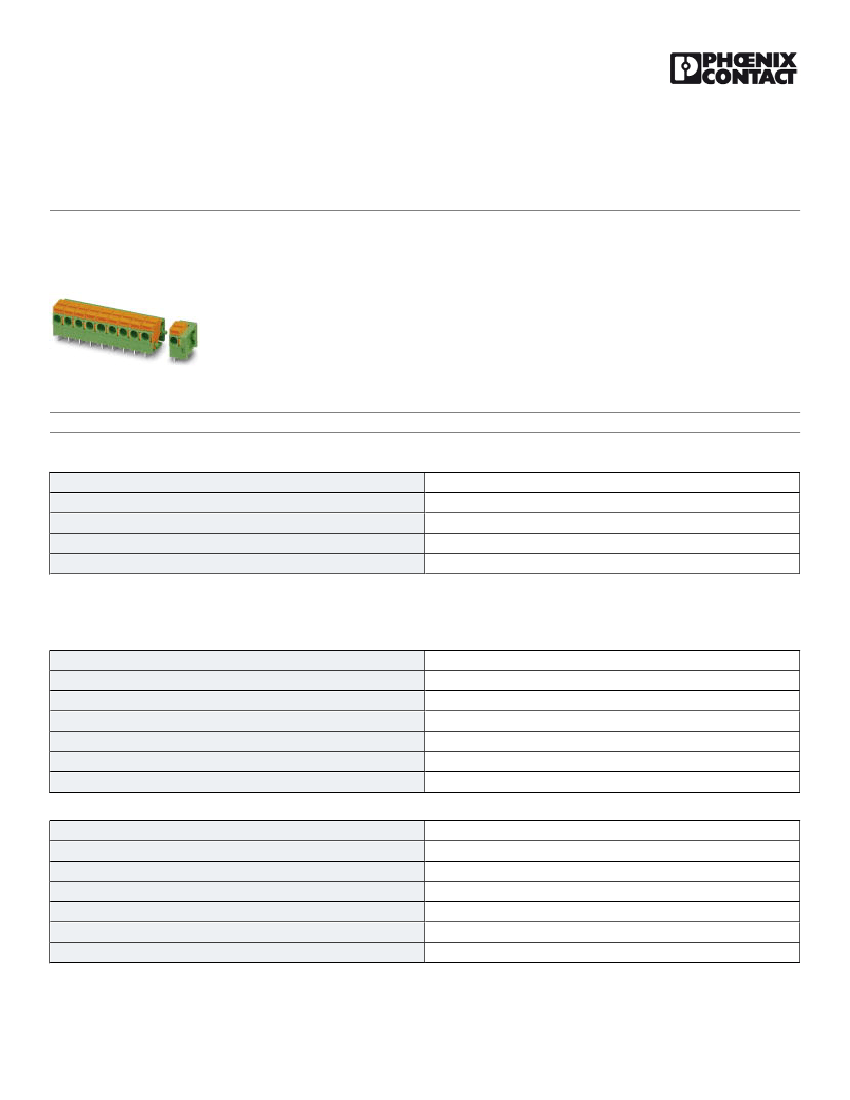

PCB terminal block - FFKDSA1/H1-5,08-12 - 1932708

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB terminal block, Nominal current: 15 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 12,

Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction:

0 °, Color: green

The illustration shows the 10-position

version

Key Commercial Data

Packing unit

Minimum order quantity

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

50 pc

12.95 g

85369010

Germany

Technical data

Dimensions

Length

Pitch

Dimension a

Constructional height

Length of the solder pin

Pin dimensions

Hole diameter

13.6 mm

5.08 mm

55.88 mm

13 mm

3.4 mm

0,5 x 1 mm

1.3 mm

General

Range of articles

Rated surge voltage (III/3)

Rated surge voltage (III/2)

Rated surge voltage (II/2)

Rated voltage (III/3)

Rated voltage (III/2)

Rated voltage (II/2)

FFKDS(A)/H1

4 kV

250 V

320 V

630 V

01/29/2016 Page 1 / 4
