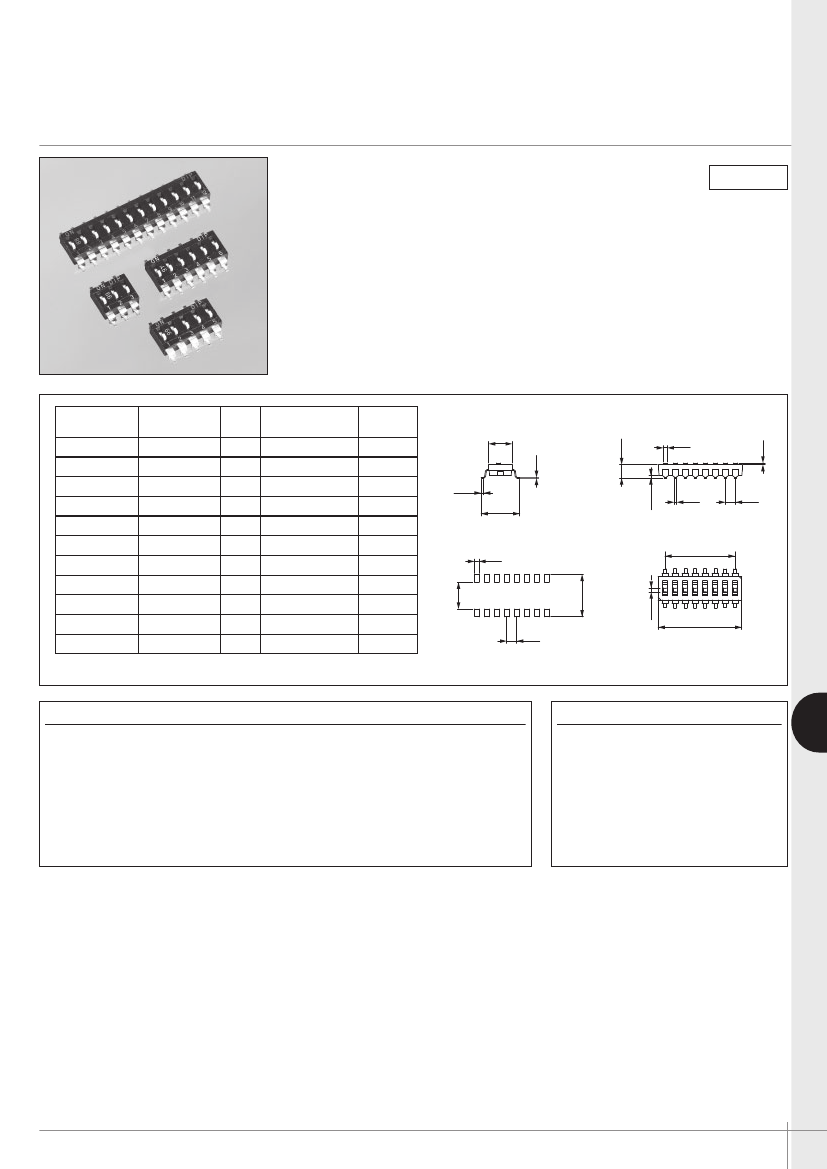

IKE series
Surface mount DIP switches
• Overall height from PCB : 3,80 mm (.149)
• End stackable
• Raised actuator
• Even and odd pole numbers
• Self-cleaning wiping contacts
• Gold plated terminals
• Process compatible - withstand IR reflow soldering
(see Technical Information, Surface Mount, end of catalogue)
UG1006-A
Models with recessed actuator and tape available on request.
Tape & reel
IKE0104101
IKE0204101
IKE0304101
IKE0404101
IKE0504101
IKE0604101
IKE0704101
IKE0804101
IKE0904101
IKE1004101
IKE1204101
IC tubes
IKE0103101
IKE0203101
IKE0303101
IKE0403101
IKE0503101
IKE0603101
IKE0703101
IKE0803101
IKE0903101
IKE1003101
IKE1203101
No
pos.
1
2
3
4
5
6
7
8
9
10
12
Dimension “A”
2,44 (.096)
4,98 (.196)
7,52 (.296)
10,06 (.316)
12,60 (.496)
15,14 (.596)
17,68 (.696)
20,22 (.796)
22,76 (.896)
25,30 (.996)
30,38 (1,196)
Qty/tube
194
95
63
47
38
31
27
6.80
(.268)
0.70
(.027)
6.00
(.236)
0.25
(.009)
3.40
(.134)
9.80
(.386)
0.60
(.024)
0.60
(.024)
2.54
(.100)
1.10
(.043)
17.78
(.700)
10.80
(.425)
23
21
18
12
ON
APEMS
1
2
3
4
5
6
7
8
1.00
(.040)
2.54
(.100)
A
Supplied with all poles in “OFF” position.
SPECIFICATIONS
MATERIALS
0.40
(.157)
1.00
(.040)
• Max. current/voltage rating : 25mA 24VDC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 100 MΩ min. at 500VDC
• Dielectric strength : 500 VAC min.
• Electrical life : 2.000 cycles
• Travel : 1 mm (.039)
• Operating temperature : -20°C to +85°C
• Storage temperature : -40°C to +85°C
Antistatic packaging - standard packaging units
•
Reels of 900 pieces
Tape meeting international standard IEC, publication 286-3 (EIA481A).
• IC tubes : see above chart for quantities.
• Case and actuator : UL94-V0
thermoplastic
• Moving contact : copper,
gold plated
• Terminals : gold plated
F
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
APEM
www.apem.com
F-15

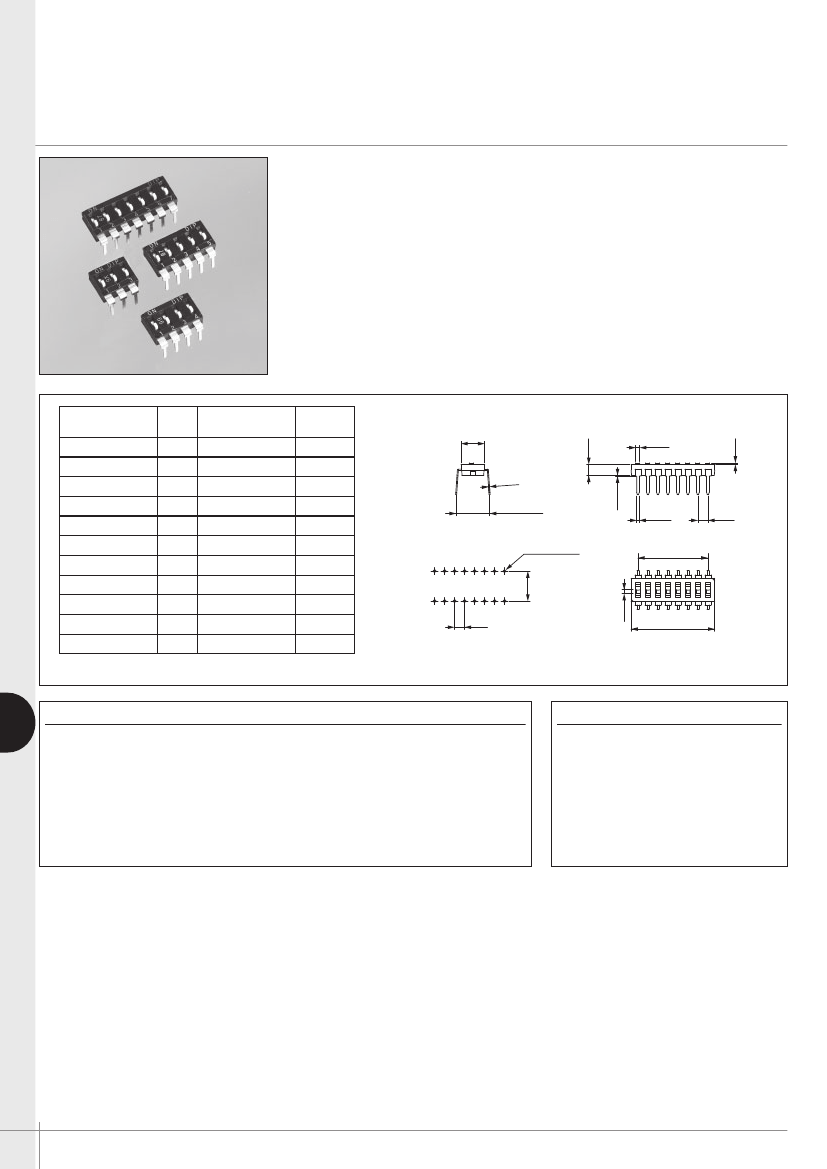

IKE series
Through-hole DIP switches
New!
• Overall height from PCB : 3,40 mm (.133)
• End stackable
• Raised actuator
• Even and odd pole numbers
• Self-cleaning wiping contacts
• Gold plated terminals
• Wave solderable
Models with recessed actuator and tape available on request.
Model No
IKE0100101
IKE0200101
IKE0300101
IKE0400101
IKE0500101
IKE0600101
IKE0700101
IKE0800101
IKE0900101
IKE1000101
IKE1200101
No
pos.
1
2
3
4
5
6
7
8
9
10
12
Dimension “A”
2,44 (.096)
4,98 (.196)
7,52 (.296)
10,06 (.316)
12,60 (.496)
15,14 (.596)
17,68 (.696)
20,22 (.796)
22,76 (.896)
25,30 (.996)
30,38 (1,196)
Qty/tube
194
95
63
47
38
31
27
23
21
18
12
6.00
(.236)
2.80
(.110)
0.25
(.009)
8.50±0.50
(.335±.020)
0.20
(.008)
0.60
(.024)
2.54
(.100)
Ø0.80±0.05
(.031±.002 DIA)
17.78
(.700)
7.62
(.300)
ON
APEMS
1
2
3
4
5
6
7
8
2.54
(.100)
1.00
(.040)
A
Supplied with all poles in “OFF” position.
SPECIFICATIONS
MATERIALS
F
• Max. current/voltage rating : 25mA 24VDC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 100 MΩ min. at 500VDC
• Dielectric strength : 500 VAC min.
• Electrical life : 2.000 cycles
• Travel : 1 mm (.039)
• Operating temperature : -20°C to +85°C
• Storage temperature : -40°C to +85°C
Antistatic packaging - standard packaging units
•
IC tubes : see above chart for quantities.
• Case and actuator : UL94-V0
thermoplastic
• Moving contact : copper,
gold plated
• Terminals : gold plated
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
F-16
www.apem.com
0.40
(.157)
1.00
(.040)
APEM
