022-56-6247 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 022-56-6247

022-56-6247: Description2.54mm; CategoryThe connector The connector; File Size129KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

022-56-6247 Overview

2.54mm

022-56-6247 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.304 inch
subject depth	0.6 inch
body length	1.199 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

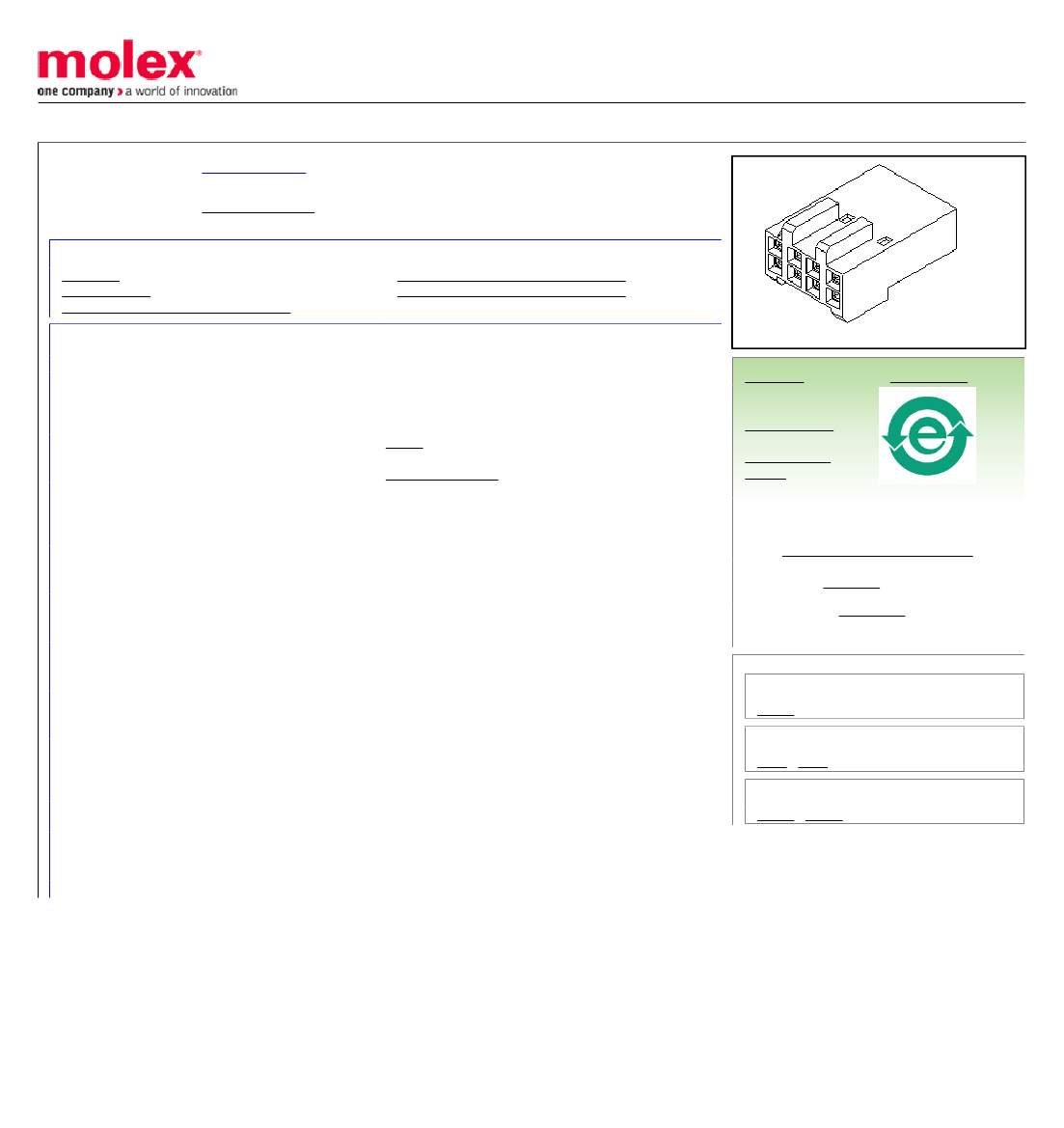

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0022566247

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Crimp Housing, Dual Row, Version F, 24 Circuits

Documents:

3D Model

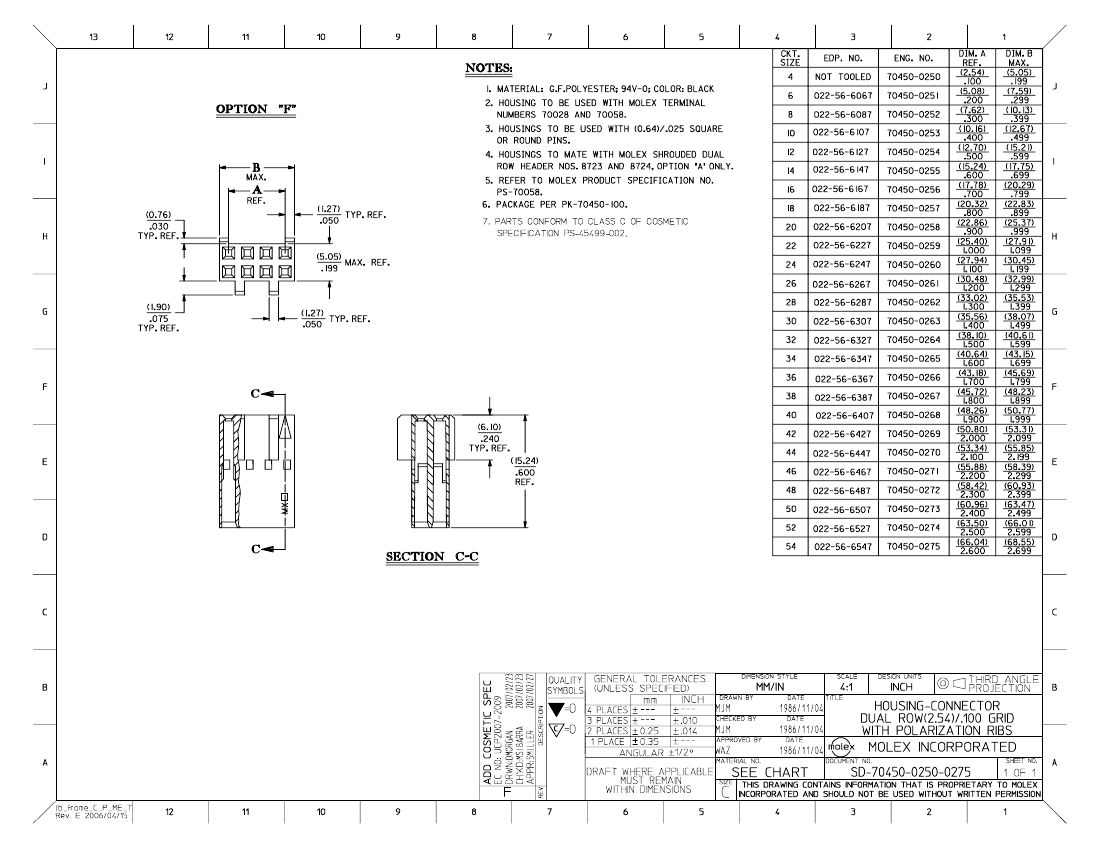

Drawing (PDF)

Product Specification PS-70058 (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

70450

Version F

cgrid__sl_products

SL™

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Black

94V-0

Female

Polyester

Bag

0.100 In

2.54 mm

-40°C to +105°C

Search Parts in this Series

70450Series

Mates With

8723 , 8724

Use With

70058 , 71851

Material Info

Old Part Number

704500260

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

PK-70450-100

PS-70058, PS-70400

SD-70450-0250-0275

TS-70058-001

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
